• Model NO.：GDMZ
• High Voltage Output 1：Increasing by 500V for Each Level, a Total of 20 L
• Transport Package：Plywood Case
• Specification：35KG
• Trademark：GOLD
• Origin：Chongqing, China
• HS Code：9030849000
• Production Capacity：500 Pieces,Month

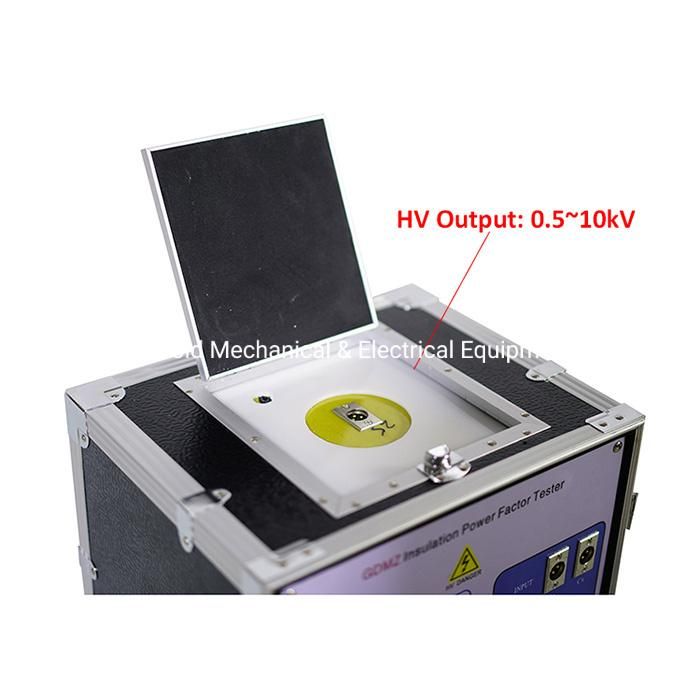

High voltage output

0.5~10kV

Increasing by 500V for each level, a total of 20 levels, capacity: 1500VA

Accuracy

tgδ: ± (reading *1.5% +0.06%)

Cx: ± (reading * 1.5% +5 PF)

Resolution

tgδ: 0.001%   Cx: 0.001pF

Measuring range

0.001% 100%;

Internal high pressure : 3PF ~60000PF/10KV,    60PF~1µF/0.5KV

External high pressure: 3PF ~1.5µF/10KV,       60PF~30µF/0.5KV



CVT Variable ratio test

Variation ratio measurement accuracy: ± reading *1%

The range of the measurement: 10~99999

Phase measurement accuracy: ±0.1°

Phase measurement range: 0~359.9°

Power supply AC 220V ± 10%   50/60 ± 1Hz

Measuring method

a.single frequency: 45(45Hz measuring),50(50Hz measuring),55(55Hz

measuring),60(60Hz measuring),65(65Hz measuring)

b.different frequency: 50D(45Hz/55Hz measure each time);

                                   60D(55Hz/65Hz measure each time);                                                                     Automatic frequency conversion

Harmonic adaptation ≤ 3%Application condition -15 ºC-50 ºC Relative humidity <80%Dimension 460 (L) * 345 (W)* 345 (H)

Weight

35 kg
