ASTM D1754 Rolling Thin Film Oven Test Apparatus for Asphalt
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.- Power Source：AC220V
- Product Name：ASTM D1754 Rolling Thin Film Oven Test Apparatus F
- Temperature of Workroom：163 Celsius
- Rotate Speed of Turn Plate：5.5 R,Min
- Test Sample Quantity：4 Pieces
- Size of Workroom：450*450*510mm
Base Info
- Model NO.：GD-0609
- Ambient Temperature：5~50 Celsius
- Temperature Control Accuracy：0.5 Celsius
- Transport Package：Wooden Case for Asphalt Thin Film Oven Tfo
- Trademark：GOLD
- Origin：China
- Production Capacity：100 Sets, Month
Description
Basic Info.
Model NO. GD-0609 Ambient Temperature 5~50 Celsius Temperature Control Accuracy 0.5 Celsius Transport Package Wooden Case for Asphalt Thin Film Oven Tfo Trademark GOLD Origin China Production Capacity 100 Sets/ MonthProduct Description

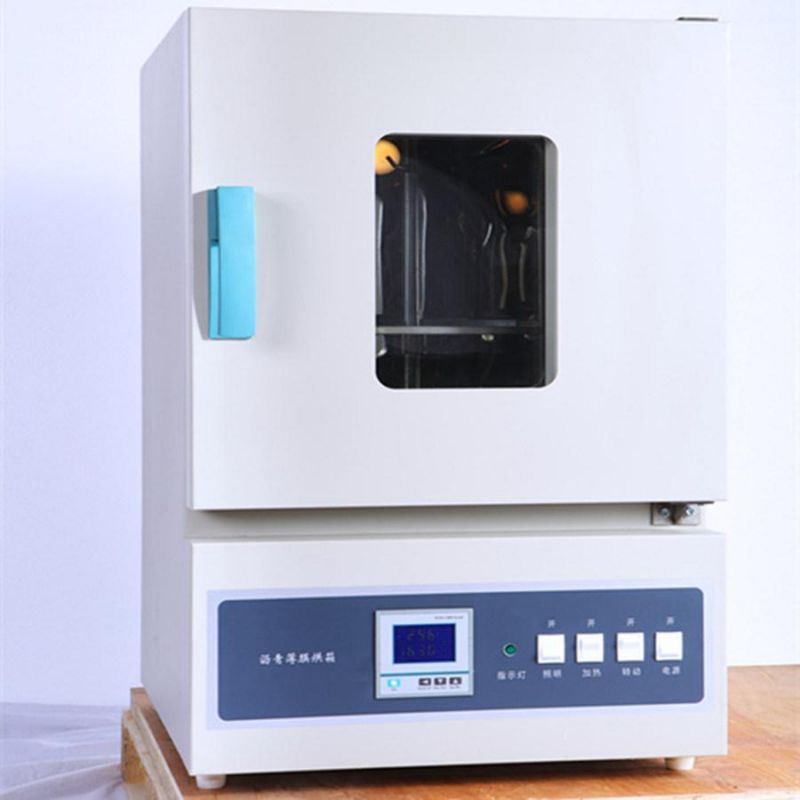

ASTM D1754 Rolling Thin Film Oven Test Apparatus for AsphaltThe asphalt thin film oven is suitable to test the quality loss after heating the road asphalt film.
There are four turn plates for placing the specimen container on in the center of chamber.
I.Summary
The thin-film oven (TFO) test simulates short-term aging by heating a film of asphalt binderin an oven for 5 hours at 163° C (325° F). The effects of heat and air are determined from changes incurred in physical properties measured before and after the oven treatment by other test procedures.
II. Main technical features
1. The outer shell is made of sheet steel. It equips a stainless steel working chamber on the top half. There is a observation window in the center. An lamp is equipped inside the chamber. Easy to observe the reading of thermometer inside the chamber during the test.
2. Heating device is equipped on the bottom of chamber. It adopts natural convection method to heat the air. The chamber can be heated uniformly by air channel on the top, bottom and back.
3. There are four turn plates for placing the specimen container on in the center of chamber. It can be rotated by a motor having a rate at 5.5RPM.
4. Intelligent temperature controller ensures the temperature being at 163ºC±0.5ºC as per standard test method.
III. Main technical specifications:
| 1 | Power supply | AC220V±10%,50HZ |
| 2 | Temperature of workroom | 163ºC±0.5ºC |
| 3 | Rotate speed of turn plate | (5.5±1)r/min |
| 4 | Test sample quantity | 4 pieces |
| 5 | Size of workroom | 450*450*510mm |
| 6 | Relative humidity | ≤85% |

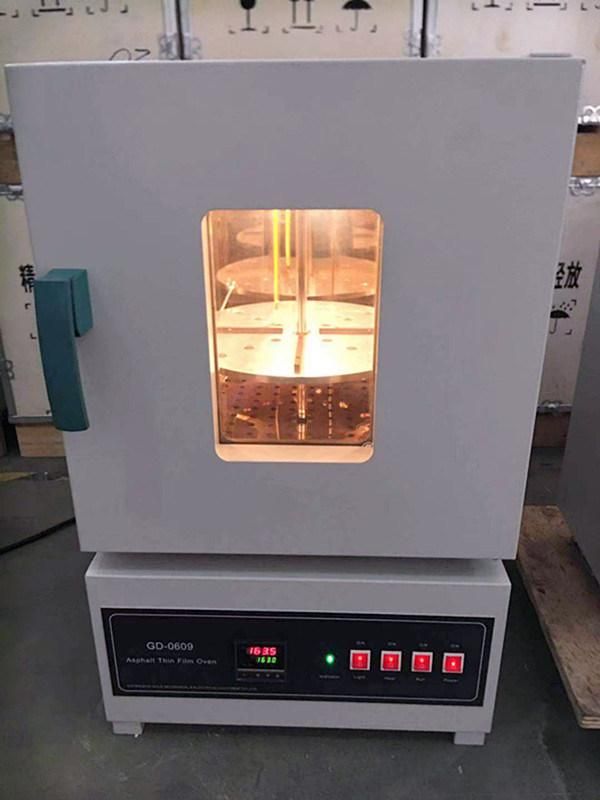

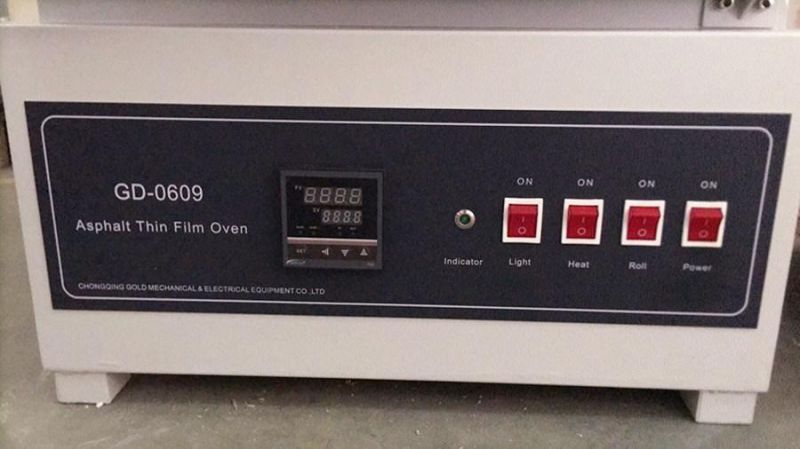

IV.Detail Images

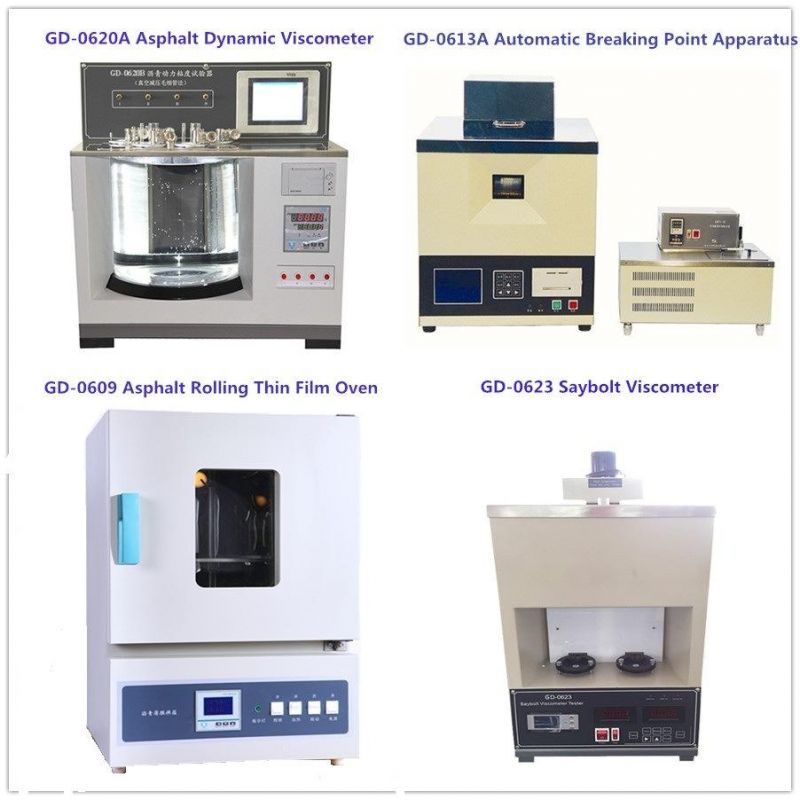

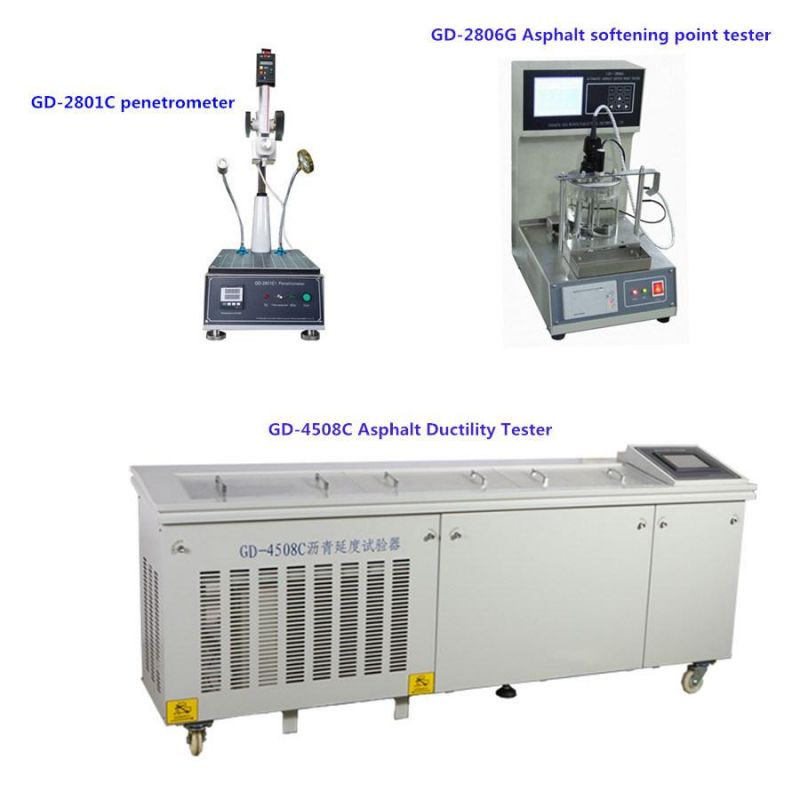

Other Testing Instrument:
