• Model NO.：GD-510F1
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Transport Package：Wooden Case
• Specification：620mm*460mm*355mm
• Trademark：GOLD
• Origin：China
• Production Capacity：200units,Month

1. Power supply: AC 220 V±10%, 50 Hz2. Temperature control of chamber

(1) Chamber I: 0 ºC, ±0.5 ºC, temperatures in two cold baths are the same.

 (2) Chamber II: 0 ºC, -17 ºC, ±0.5 ºC, temperatures in two cooling baths are

the same.

 (3) Chamber III: -17 ºC, -34 ºC, ±0.5 ºC,temperatures in two cooling baths are

 the same.

 (4) Chamber IV: Ambient to -70 ºC, ±0.5 ºC, temperatures in two cooling baths

are the same

3. Refrigeration system: a new type refrigeration compressor.4. Ambient temperature: ≤30 ºC5. Relative humidity: ≤85%6. Maximum power consumption: 1700 W

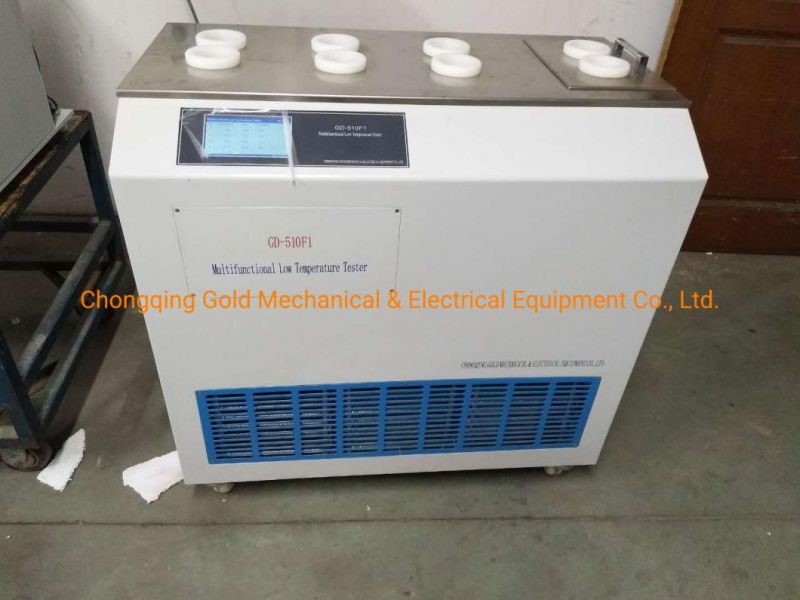

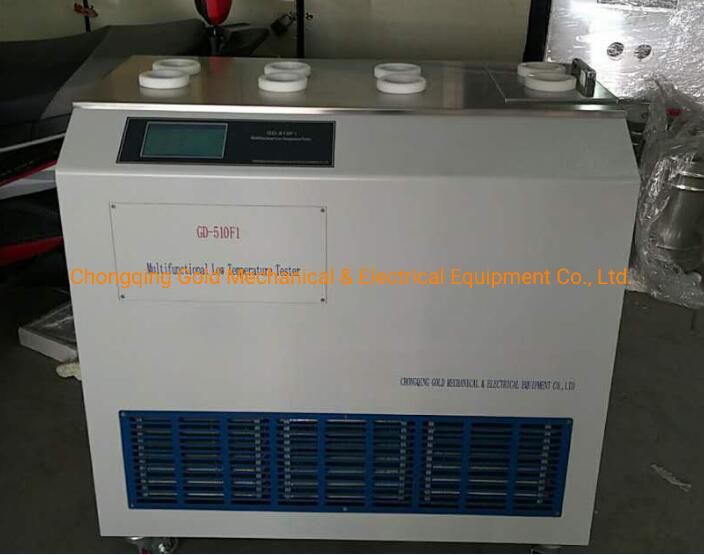

I. Main technical features



1. It is a multifunctional instrument which can be used to determine pour point, cloud point, solidifying point and cold filter plugging point of petroleum products.



2. Floor model. It is equipped with four-place wheels at bottom. Convenient to move.



3. Four chambers. Each chamber has two cooling baths. The temperature of the two baths in the one chamber are the same.The minimum

temperature can reach -70ºC. The temperature control precision is ±0.5ºC.



4. It adopts special technology to make it no need to use cooling liquid in the chambers. The cooling speed is rapid. Easy to use and high efficiency.



5. It is equipped with LCD screen. The control panel is easy to operate.





astm d97 pour point tester Low temperature tester series



ParameterGD-510-1GD-510GGD-510DGD-510F1StandardsASTM D852ASTM D852ASTM D97,ASTM D2500ASTM D97,ASTM D2500Test Parameterssolidifying pointsolidifying pointpour point and cloud point pour point, cloud point, solidifying point and cold filter plugging point Full scaleRoom temp.~-30ºCAmbient to -70ºC (1) Chamber I: Ambient to -51 ºC, ±1 ºC, temperatures of two cooling baths the same.
(2) Chamber II: Ambient to -70 ºC, ±1 ºC, temperatures of two cooling baths the same. (1) Chamber I: 0 ºC, ±0.5 ºC, temperatures in two cold baths are the same.
  (2) Chamber II: 0 ºC, -17 ºC, ±0.5 ºC, temperatures in two cooling baths are the same.
  (3) Chamber III: -17 ºC, -34 ºC, ±0.5 ºC,temperatures in two cooling baths are the same.
  (4) Chamber IV: Ambient to -70 ºC, ±0.5 ºC, temperatures in two cooling baths are the sameTemperature controlling accuracy ±0.5ºC±0.5ºC ±1ºC ±0.5ºCStructure Two baths in one chamberTwo test baths in one chamberEight test baths in 4 chamberEight test baths in 4 chambe

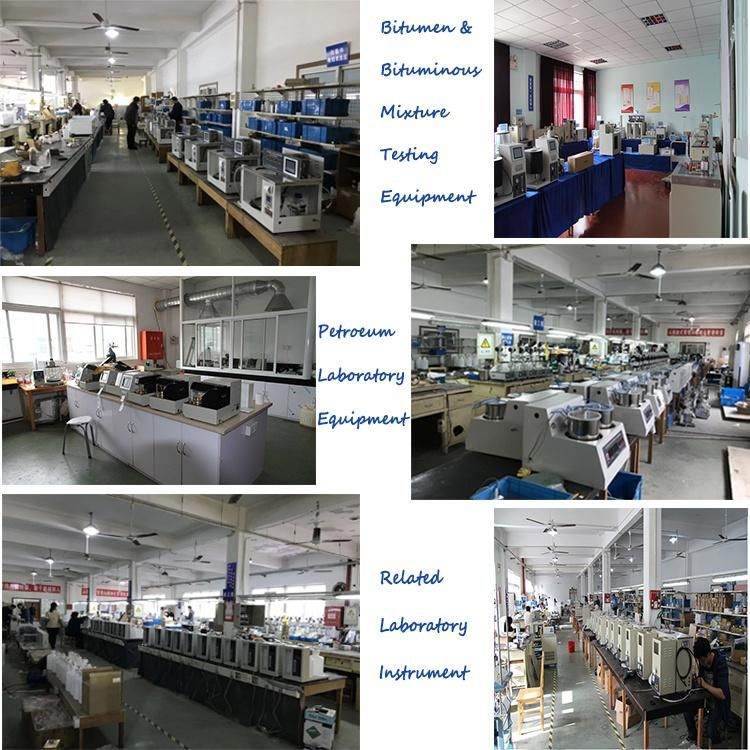

Workshop

Chongqing Gold Mechanical&Electrical Equipment Co.,Ltd is a professional manufacturer of Petroleum Products test kits and

electrical testing equipment in China.Our products are sold to most countries in the world and they are highly popular because our good
quality and after-sale service.



At present, there are more than 150 employees, of whom more than 70% are technical personnel with college

degree or above.With strong technical force and strong development, new products have been launched continuously.


Exhibition



We have developed sales channels in many countries such as UAE, Saudi Arabia, Iran, Malaysia, Thailand, Pakistan,

India, Germany, Belgium, USA, Mexico, Kenya, Nigeria, South Africa and other countries worldwide. And we have

gained strong advantage and high reputation in international market.

After several years' development, our products have become high intelligent and wide coverage.
And our company has become one of the leading manufacturer of petroleum testing instrument and electrical testing

instrument.

Packing

Goods are packed in veneer case, which is firm and safe for oversea shipment.
