• Model NO.：GD-H1023
• Power Source：AC220V
• ASTM D217：Measuring The Consistency of Lubricating Greases
• Grease Worker：Mechanical Grease Worker for Lubricating Greases
• Motor：Horizontal Single Phase Capacitor-Start Motor
• Speed：1400 Rpm
• Turbine Reducer：Double Shaft Reducer. Transmission Ratio: 25:1
• Counter Display：Small Plate Counter
• Engineering Stroke：67~71mm
• Warranty：1 Year
• Transport Package：Wooden Case
• Trademark：GOLD
• Origin：Chongqing of China
• HS Code：9031809090
• Production Capacity：100sets,Month

Basic Info.

Model NO. GD-H1023 Power Source AC220V ASTM D217 Measuring The Consistency of Lubricating Greases Grease Worker Mechanical Grease Worker for Lubricating Greases Motor Horizontal Single Phase Capacitor-Start Motor Speed 1400 Rpm Turbine Reducer Double Shaft Reducer. Transmission Ratio: 25:1 Counter Display Small Plate Counter Engineering Stroke 67~71mm Warranty 1 Year Transport Package Wooden Case Trademark GOLD Origin Chongqing of China HS Code 9031809090 Production Capacity 100sets/Month

Product Description

Grease Worker ASTM D217 for measuring the consistency of lubricating grease



Significance:

1. Cone penetration test results provide one measure of the consistency of Grease. With the help of the grease worker, the worked penetration results are determined. These worked penetration results are required to determine to which NLGI Consistency grade a grease belongs. Undisturbed penetration results provide means of evaluating the effect of storage conditions on grease consistency.

2. Penetration tests are performed on petroleum products to determine consistency and shear stability (lubricating greases) for design, quality control and identification purposes.

3. The Grease Worker is used  to prepare  for lubricating grease cone penetration, specified size, mass, and covers four procedures to measure the consistency of lubricating greases finish with a cone penetrometer.



Specifications:

• Motor: Horizontal single phase capacitor-start motor. Voltage : 220V; power: 370W; speed: 1400 rpm. Connect via the coupling and turbine reducer.
• Coupling: It adopts plum-shaped flexible coupling to connect the reducer and motor.
• Turbine reducer: Double shaft reducer. Transmission ratio: 25:1, a pair of eccentric gear are mounted on the turbine shaft at both ends of the reducer.
• Working unit: Installed on the engine base on both sides of the reducer, the motor is driven by the eccentric gear of the reducer through the coupling and continuously works with about 60 operations per minute.
• Counter display: Small plate counter. When the time relay is selected, a number (time) is set arbitrarily with a ripple switch. When the digit reaches the set value, it can drive the relay to work and cut off the power of the motor.
• Engineering stroke: 67~71mm, the diameter of each hole on the orifice is Φ6.35mm.

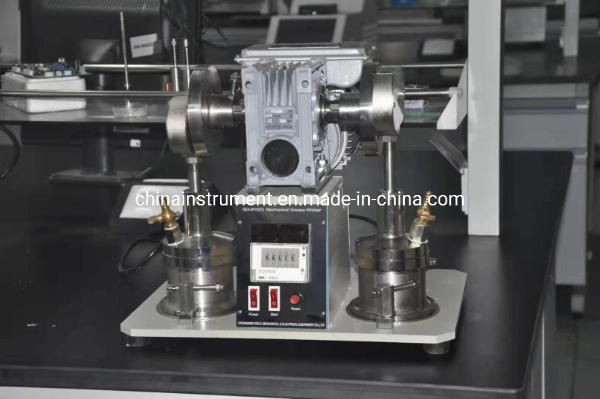

Picture of Grease Worker ASTM D217:
