• Model NO.：DAPRES-III
• HS Code：90248000
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. DAPRES-III HS Code 90248000 Production Capacity 100 Sets/Month

Product Description

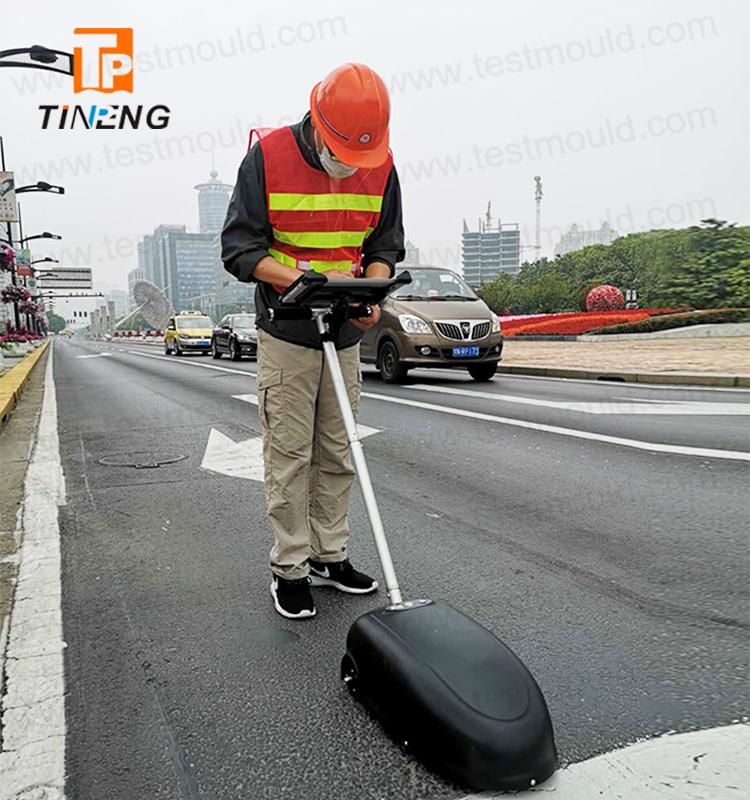

Road Surface Profilometry Device Walking Profilometer

    The Walking Profiler (WP) produces outputs from pavement profile, providing International Roughness Index (IRI), MPD texture (as an optional parameter) and distance. Differing from previous generations, the WP unit utilises a triaxial accelerometer mounted on a rolling platform, to enable measurement of longitudinal profile. This platform is separate to the carriage, which means it is less susceptible to operator input.
    Data can be collected at variable speeds up to 5km/hr and is controlled by an Android tablet. Real-time results are displayed on the screen, allowing for on-site decision making.




I.Measurable Parameters
-. International RoughnessIndex (IRI)isanindicatorusedworldwideforthecharacterizationoflongitudinalroad
roughness.ThisstudysummarizedIRIlimitvaluesfornew,reconstructedorrehabilitatedroads,forin-service
(existing)roadsandroadclassificationschemesusedaroundtheworld.
-. Flatnessstandard deviation (σ):standarddeviationoftheflatnessadoptcontinuousflatnessmetertomeasurethe
standarddeviationofunflatness,representstheflatnessoftheroadsurface.
-.Ride Number(RN) TheRideNumber(RN)isa mathematicalprocessingoflongitudinalprofilesthatallowsthe
estimationofthesubjectiveridequalityperceivedbyroadusers
-.Ride Quality Index (RQI)
II.Operation Features:
OperatorQuantity:1people
OperateSpeed:Normalwalkingspeed
CalculatelengthoftheRoad:AnyLengthMorethan5M
Roughnessindexsamplinginterval:12.5cm
SystemPower:largecapacitylithiumbattery
Operateenviromenttemperature:-40ºC ~80ºC
III. Packing details:
Dimensions: 650mm×380mm×330mm
Weight: 20Kg
