• Model NO.：GD-3536A
• Communication Port：No
• Dimension：410*360*420mm
• Reference Standard：ISO 2592, ASTM D92
• Other Function：Automatic
• Transport Package：Wooden Case for Gd-3536A
• Trademark：GOLD
• Origin：Chongqing, China
• Production Capacity：100 Sets, Month

1

Open cup flash point test appratus adopts LCD screen to display and full English man-machine interface. It can preset expected flash point temperature, sample mark number, barometric pressure and other parameters.It has menu prompt and input guide.

2

 Open cup flash point test appratus adopts simulation tracking to display the function curve of temperature rising and test time. It has the functions of English mis-operation prompt,test date,test time and other parameters.

3

Automatically calibrate the effect of atmospheric pressure to test and calculate the corrected value

4

Differential coefficient detection.Automatically correct the system deviation.

5

Automatically open the lid,detect the flash point and print test data.The test arm automatically rise up and lower down.

6

Reasonable design, safe and convenient to operate.

Specifications:


Product nameAutomatic ASTM D92 Cleveland Open Cup Flash Point Test Apparatus of EthanolPower supplyAC220(-10%~+5%)V, 50HzFlash point determinationRange:Ambient to 400ºC
Repeatability:≤8ºC
Reproducibility:≤17ºC
Accuracy:0.1ºCHeating rateCorrespond with GB/T3536 and ASTM D92Ignition modeElectric ignition.
Gas flame diameter is 3.2mm~4.8mmAmbient temperature(10~40)ºCRelative humidity≤80%Maximum power consumption400WDimension410*360*310mm

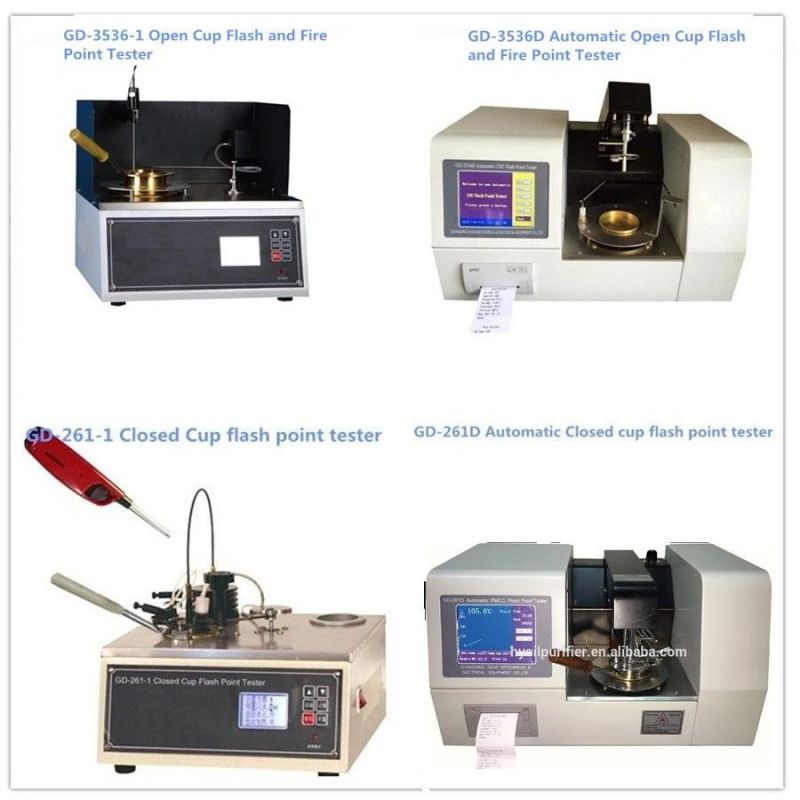

GD-3536 Series ASTM D92 CLEVELAND OPEN CUP FLASH POINT TESTER:



Parameter

GD-3536

GD-3536-1

GD-3536A

GD-3536D

Temperature range

Ambient temperature~400ºC

Ambient temperature~400ºC

Ambient temperature~400ºC

Ambient temperature~400ºC

Ignition mode

Ignite once manually

Ignite once manually

Ignite once manually

Automatic

Temperature display

Thermometer

LCD

Color LCD

Color LCD

Printing

No

No

Yes

Yes

Communication port

No

No

No

Yes

Other function

Manually adjust heating rate

Automatically control temperature and display by LCD

Automatic

Automatic, with RS232 communication port

Dimension

350*290*350mm

340*320*450mm

410*360*420mm

520*380*310mm

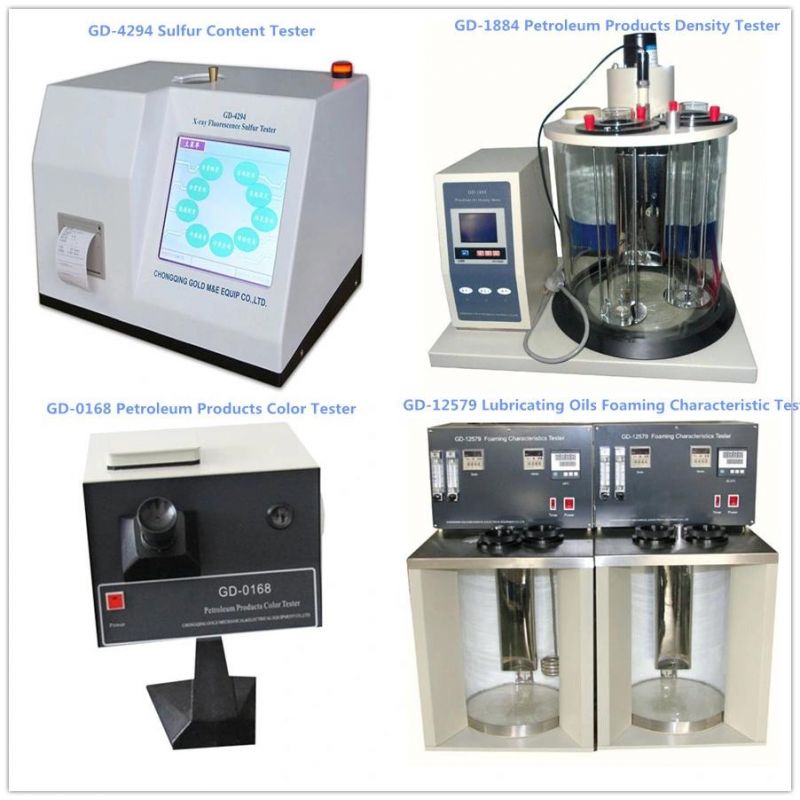

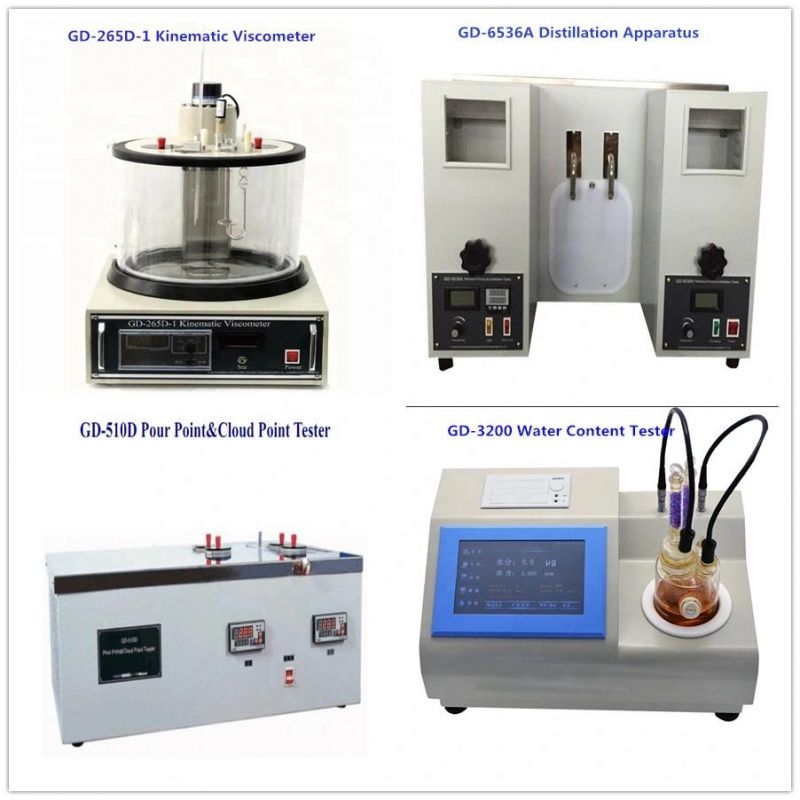

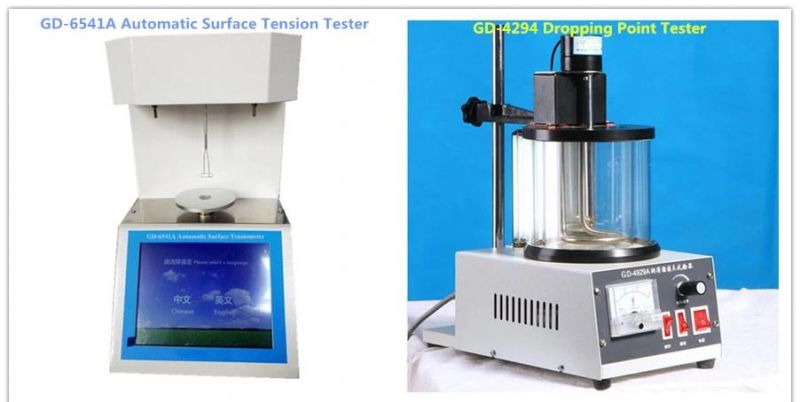

Other petroleum products testing instrument:
