• Model NO.：GD-H1070
• Repeatability of Titration Analysis：0.2%
• Transport Package：Wooden Case for Acid Value and Base Value Tester
• Trademark：GOLD
• Origin：China
• Production Capacity：100 Sets, Month

Basic Info.

Model NO. GD-H1070 Repeatability of Titration Analysis 0.2% Transport Package Wooden Case for Acid Value and Base Value Tester Trademark GOLD Origin China Production Capacity 100 Sets/ Month

Product Description

Petroleum Product Acid Value and Base Value Analyzer (potentiometric titration)



Model	GD-H1070
Applicable standard	ASTM D664; ASTM D2896
Measurement range	pH value: (0.00 to 14.00) pH; mV value: (-1800.0 to 1800.0) mV; temperature value: (-5.0 to 105.0) °C.
Resolution	pH: 0.01 pH; mV value: 0.1 mV; temperature value: 0.1 °C
Basic error of electronic unit	pH value: ±0.01pH; mV value: ±0.05% fullness; temperature value: ±0.3°C;
Burette capacity tolerance	10ml Burette: ±0.025ml; 20ml burette: ±0.035ml
Repeatability of titration analysis	0.2%
Burette resolution	10ml Burette: 1/10000; 20ml Burette: 2/10000
Electronic unit stability	±0.3 mV/3h
Control titration sensitivity	±2mV
Machine power	50W
Working power supply	AC220V 50Hz
Instrument size	300*300*350mm
Net weight	5KG

Main Feature:

1. The acid value and base value analyzer adopts new microprocessor technology, which can display relevant test methods, titration curves and measurement results in real time.
 2.The acid value and base value analyzer has a good operation interface and is easy to use. 3.The acid value and base value analyzer  has a variety of titration modes, including pre-titration, preset endpoint titration, blank titration or manual titration. 4.The  acid value and base value analyzer uses different electrodes to carry out different titration, including acid-base titration, redox titration, precipitation titration, complexometric titration, non-aqueous titration and other titration and pH measurement. 5.The acid value and base value analyzer adopts the integrated design of valve burette, which is convenient for users to replace, and reduces the mutual interference problem of different solutions with different titration timing. 6.The acid value and base value analyzer has improved the transmission system, greatly reducing the volume of the instrument and effectively reducing the noise of the instrument.  7.The titration system uses materials resistant to perchloric acid corrosion and can be used for non-aqueous titration. 8.The acid value and base value analyzer has a power-off protection function. The internal stored measurement data and set parameters will not be lost after the instrument has been shut down or abnormally powered off. 9.The acid value and base value analyzer can be connected to the PC through the USB interface and controlled by a specially developed matching titration software. The titration curve and its first and second derivatives can be displayed instantly on the computer. Convenient for editing and modification of titration mode, and statistics of results. The instrument supports the GLP specification and can store up to 200 sets of titration results.
10. The acid value and base value analyzer supports the storage of a set of titration curves.
The instrument supports firmware upgrades, allowing for functional expansion and personalization requirements.


Instrument Structure:

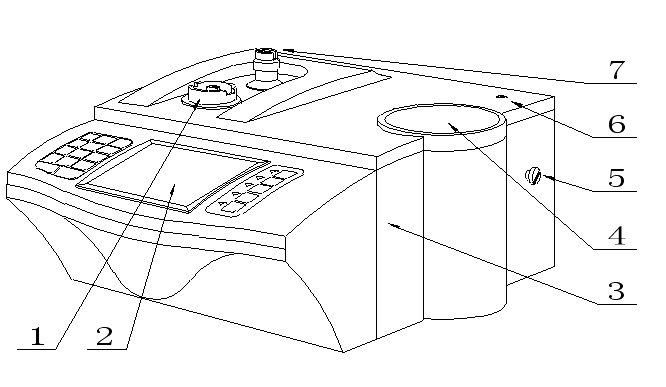

1. Front View:


(1) Burette holder          (4) Lower agitator
(2) Operating surface        (5) Electrode holder positioning screw
(3) Main unit              (6) Electrode holder fixing hole
(7) Valve steering groove

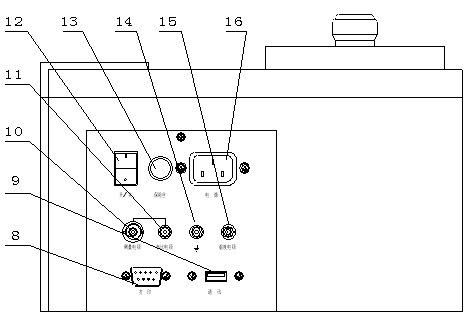

 2.Rear view

(8) printer socket               (12) switch
(9) Communication socket        (13) Fuse holder
(10) Measuring electrode socket    (14) Grounding terminal
(11) Reference electrode terminal   (15) Temperature electrode holder
(16) power socket

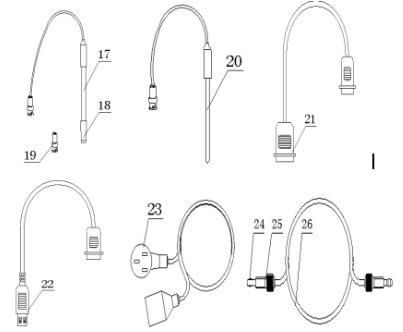

 3. Instrument accessories:

(17) pH composite electrode             (18) electrode sheath
(19) Q9 shorting plug                    (20) temperature electrode
(21) RS-232 printer connection            (22) USB communication connection
(23) International universal power cord     (24) pinch bushing (infusion tube and thread end face seal)
(25) Pinch screw (26) Infusion tube

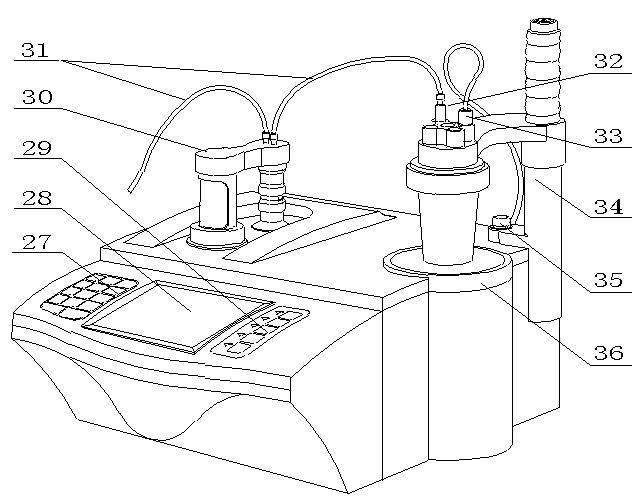

4.Instrument installation


(27) Operation keyboard      (28) Display
(28) Function keys           (30) Burettes and valves
(31) Infusion tube           (32) Capillary
(33) Sensor (electrode)       (34) Electrode holder
(35) Fixing screw            (36) Lower stirrer
