• Model NO.：GD-0702
• Weight of The Hammer：4536g+9g
• The Drop of Heavy Hammer：457mm+1.5mm
• Compaction Rate：(60+5)Time,Min
• Transport Package：Wooden Case for Automatic Marshall Impact Compacto
• Trademark：GOLD
• Origin：China
• Production Capacity：100 Sets, Month

Basic Info.

Model NO. GD-0702 Weight of The Hammer 4536g+9g The Drop of Heavy Hammer 457mm+1.5mm Compaction Rate (60+5)Time/Min Transport Package Wooden Case for Automatic Marshall Impact Compacto Trademark GOLD Origin China Production Capacity 100 Sets/ Month

Product Description

Automatic Marshall Electric Impact Compactor

Automatic Marshall impact Compactors is for Marshall stability and flow testing, density/void determinations, and specific gravity. Compactors are available in a manual or automatic models.
Our automatic marshall electric impact compactor is automatic, it is used to test the specimen size Φ101.6mm×63.5mm cylinder.

 I.Summary  This automatic marshall impact compactor is designed and made as per industrial standard ASTM D6926. It's a standard compacter to be used in Φ101.6mm×63.5mm cylinder test specimen according to the standard Marshall test,Brazilian test(splitting method).


II. Main technical features
1. Floor type structure. Composed of mechanical drive and control instrument. The mechanical drive is composed of motor, reducer and chain drive.

2. The control panel with the color LCD touch screen.

3.The compaction times and stop delay time can be preset by electric control cabinet, the times value can be selected from 0 to 999 times at will.

4.Humanized design to move the hammer by hand,It becomes more convenient,safety,effective.

5.Adopting the stationary sample structure of clamping ring,It solves the problem of mold fixing,the mold is difficult to shift and more stable,which gives more convenient and helpful to operators.

6. It equips a safe control rod. It will ensure the compaction head not lowering down when the mould being installed or taken out.


III. Main technical specifications

1	Auto./Manual	Automatic
2	Weight of the hammer	4536g+9g
3	The drop of heavy hammer	457mm+1.5mm
4	TMould	Suitable to dia.101.6mm*63.5mm
5	Compaction rate	(60+5)time/min
6	Compaction times	(0~999)times
7	Laminated wood compaction seat	457*200*200mm
8	Cement concrete seat	120*460*480mm
9	Power supply	AC220V+10%,50HZ
10	Size	540*540*1740mm
11	Net weight	About 180kg

IV. Optional accessory
1. Mold professional ejector
2.Asphalt mixture blender: GD-F02-20 automatic asphalt mixture blender(recommended)

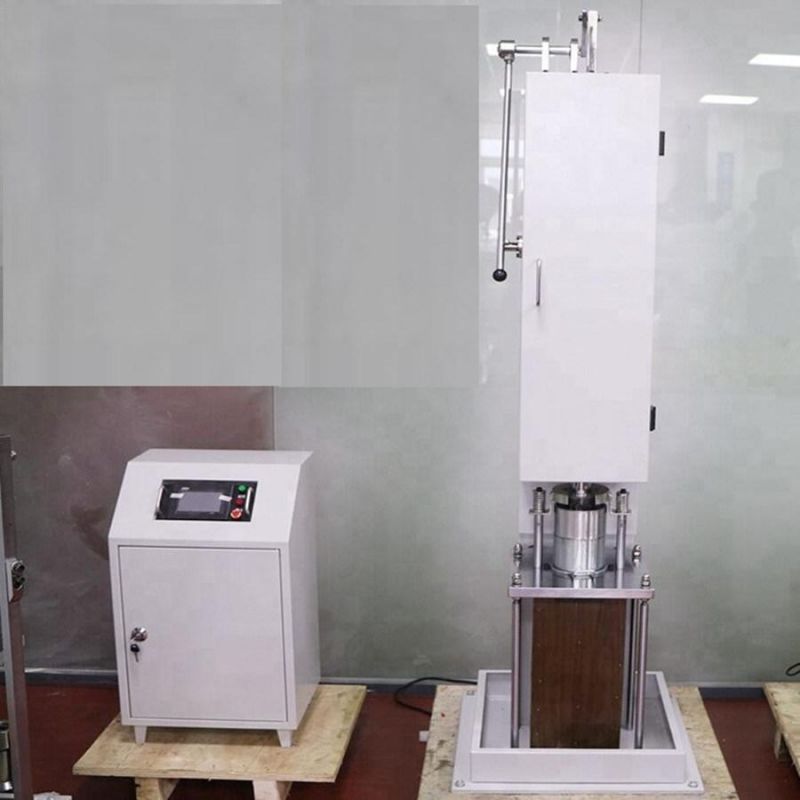

V. Detail Images



VI.Certificate:

VII. Exhabition:

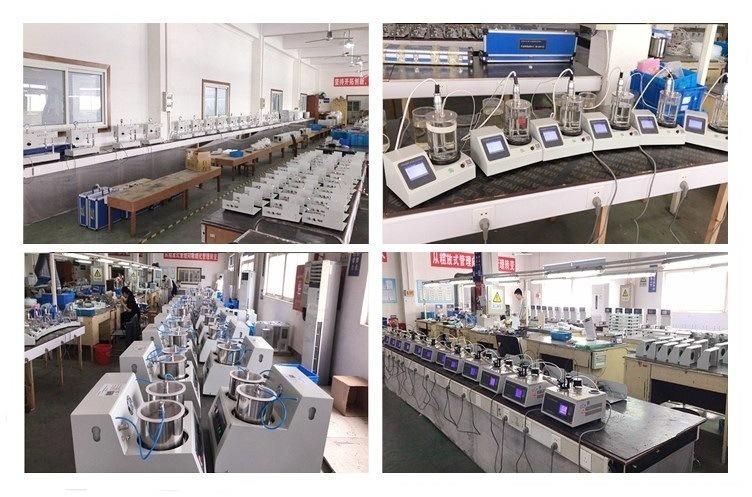

VIII. About us:
Chongqing Gold Mechanical & Electrical Equipment Co.,Ltd is a high-tech enterprise for researching, designing, developing and producing scientific and measuring instruments. With its continuous drawing of lessonas, unremitting innovation and borrowing of advanced technology from both at home and abroad, our company is now becoming a professional manufacture of oil tester,laboratory instrument,road building instrument.
