High Voltage Tester 80kv Very Low Frequency Vlf Hipot Tester for Cable
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.- Max Voltage Output:80kv
- Application:Vlf Hipot Tester for Cable
- Output Frequency:0.1Hz, 0.05Hz, 0.02Hz
- Rated Current:30mA
- Measurement Accuracy:2.5%
- Voltage Wave Form Distortion:<3%
Base Info
- Model NO.:VLF
- Leakage Current Measurement Error:<2.5%
- Power Supply:AC220V ± 10%, 50Hz,60Hz
- Transport Package:Plywood Case
- Specification:100KG
- Trademark:GOLD
- Origin:Chongqing, China
- HS Code:9030849000
- Production Capacity:500 Pieces,Month
Description

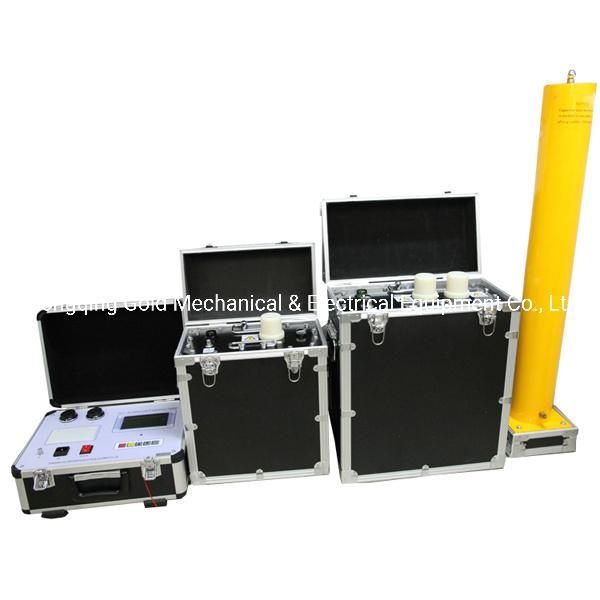

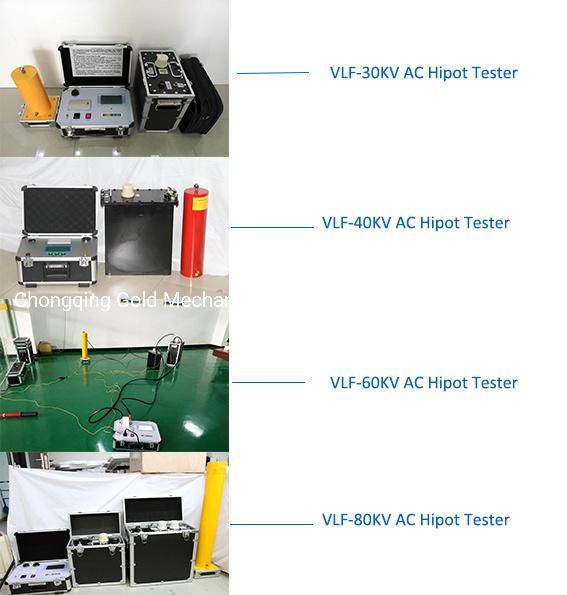

VLF-30KV
30kV/20mA
(Peak)
0.1Hz,≤0.5µF~1.1µF
5A
0.05Hz,≤0.5µF~2.2µF
0.02Hz,≤0.5µF~5.5µF
VLF-50KV
50kV/30mA
(Peak)
0.1Hz,≤0.5µF~1.1µF
7A
0.05Hz,≤0.5µF~2.2µF
0.02Hz,≤0.5µF~5.5µF
VLF-60KV
60kV/30mA
(Peak)
0.1Hz,≤0.5µF
9A
0.05Hz,≤0.5µF~1µF
0.02Hz,≤0.5µF~2.5µF
VLF-80KV
80kV/30mA
(Peak)
0.1Hz,≤0.5µF
12A
0.05Hz,≤0.5µF~1µF
0.02Hz,≤0.5µF~2.5µF
Features
Data of current, voltage and wave form can be directly sampled at high voltage side, so the data is real and accurate;
Over-voltage protection: If the output exceeds the set limit of voltage, the instrument will shut-down to protect itself; the actuation time is less than 15ms;
Over-current protection: it is high-low voltage dual protection in the design, the accurate shut-down protection can be made according to the set value at high voltage side; If the current on low voltage side exceeds the rated current, the instrument will take shut-down protection, the actuation time are both less than 15ms;
A high voltage output protective resistor is provided in the voltage boost body in the design and this eliminates the need of additional protective resistor connected outside;
As a result of high and low voltage closed-loop negative feedback control circuit, the output without capacitive rise effect;
High-voltage control part adopts innovative light control HV switching unit, control is accurate, safe and reliable;
With color man-machine interface touch control plus controls modular software operating system, precise and intuitive;
Multi-purpose, can simultaneously measure tested objects capacitance, insulation resistance, leakage current, and AC withstand voltage test;

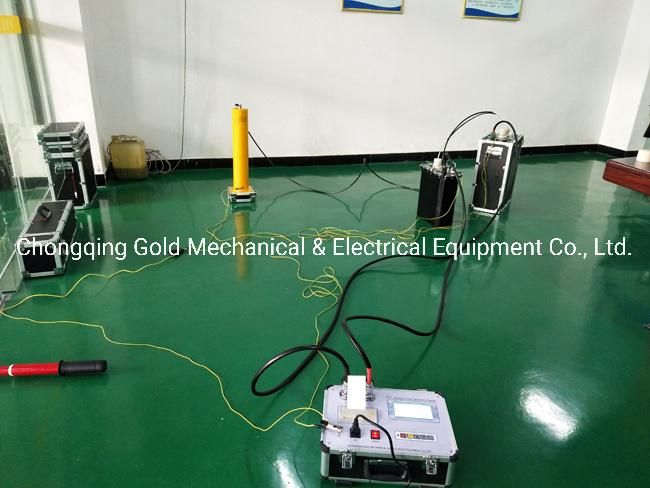

Real Pictures
