• Model NO.：GDY-1C
• Loading Method：Dynamic Load
• Display：Digital
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Top
• Transport Package：Wooden Case
• Specification：600mm*460mm*430mm
• Trademark：GOLD
• Origin：China
• Production Capacity：200unit,Month

1. Heat capacity: 5MJ/kg~40MJ/kg2.Measuring temperature range:  5ºC~40ºC3.Temperature resolution: 0.0001ºC4.RSD(Relative standard deviation):  ≤0.1%5.Test period:  ≤13mins6. Measuring range:  5MJ/kg~40MJ/kg7. Accuracy:Better than GB/T213-2008 The determination method of coal calorific value8. Pressure endurance of oxygen bomb:  20 MPa9. Relative humidity:  ≤85%10. Power supply:  AC 220V±10V, 50 Hz11. Total power consumption:  ≤0.2kW12.Outline dimension:  540mm×420mm×420mm(L×W×H)13. Net weight:  55kg



I. Main technical features

1. Adopting semiconductor refrigeration to decide the refrigerating capacity according to the calorific value,the

instrument can automatically adjust water temperature and keep water in a relative constant temperature range,

realize the continuously and long time test requirement,and make sure the test result is correct.



2. Using USB port,convenient to connect.One computer can control many sets of Oxygen Bomb Calorimeter.



3. With a electronic measuring cup itself,no need to weigh the water by manual,it can measure the water volume

automatically,the repetitive error<0.4g



4. Automatically detecting the resistance of ignition filament,automatically checking the installing condition of

ignition filament before test.



5. Standard pipeline design,vastly shortening the pipeline,and more reasonable pipeline design to ensure more

precision of test results.



6. Adopting professional discharge water ports,more convenient and fast when the  instrument drains away

water or change the water.



7. The electronic balance with communication function to share the data by the internet.



Oxygen Bomb Calorimater Selection List



ItemGDY-1AGDY-1A+GDY-1CGDY-1DStructureDesk type all in oneDesk type computerDesk type all in oneAutomaticityManualAutomaticAtomatic(Laptop)StandardGB/T213 Test Method for Calorific Value of coal GB/T384 Test Method for Calorific Value of Petroleum Products
JJG672 Oxygen Bomb Calorimeter Q/VCZK 10 XRY Series Oxygen Bomb CalorimeterApplicationDetermine the calorific value of flammability material petroleum products without water (gasoline, jet fuels, diesel oil and fuel oils, etc.), coal, coke
and paraffin, etc.Temperature
control range10ºC~ 35ºC 5ºC~40ºCAccuracy 0.001ºC Repeatability
error ≤0.2 %(C class) 0.0001ºCDisplay Digital LCD  Laptop screenTemperature
resolution (14000~15000)J/K   5MJ/kg~40MJ/kg

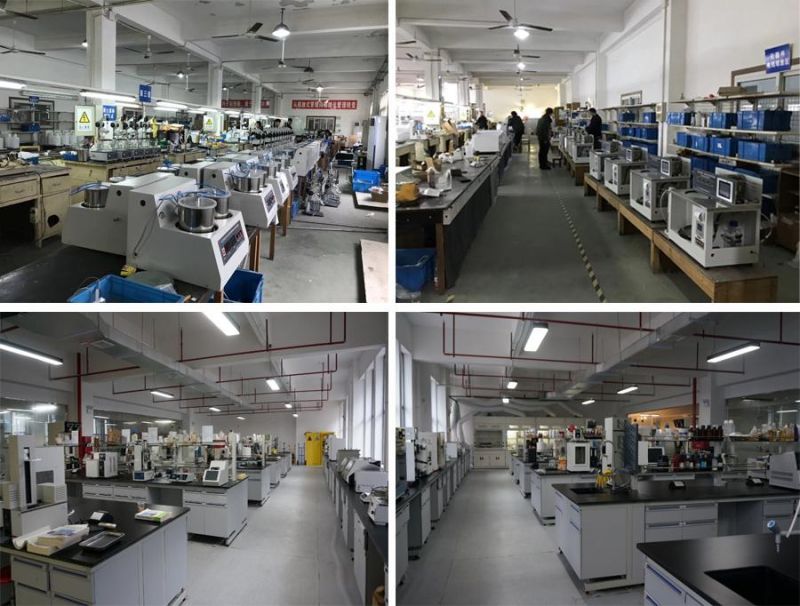

Workshop

Chongqing Gold Mechanical&Electrical Equipment Co.,Ltd is a professional manufacturer
of Petroleum Products test kits and electrical testing equipment in China.Our products
are sold to most countries in the world and they are highly popular because our good
quality and after-sale service.
At present, there are more than 150 employees, of whom more than 70% are technical personnel with college degree
or above.With strong technical force and strong development, new products have been launched continuously.




Gold Equipment Service:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days.

We can offer operation video and English operation muanual. We can provide video-con.

Onsite Service:

1.Device installation; 2.Equipment Operation Test Technology training;3.Equipment Calibration;4.Daily maintenance and maintenance of equipment

Free technical training for visiting factories

24-hour Online contact

Free software upgrades

Free information:steel tensile test

1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)

Device Problem Handling:

1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service
