ISO 12127 Protective Clothing Heat Spread Testing Equipment

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Product Name：ISO 12127 Protective Clothing Heat Spread Testing
  • Standard：ISO 12127; En702
  • Application：Protective Clothing
  • Function：Heat Release
  • Timer Scope：0 to 99999s
  • Timing Accuracy：up to 0.1s

Base Info

  • Model NO.：GD-ISO12127
  • Power Supply：220V 50 , 60Hz, Power 800W
  • Weight：About 50 Kg
  • Ambient Temperature：Operating25±5 Degree
  • Gas Supplies Requirement：Propane and Air Compressed Air
  • Warranty：1 Year
  • Transport Package：Standard Wooden Case
  • Trademark：GOLD
  • Origin：Chongqing China(Mainland)
  • HS Code：9031809090
  • Production Capacity：500 Sets, Year

Description

 ISO12127-2007Clothing for protection against heat and flame -- Determination of contact heat transmission through protective clothing or constituent materialsEN702

Protective clothing. Protection against heat and flame. Test method. Determination of the contact heat transmission through protective clothing or its materials



Specification:

Product NameISO 12127 Protective Clothing Heat Spread Testing EquipmentThis testing instrument Consists of a control box and stainless steel test gantryThe sample holder is automatic lifting, lifting speed5mm ± 0.2mm/sThe K type sheathed thermocouplesDiameter 2mm, temperature measurement accuracy is 0.1 degreeHeating barrel temperatureThan 500 degreeThe contact surface of the sample diameter25.2±0.05mmBarrel heating load weight 49NAdjustableTimer scope0 to 99999stiming accuracyUp to 0.1sCalorimeter fixed disk diameter 25mmSpecimen diameter  80mTest table size650mm * 350 mm * 650mmPower supply 220V 50 / 60Hz, power 800w, can be customizedWeightAbout 50 kgAmbient TemperatureOperating25±5 degreeGas Supplies requirementPropane and air compressed air


Product details:

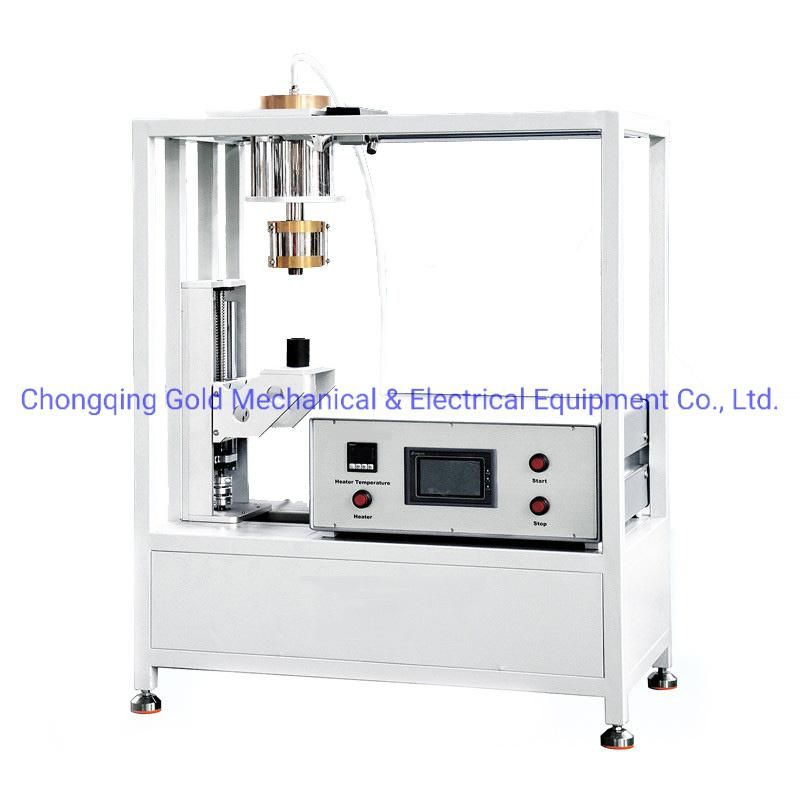

ISO 12127 Protective Clothing Heat Spread Testing Equipment

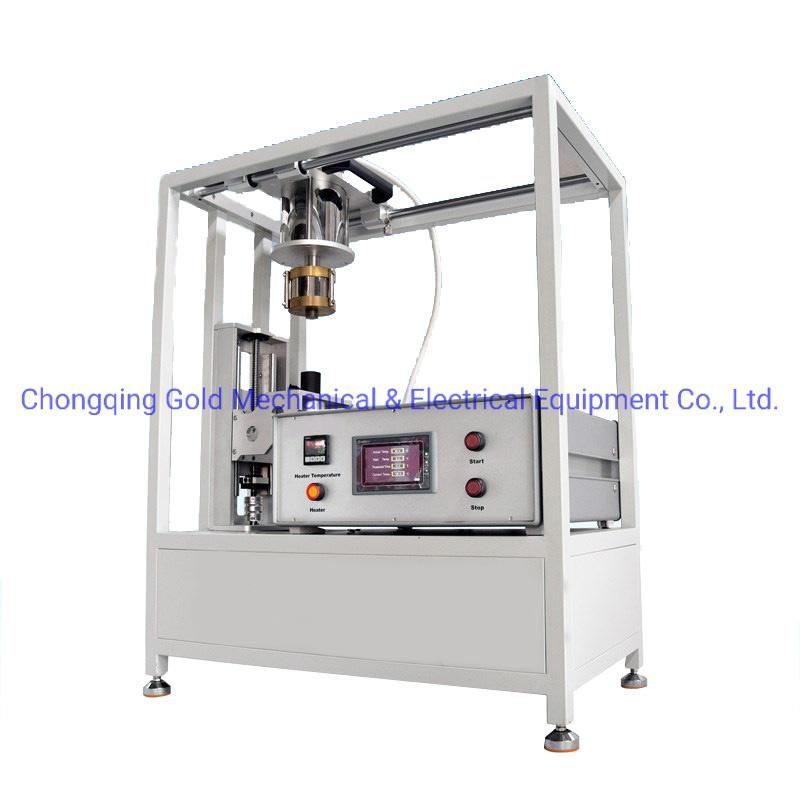

ISO 12127 Protective Clothing Heat Spread Testing Equipment
