Gdgs Power Transformer Dielectric Loss Capacitance and Tan Delta Tester Power Factor Tester
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.- Internal Hv：0.5~10kv
- Input Current Range：10μa~1A
- Test Standards：IEC 60247,Iiec 61620,ASTM D924
- Condition of Use：-5°c~40°c, Rh<80%
- Frequency of Self-Excited Power：45Hz ,55Hz
- Maximum Current of Self-Excited Power：15A
Base Info
- Model NO.：GDGS
- Maximum Output Capacity：200mA
- Power Supply：AC220V±10 % 50Hz,60Hz
- Warranty：12 Months
- Product Name：Transformer Tan Delta Tester
- Transport Package：Standard Wooden Case
- Specification：23kg
- Trademark：GOLD
- Origin：Chongqing, China (Mainland)
- HS Code：9031809090
- Production Capacity：50PCS,Month
Description

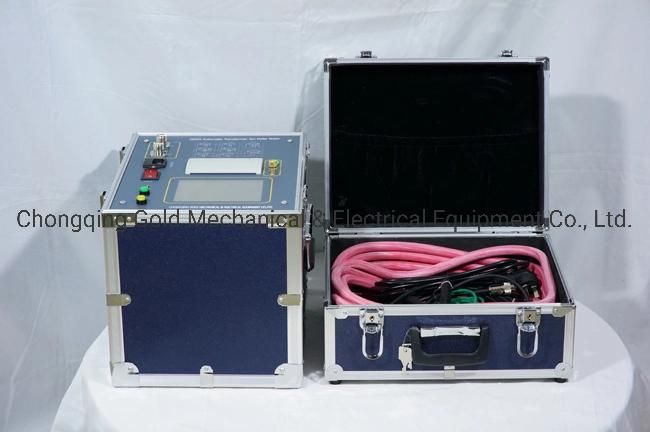

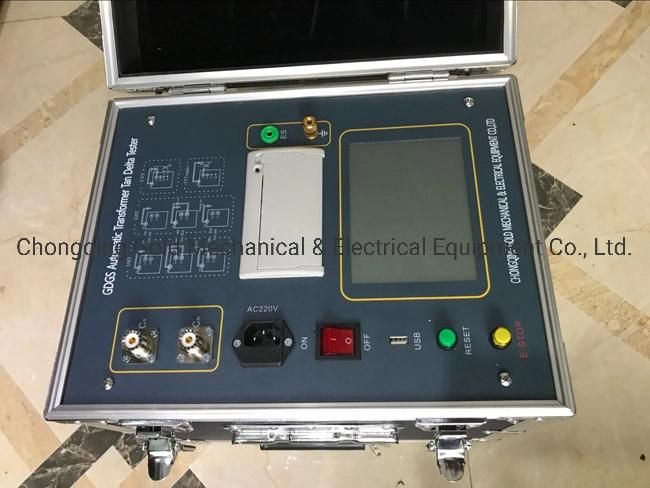

GDGS Power Transformer Dielectric Loss Capacitance and Tan Delta Tester Power Factor Tester
Product Details :
Success Case:
Customers Visit:
1
Use conditions
-15ºC∽40ºC
RH<80%
2
Anti-interference
Frequency conversion
3
Power
AC 220V±10%
Allowable generator
4
High output
0.5KV∽10KV
Every 0.1kV
Precision
2%
Maximum current
200mA
Capacity
2000VA
5
Self-excited power
AC 0V∽50V/15A
45HZ/55HZ 47.5HZ/52.5HZ
55HZ/65HZ 57.5HZ/62.5HZ
Automatic double frequency
6
Resolving power
tgδ: 0.001%
Cx: 0.001pF
7
Precision
△tgδ:±(Reading*1.0%+0.040%)
△C x :±(Reading*1.0%+1.00PF)
8
measuring range
tgδ
Unlimited
C x
15pF < Cx < 300nF
10KV
Cx < 60 nF
5KV
Cx < 150 nF
1KV
Cx < 300 nF
CVT test
Cx < 300 nF
9
CVT range
10∽10000
accuracy
0.1%
Resolving power
0.01
10
Exterior dimension
350(L)×270(W)×270(H)
11
Memory size
The 200 group supports U disk data storage
12
Weight
28 Kg
