• Model NO.：GDRW-2690A
• Weight：3.7kg
• Power Source：AC220V
• Power supply：220V±10%, 50Hz
• Rated test voltage：negative high voltage 2500V
• Output current：20mA
• Output test voltage acuracyc：±10%
• Load ability of high voltage：load 70KΩ, voltage drop<10%
• Measurement range：0-10GΩ
• Accuracy：class 10.0
• Display error of high voltage：± ( 5%·Ux + 1d )
• Transport Package：Carton or Wooden Case
• Specification：ISO, SGS
• Trademark：HV Hipot
• Origin：Wuhan China
• HS Code：9030332000
• Production Capacity：3000PCS,Year

Basic Info.

Model NO. GDRW-2690A Weight 3.7kg Power Source AC220V Power supply 220V±10%, 50Hz Rated test voltage negative high voltage 2500V Output current 20mA Output test voltage acuracyc ±10% Load ability of high voltage load 70KΩ, voltage drop<10% Measurement range 0-10GΩ Accuracy class 10.0 Display error of high voltage ± ( 5%·Ux + 1d ) Transport Package Carton or Wooden Case Specification ISO, SGS Trademark HV Hipot Origin Wuhan China HS Code 9030332000 Production Capacity 3000PCS/Year

Product Description

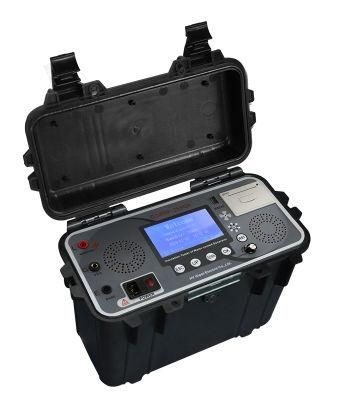

GDRW-2690A Insulation Tester for Water-cooled Generator 2500V


Application

It is specially used to measuring water-cooled generator, also to make insulation test on laboratory or on-site. The output current is more than 20mA while the output voltage is max.2500V.


Features


• Microcomputer controlled, LCD screen, LV shield measurement.
• Automatic measuring R15, R60, R600 and automatically calculating absorption ratio and polarization index.
• Test voltage is negative HV 2500V, with strong loading ability. When the resistance(water resistance) between winding and water collecting pipe is lower than 70kΩ, test voltage drop <10%.
• Measuring range 0-10GΩ, automatic switching ranges.
• Automatic compensation and eliminate the test result influence caused by water polarization potential. Even the resistance between water collecting pipe and engine base is lower at 3kΩ, the measurement accuracy can be ensured.
• Digital display the data change and results.
• Display test time and the buzzer will sound every 15s automatically.
• Discharge HV automatically after measurement. Discharge time is no more than 5s.
• Automatic measuring environmental temperature, air humidity and date/time of every test.
• Save up to 60groups of measurement results.
• With RS232 port, easy to communicate with PC.
• With printer.

Technical Specifications

• Rated test voltage: negative high voltage 2500V
• Output test voltage: ±10%
• Load ability of high voltage: load 70kΩ, voltage drop<10%
• Measurement range: 0-10GΩ
• Accuracy: class 10.0
  Basic error of 0-5GΩ: ± ( 10%·Rx + 2d )
  Basic error of 5-10GΩ: ± ( 20%·Rx + 4d )
• Display error of high voltage: ± ( 5%·Ux + 1d )
• Measurement error of temperature: ± 0.5ºC
• Measurement error of air humidity: ± 4%RH
• Power supply: 220V±10%, 50Hz
• Power consumption: <250W
• Insulation resistance: >50MΩ(500V) (between test cable and shell)
• Withstand voltage: AC 3kV, 50Hz,1min (between test cable and shell)
• Dimension: 400*350*230mm
• Weight: about 10kg.
