• Model NO.：GDYJ-502A
• Measurement Accuracy：±(1% of Full Scale + 2 Digits)
• Oil Temperature Measurement Range：0°c to 70°c, or Better
• Power Supply：AC220V, 50,60Hz
• Transport Package：Plywood Case
• Specification：50kg
• Trademark：GOLD
• Origin：Chongqing
• HS Code：9030849000
• Production Capacity：1000PCS,Month

Basic Info.

Model NO. GDYJ-502A Measurement Accuracy ±(1% of Full Scale + 2 Digits) Oil Temperature Measurement Range 0°c to 70°c, or Better Power Supply AC220V, 50/60Hz Transport Package Plywood Case Specification 50kg Trademark GOLD Origin Chongqing HS Code 9030849000 Production Capacity 1000PCS/Month

Product Description

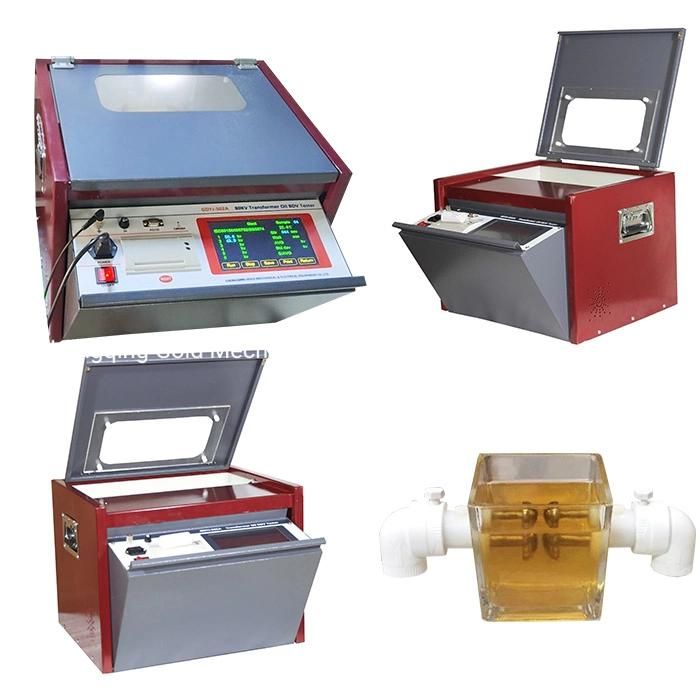

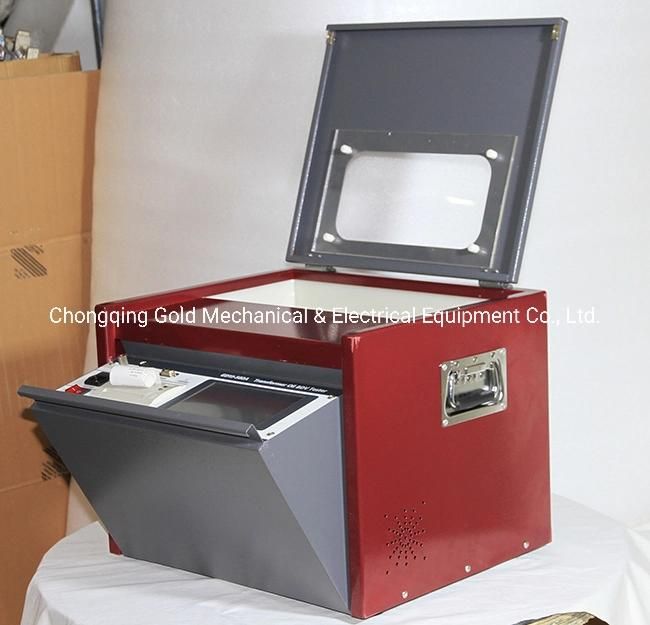

Insulating Oil Dielectric Strength Testing Equipment 80KV Breakdown Voltage BDV Tester


Introduction:

• It is developed according to IEC156 Insulating Oil Dielectric Strength Testing Method;

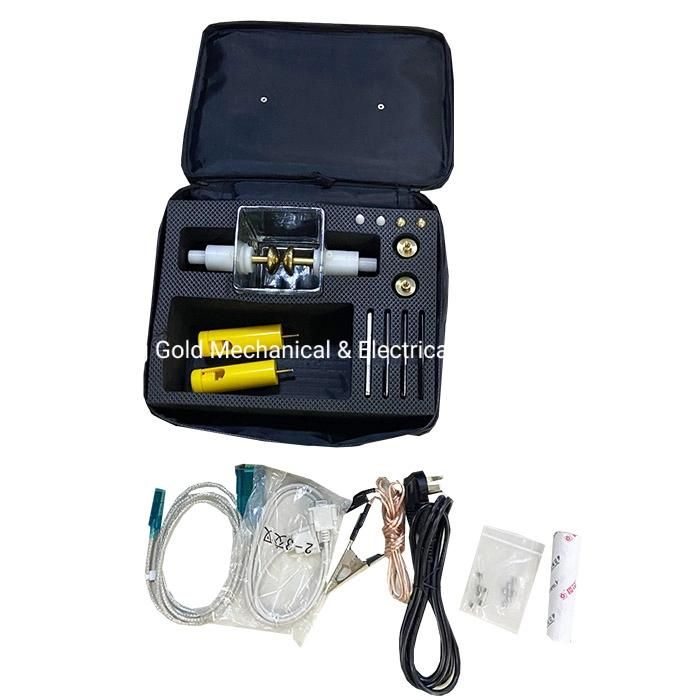

• The oil test vessel with temperature measurement unit, so it can detect oil temperature.

• With 8 Kinds of test mode as optional: IEC156, IS6792, BS5874, ASTM D1816 , ASTM D877, Proof test, 5 minutes standard test, Manual test;

• It has large LCD display, all the selection can be done by touch panel with color LCD;

• It also with micro-printer and can store 100 groups data, test data can also be unload to PC and output word report automatically;

• It is multi-functional, stable, and easy for operation



Specifications:

No.	Parameters	Specifications
1	Output voltage	AC 0V~80KV
2	Rate of voltage rise	0.5kv/s± 5%, 2kv/s± 5%, 3kv/s± 5%, 5kv/s± 5%
3	Max. test times	9
4	Stir time	0~999s
5	Wait time	0~999s
6	Measurement accuracy	±(1% of full scale + 2 digits)
7	Resolution	0.1KV
8	Temperature measurement range	0°C to 70°C, or better
9	Temperature resolution	1°C, or better
10	Data storage	100 groups
11	Weight	38kg
12	Size	550 mm*500mm*580mm
13	Power supply	AC220V, 50Hz
14	Working environment	Room temperature to 45°C, humidity<85%
