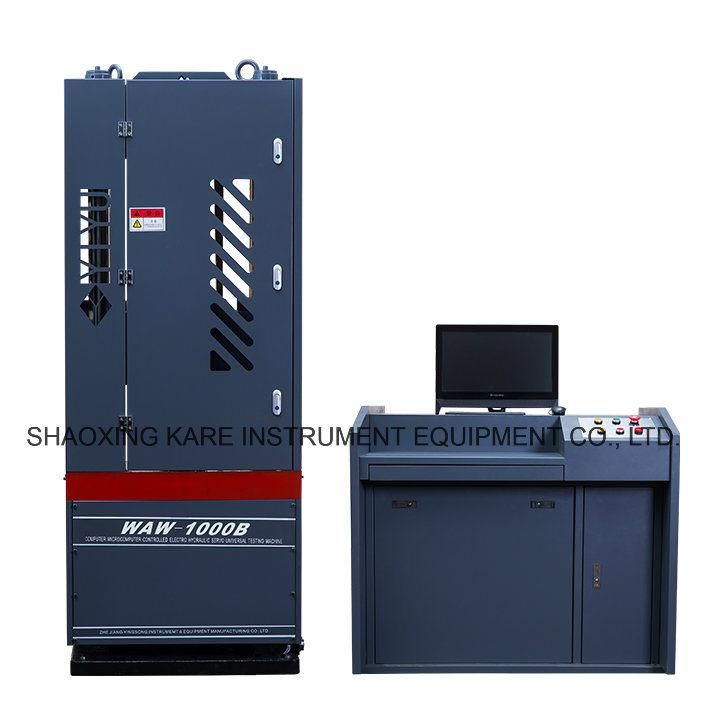

Computerized Electro-Hydraulic Servo Type Universal Testing Machine (WAW-1000B)

SHAOXING KARE INSTRUMENT EQUIPMENT CO., LTD.
  • Type：Universal Testing Machine
  • Maxcapacity：1000kn
  • Accuracy Grade：1
  • Display：Computer
  • Control：Computer Control
  • Weight：2100kg

Base Info

  • Model NO.：WAW-1000B
  • Power Source：AC380V
  • Oil Cylinder Position：Under
  • Column Qty：4
  • Lead Screw Qty：2
  • Transport Package：Wooden Case
  • Origin：Zhejiang
  • HS Code：9024101000
  • Production Capacity：20 Sets,Month

Description

WAW-1000BMax. testing force1000KNEffective measuring range10%~80%F.SRelative error to force value (%)±1Column quantity6Max. tensile test space700mmMax. distance between upper and lower presser disks700mmFlat spcimen clamping width110mmFlat sample clamping thickness0-35mmDiameter of round specimen20-50mmPiston stroke250mmBending test pressed rolling distance250mmTensile and compression space between two columns515mmMax. moving beam speed200mm/minMotor power≈1.7KW 380VMain frame dimension (L×W×H) (mm)820×620×2200Control & measurement cabinet dimension(L×W×H) (mm)1130×700×960Weight≈2100KgNoise≤75dB
