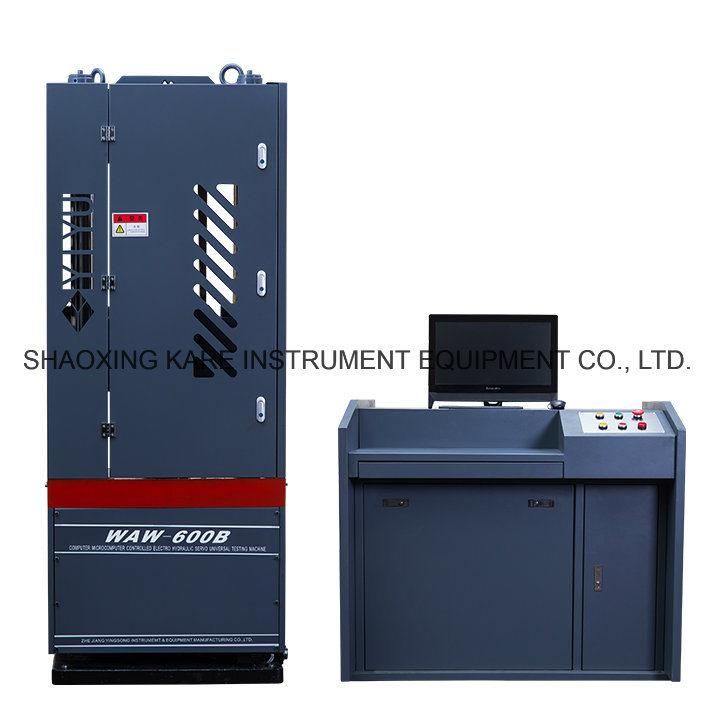

Computerized Electro-Hydraulic Type Servo Universal Testing Machine (WAW-600B)
SHAOXING KARE INSTRUMENT EQUIPMENT CO., LTD.- Type：Universal Testing Machine
- Maxcapacity：600kn
- Accuracy Grade：1
- Display：Computer
- Control：Computer Control
- Weight：1800kg
Base Info
- Model NO.：WAW-600B
- Power Source：AC380V
- Oil Cylinder Position：Under
- Column Qty：4
- Lead Screw Qty：2
- Transport Package：Wooden Case
- Origin：Zhejiang
- HS Code：9024101000
- Production Capacity：20 Sets,Month
Description
WAW-600BMax. testing force 600KN Effective measuring range 10%~80%F.S Relative error to force value (%) ±1 Column quantity 6 Max. tensile test space 700mm Max. distance between upper and lower presser disks 700mm Flat spcimen clamping width 90mm Flat sample clamping thickness 0-25mm Diameter of round specimen 13-40mm Piston stroke 250mm Bending test pressed rolling distance 220mm Tensile and compression space between two columns 465mm Max. moving beam speed 200mm/min Motor power ≈1.7KW 380V Main frame dimension (L×W×H) (mm) 780×580×2050 Control & measurement cabinet dimension(L×W×H) (mm) 1130×700×960 Weight ≈1800Kg Noise ≤75dB
