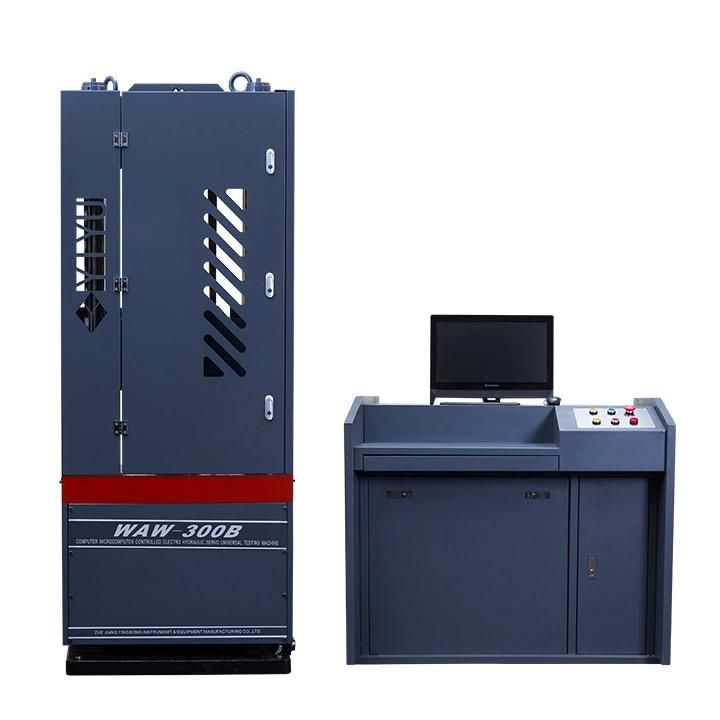

Computerized Electro-Hydraulic Type Servo Universal Testing Machine (WAW-300B)
SHAOXING KARE INSTRUMENT EQUIPMENT CO., LTD.- Type：Universal Testing Machine
- Maxcapacity：300kn
- Accuracy Grade：1
- Display：Computer
- Control：Computer Control
- Weight：1200kg
Base Info
- Model NO.：WAW-300B
- Power Source：AC380V
- Oil Cylinder Position：Under
- Column Qty：4
- Lead Screw Qty：2
- Transport Package：Wooden Case
- Origin：Zhejiang
- HS Code：9024101000
- Production Capacity：20 Sets,Month
Description
WAW-300BMax. testing force 300KN Effective measuring range 10%~80%F.S Relative error to force value (%) ±1 Column quantity 6 Max. tensile test space 670mm Max. distance between upper and lower presser disks 670mm Flat spcimen clamping width 75mm Flat sample clamping thickness 0-15mm Diameter of round specimen 10-32mm Piston stroke 200mm Bending test pressed rolling distance 220mm Tensile and compression space between two columns 385mm Max. moving beam speed 200mm/min Motor power ≈1.7KW 380V Main frame dimension (L×W×H) (mm) 660×540×1900 Control & measurement cabinet dimension(L×W×H) (mm) 1130×700×960 Weight ≈1200Kg Noise ≤75dB
