• Model NO.：GDHL-100A
• Rated Power Supply：AC220V
• Environment Temperature：-10 ºC~+40 ºC
• Relative Humidity：<80%
• Transport Package：Standard Wooden Case
• Specification：20kg
• Trademark：GOLD
• Origin：Chongqing, China (Mainland)
• HS Code：9031809090
• Production Capacity：500PCS,Month

Basic Info.

Model NO. GDHL-100A Rated Power Supply AC220V Environment Temperature -10 ºC~+40 ºC Relative Humidity <80% Transport Package Standard Wooden Case Specification 20kg Trademark GOLD Origin Chongqing, China (Mainland) HS Code 9031809090 Production Capacity 500PCS/Month

Product Description

GDHL-100A SF6 Circuit Breaker Loop Resistance Tester

Introduction:

• Contact resistance tester is used to test the contact resistance of circuit breaker or high current cable contacts.

• It is designed according to IEC62271.

• The main application of the tester is measurement of circuit breaker contact resistance.

• All the test results of the tester could be print by the micro-printer which is integrated in the tester.

• Also all the test results saved in the tester could be upload to PC computer and then convert to MS WORD document.

Features:

1) Rapid test;
2) Result print;
3) Upload data to PC;

Specifications:

No.	Item Name	GDHL-100A SF6 Circuit Breaker Loop Resistance Tester
1	Measuring range	0-1999.9 μΩ Resolution:0.1 μΩ
2	Measuring current	DC 100A, 200A, 400A, 600A for choice
3	Measuring precision	0.5 %RGD+0.05%FS
4	Display mode	LCD
5	Data storage	Save no more than 100 groups of data
6	Data connection	RS232 computer interface
7	Rated power supply	AC220V
8	Size	340mm*280mm*210mm
9	Environment temperature	-10 ºC~+40 ºC
10	Relative humidity	<80%

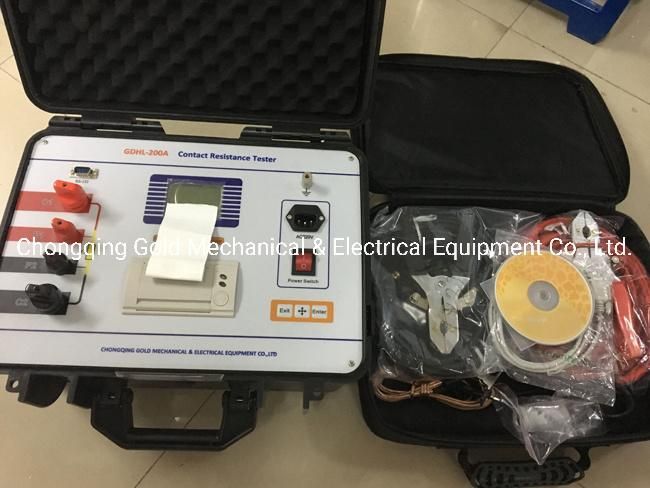

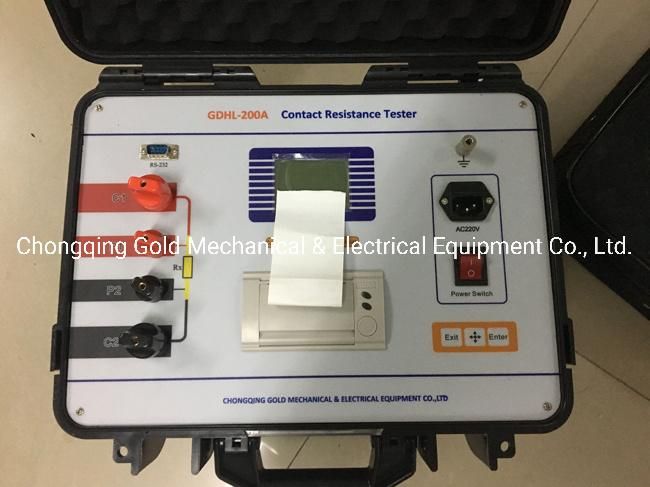

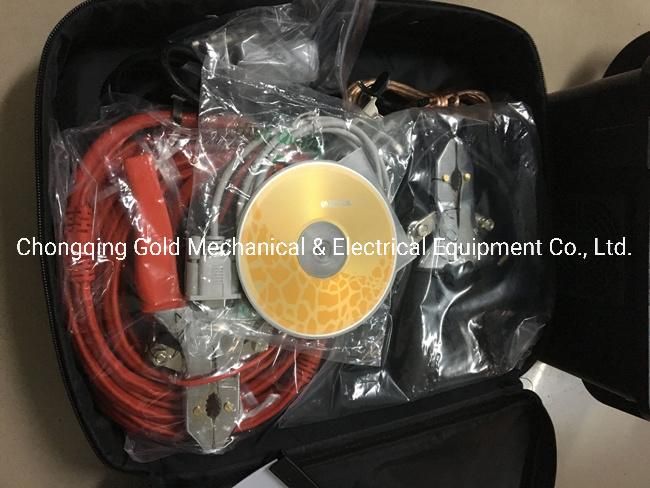

Product Details:

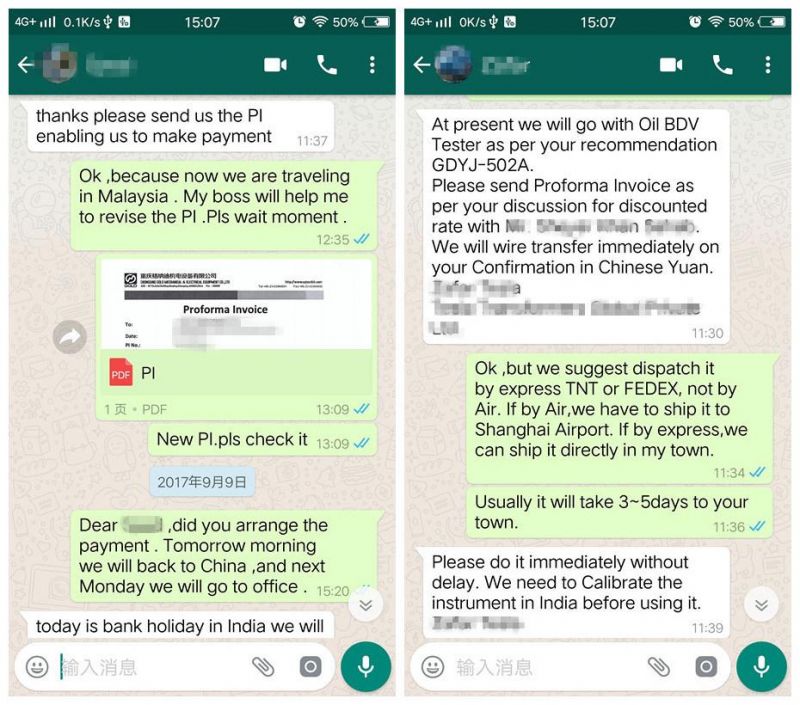

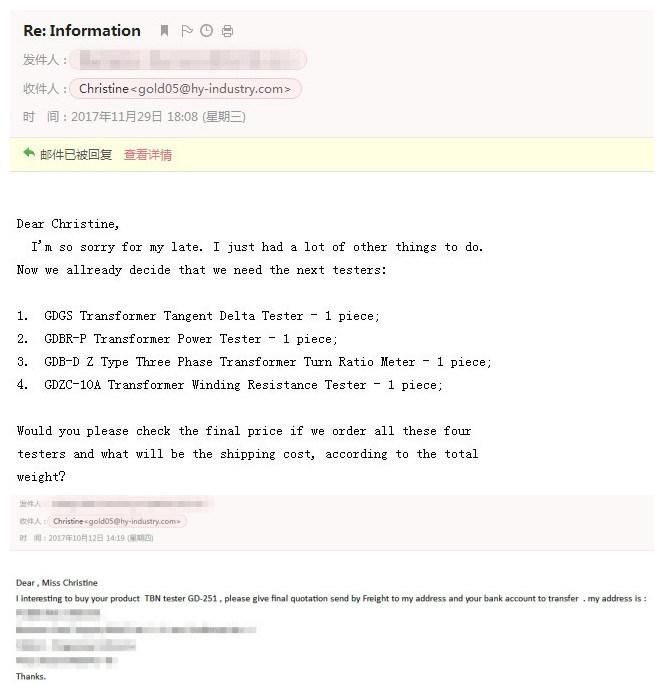

Success Case:

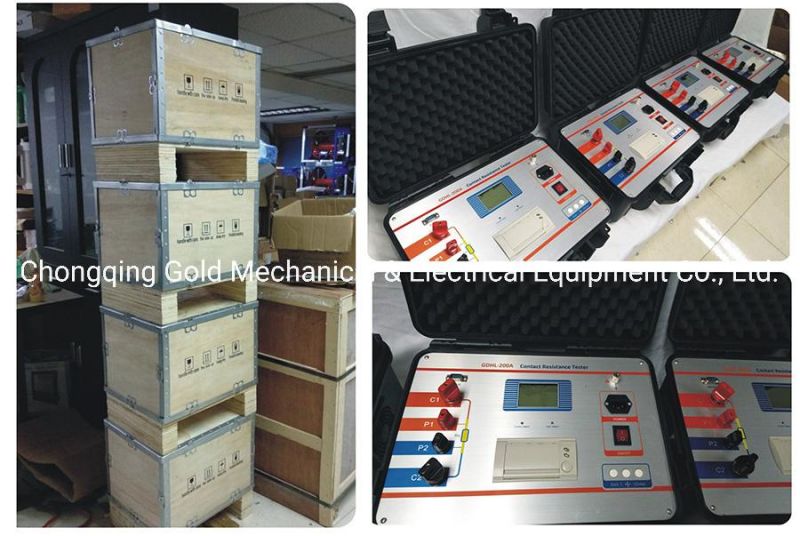

Four Sets GDHL-200A Sold to USA

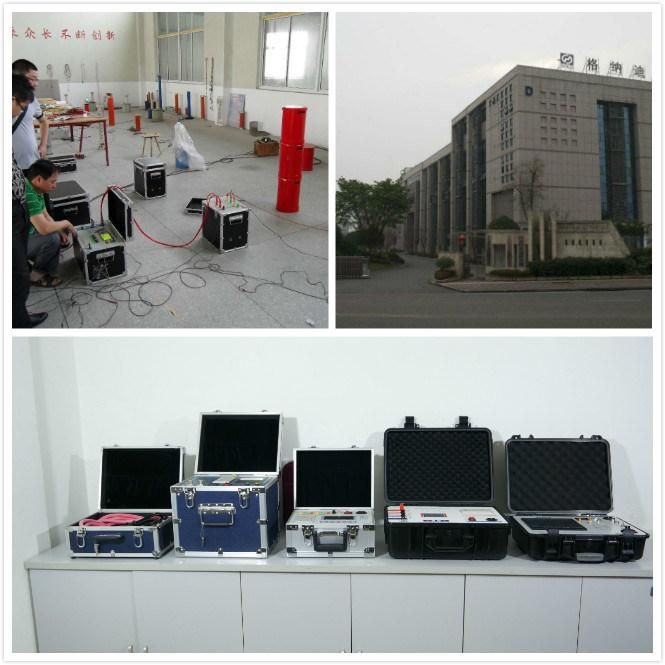

Our Company:



Chongqing Gold Mechanical&Electrical Equipment Co.,Ltd.  mainly design and manufacture the oil purifier and electrical testing equipment for more than 10 years.

After several years' development, our products have become high intelligent and wide coverage. And our company has become one of the leading manufacturer of oil purifier and electrical testing equipment in China;

We have developed sales channels in many countries such as UAE, Saudi Arabia,Malaysia, Thailand, Pakistan, India, Germany, Belgium, USA, Mexico, Kenya, Nigeria, South Africa and other countries worldwide.
And we have gained strong advantage and high reputation in international market.
