High Precision Current Transformer Test Set CT PT Analyzer

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • After-sales Service：Yes
  • Warranty：1 Year
  • Max Diameter of Workpiece：>3200mm
  • Type：Electrical Testing Equipment
  • Accuracy Grade：1
  • Display：Digital

Base Info

  • Model NO.：GDVA-405
  • Control：Computer Control
  • Weight：0-100Kg
  • Usage：Transformer Tester
  • Test Standards：IEC60044-1,2,5,6
  • Power Output：0.1~180V (AC)
  • Current Output：0.001~5A(RMS)
  • Maximum Knee Voltage：45kv
  • Power Supply：220V 50Hz
  • Product Name：Current Power Transformer Tester CT PT Analyzer
  • Transport Package：Wooden Case
  • Specification：65*46*40CM
  • Trademark：Gold
  • Origin：Chongqing
  • HS Code：9031809090
  • Production Capacity：200PCS,Month CT PT Analyzer

Description

GDVA-405 CT PT Analyzer1Test standardsIEC60044-1, IEC60044-6, GB1208, GB16847, C57.132Power supplyAC220V±10%,50Hz/60Hz±10%3Power output0.1~125V (AC)4Current output0.001~5A(RMS)5Power output300VA6Max. knee voltage measurement45kv7Current measurement range0~10A (automatically change range in 0.1/0.4/2/10A)8Current measurement error<±0.1%+0.01%FS9Voltage measurement range0~200 V (automatically change range in 1V/10V/70V/200V)10Voltage measurement error< ±0.1%+0.01%FS11Turns ratio measurement range1~30000;

1~2000 error<0.05%; 2000~5000 error>0.1%; 5000~35000 error<0.2%12Phase measurementerror:±2min,resolution:0.01min13Coil resistance measurementRange: 0~8kΩ(automatically change range in 2ohm /20ohm /80ohm/800ohm/8kohm)
Error< 0.2%RDG+0.02%FS Maximum resolution: 0.1mΩ14Temperature measurement-50~100 Celsius degree, error<3 Celsius degree15CT Secondary burdenRange 0-160ohm (automatically change range in 2ohm/ 20ohm/80ohm/160ohm)
Error <0.2%RDG+0.02%FS Maximum resolution 0.001ohm16PT Secondary burdenRange 0-80kohm (automatically change range in 800ohm / 8kohm /80kohm)
Error <0.2%RDG+0.02%FS Maximum resolution: 0.1ohm17PT ratio measurementRange: 1~30000, 1~5000 error<0.2% 5000~30000 error<0.5%18Saved data groups>1000groups19Work conditionTemperature:-10ºC-50ºC, moist:≤90%20Size70*50*41CM21Weight40kg
More details for High Precision Analyzer Equipment That Tests Current Transformers CT PT Tester/CT PT Anaylzer:

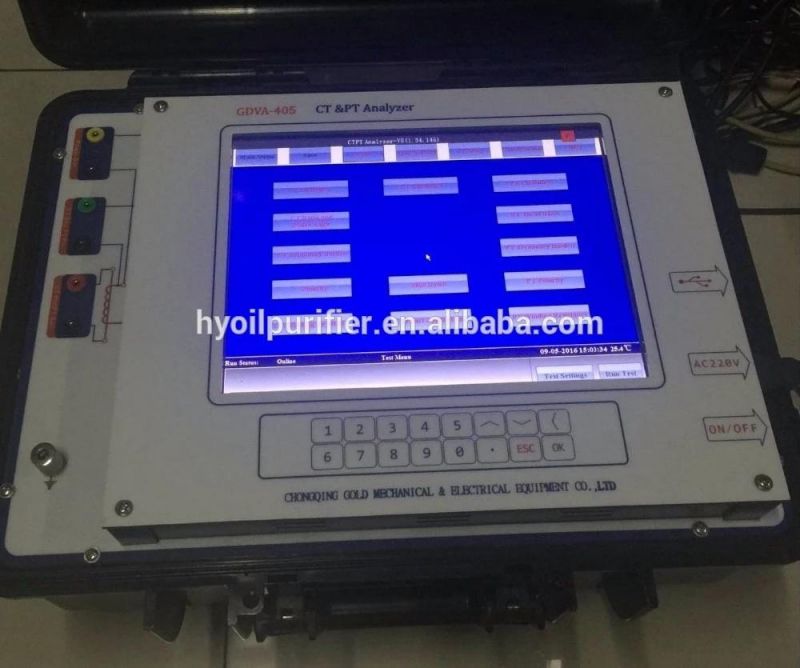

High Precision Current Transformer Test Set CT PT Analyzer

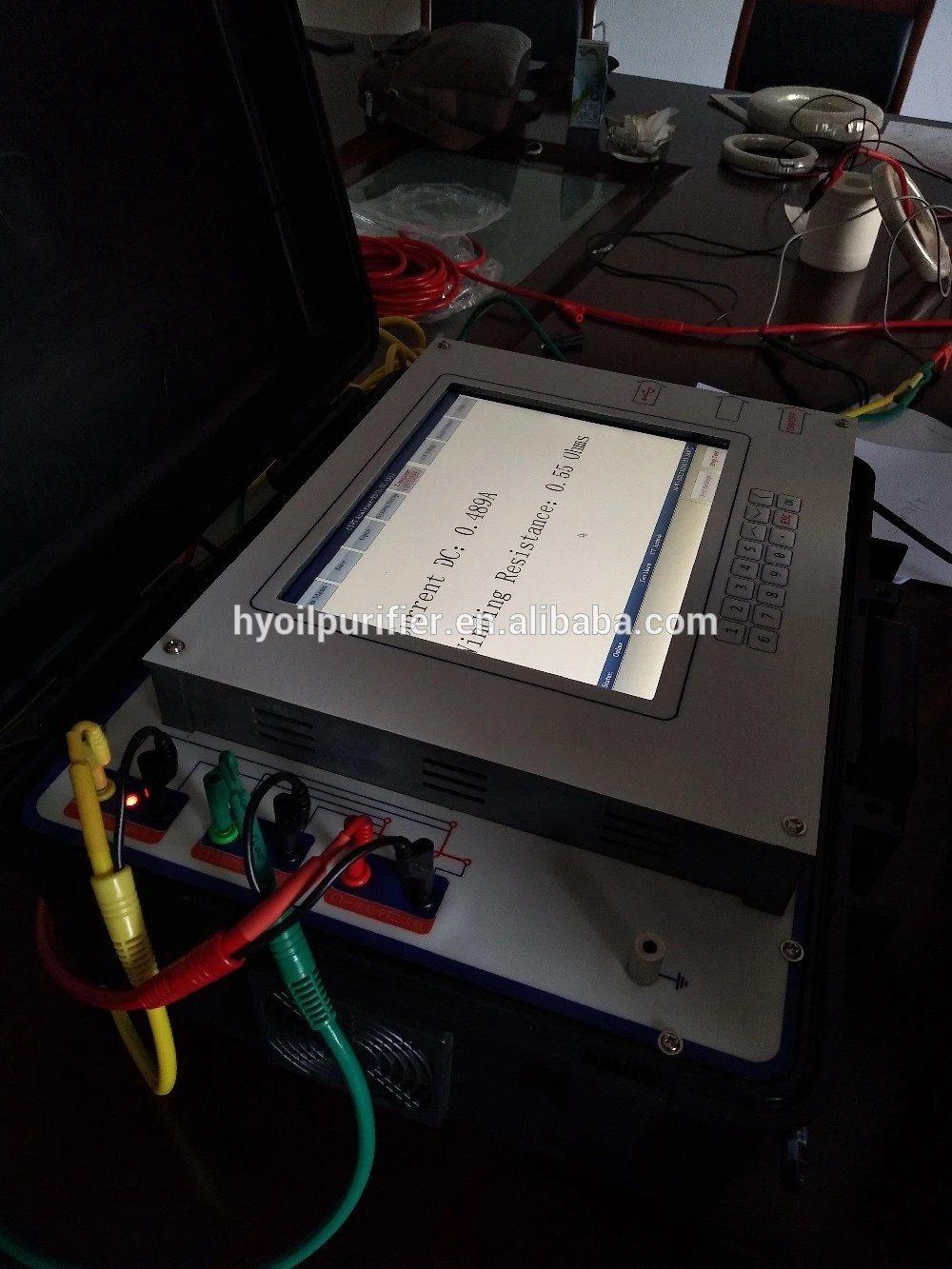

High Precision Current Transformer Test Set CT PT Analyzer
