• Model NO.：ES-10
• Power Source：AC380V
• Sine Force：10000n
• Max. Acceleration：1000m,S2
• Max. Speed：2.0m,S
• Frequency Range：5 Hz to 3000Hz
• Impact Displacement：51mm
• 51mm：14kg
• Vibration Wave：Sine,Random,Shock
• Vibration Directions：Three Axis
• Transport Package：Wooden Case
• Specification：CE Certified
• Trademark：ASLi
• Origin：Guangdong, China
• HS Code：90312000
• Production Capacity：100 Sets,Year

Basic Info.

Model NO. ES-10 Power Source AC380V Sine Force 10000n Max. Acceleration 1000m/S2 Max. Speed 2.0m/S Frequency Range 5 Hz to 3000Hz Impact Displacement 51mm 51mm 14kg Vibration Wave Sine,Random,Shock Vibration Directions Three Axis Transport Package Wooden Case Specification CE Certified Trademark ASLi Origin Guangdong, China HS Code 90312000 Production Capacity 100 Sets/Year

Product Description

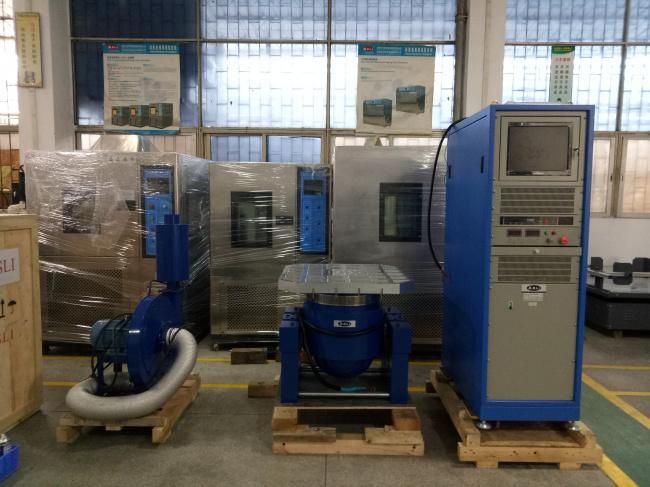

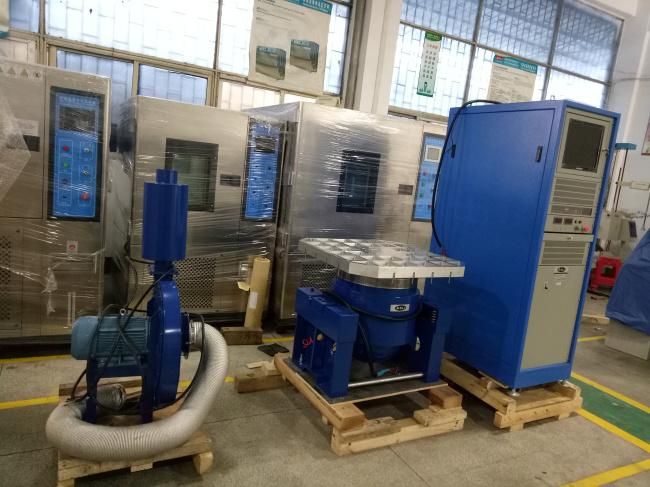

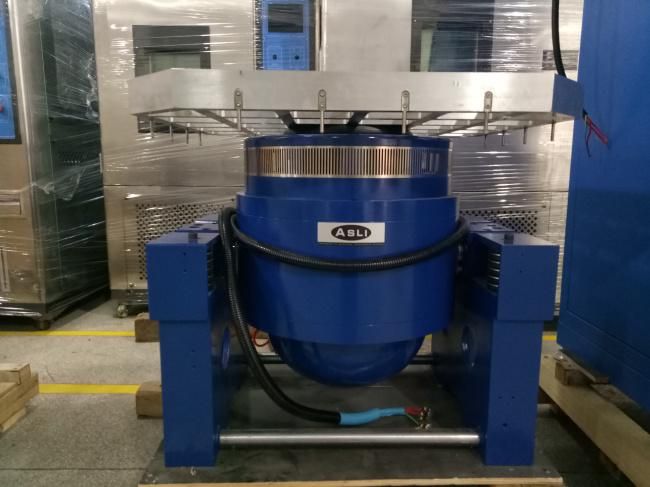

CE Certificated Electromagnetic Three Axis High Frequency Vibration Testing Equipment


Applicable range

Electromagnetic Three Axis High Frequency Vibration Testing Equipment is widely applied to national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, transportation, home appliances, etc.

Vibration Test System adopts " double magnetic circuit structure", " self generation skeleton moving coil", "air suspension bearing", "air spring support " linear bearing and roller guide", " ear shaft vibration isolation" and other modern advanced technology and special technology, which can complete respectively three shaft sine vibration test and broadband random vibration test,  complete the classic (half sine, trapezoid and after peak saw) pulse and shock response spectrum test.

High Frequency Vibration Testing Equipment Product Description

Model	Rated Sine Force (N)	Rated Random	Force (N)	Frequency Range (Hz)	Rated Acceleration (m/s2)	Rated Speed (m/s)	Rated displacement (p-p) mm	Max. Loading (Kg)	moving coil (Kg)
ES-3	3000	3000	3-3500	1000	1.6	25	100	3.5	Φ150
ES-3a	3000	3000	3-3500	400	1.6	40	120	9	Φ230
ES-6	6000	6000	3-3500	1000	1.6	25	180	6.5	Φ230
ES-6a	6000	6000	3-3500	1000	1.6	51	250	12	Φ230
ES-10	10000	10000	3-3000	1000	1.8	51	270	14	Φ240
ES-20	20000	20000	3-3000	1000	1.8	51	300	30	Φ320
ES-30	30000	30000	3-2800	1000	1.8	5l	450	40	Φ450
ES-40	40000	40000	3-2800	1000	1.8	51	500	50	Φ450
ES-50	50000	50000	3-2700	1000	1.8	51	750	50	Φ450

Electromagnetic High Frequency Vibration Testing Equipment Features
1.The reliability is high, and the rate of fault is low.

2.The stay magnetic field of the vibration generator is little. This stray magnetic field doesn't disturb the test sample which are sensitive to magnetic field.

3. Utilizing the computer on line control and inputting data for immediate storage facilitate the control  effectiveness and the control curve display.

4. The mass of armature is light. The stiffness of armature is high. The axial resonance frequency of armature is over 4000Hz.

5. The various parameters such as vibration frequency, displacement, velocity and acceleration can be monitored during the operating.

6. The design of low resistance and high performance is able to enhance the efficiency and to lower the cost of testing.

7.The switching power amplifier can make the vibration system output more larger radom thrust of root-mean-square value.

8.Large thrust,large displacement, high load, excellent guiding performance, small waveform distortion, high speed, complete protection functions etc.
 For Vertical Expander:
VT vertical extended-bench and specified clamps, precision calculated, elaborate design, to ensure the customer acquired the best performance according to perfect structure, high quality material and workmanship.


For Horizontal Expander

Within small loading bench to realize higher acceleration and working frequency, to improve the loading capacity and performance of whole machine bench.

Horizontal bench and vibration bench are integral type, with perfect structure, convenience to install and adjust.

Static pressure track, V-shape, with capacity of slope-resistant and bias-loading resistant.

Built-in oil pump, good structure and easy operating.


If you need more information about CE Certificated Electromagnetic Three Axis High Frequency Vibration Testing Equipment, please feel free to contact me.
