• Model NO.：ES-6
• Impact Displacement：25mm
• Max. Acceleration：1000m,S2
• Vibration Directions：Vertical & Horizontal
• Max. Speed：1.6m,S
• Moving Coil Weight：6.5kg
• Vibration Wave：Sine, Random, Shock
• Moving Coil Size：Dia. 230 mm
• Transport Package：Wooden Case
• Specification：ES-6
• Trademark：ASLI
• Origin：China
• HS Code：90312000
• Production Capacity：100 Sets,Year

Basic Info.

Model NO. ES-6 Impact Displacement 25mm Max. Acceleration 1000m/S2 Vibration Directions Vertical & Horizontal Max. Speed 1.6m/S Moving Coil Weight 6.5kg Vibration Wave Sine, Random, Shock Moving Coil Size Dia. 230 mm Transport Package Wooden Case Specification ES-6 Trademark ASLI Origin China HS Code 90312000 Production Capacity 100 Sets/Year

Product Description

Un38.3 Battery Simulation Mechanical Vibration Testing Equipment


Product Description
The Lab Un38.3 Battery Simulation Mechanical Vibration Testing Equipment is widely used in the fields of national defense, weapon, aviation, spaceflight, communication, electronics, electric appliance, transportation and household appliances.

According to the requirement, it can provide users with comprehensive test equipment in multiple environments such as climate and mechanics.

High Frequency Vibration Test Machine can complete sinusoidal vibration test and broadband random vibration test respectively, and can complete classic (half sinusoid, trapezoid, back peak saw tooth) pulse and shock response spectrum test.The comprehensive test of mechanics and enviroment conditions can be carried out with a climate chamber.

Vibration Testing Equipment Techanical Parameter

Model	Rated Sine Force (N)	Rated Random Force (N)	Frequency Range (Hz)	Rated Acceleration  (m/s2)	Rated Speed (m/s)	Rated displacement (p-p)mm	Max. Loading (Kg)	moving coil (Kg)	Dimension of Moving coil (mm)
ES-3	3000	3000	3-3500	1000	1.6	25	100	3.5	Φ150
ES-3a	3000	3000	3-3500	400	1.6	40	120	9	Φ230
ES-6	6000	6000	3-3500	1000	1.6	25	180	6.5	Φ230
ES-6a	6000	6000	3-3500	1000	1.6	51	250	12	Φ230
ES-10	10000	10000	3-3000	1000	1.8	51	270	14	Φ240
ES-20	20000	20000	3-3000	1000	1.8	51	300	30	Φ320
ES-30	30000	30000	3-2800	1000	1.8	5l	450	40	Φ450
ES-40	40000	40000	3-2800	1000	1.8	51	500	50	Φ450
ES-50	50000	50000	3-2700	1000	1.8	51	750	50	Φ450

For Vertical Expander

VT vertical extended-bench and specified clamps, precision calculated, elaborate design, to ensure the customer acquired the best performance according to perfect structure, high quality material and workmanship.

For Horizontal Expander

Within small loading bench to realize higher acceleration and working frequency, to improve the loading capacity and performance of whole machine bench.

Horizontal bench and vibration bench are integral type, with perfect structure, convenience to install and adjust.

Static pressure track, V-shape, with capacity of slope-resistant and bias-loading resistant.

Built-in oil pump, good structure and easy operating.

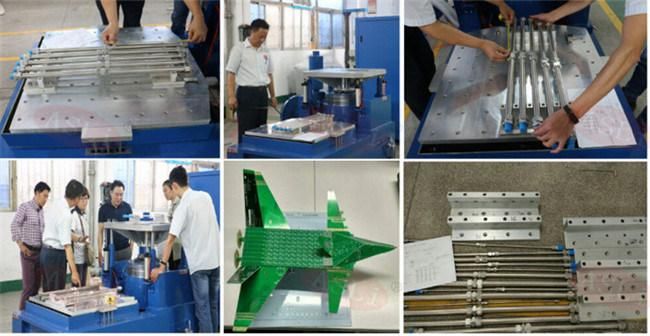

Detailed Images


Packing Detail

Our Company

We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechanical vibration and shock testing machine. Un38.3 Battery Simulation Mechanical Vibration Testing Equipment is our star products , and we had obtained the CE certification for this machine .
