• Model NO.：HJ-86
• Display：Digital
• Weight：100-500Kg
• Power Source：AC220V
• Product Name：Universal Tensile Strength Tester
• Test Items：Strength and Selective Elonga
• Unit of Strength：Kg, N, Lb, G
• Accurate Measurement Range：1%-100% Fs
• Working Type：Automatic Loading
• Resolution of Load：1,300000 of Full Scale
• Resolution of Displacement：0.001mm
• Power：Electronic
• Transport Package：Fumigation-Free Standard Export Wooden Box
• Trademark：Hongjin
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. HJ-86 Display Digital Weight 100-500Kg Power Source AC220V Product Name Universal Tensile Strength Tester Test Items Strength and Selective Elonga Unit of Strength Kg, N, Lb, G Accurate Measurement Range 1%-100% Fs Working Type Automatic Loading Resolution of Load 1/300000 of Full Scale Resolution of Displacement 0.001mm Power Electronic Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

Brief Introduction
•Universal testing machine is used to test both the tensile and compressive strength of materials. Universal testing machines are named as such because they can perform many different varieties of tests on an equally diverse range of materials, components, and structures. Most models are modular, and can be adapted to fit the customer's needs.
•Universal testing machines can accommodate many kinds of materials, ranging from hard samples, such as metals and concrete, to flexible samples, such as rubber and textiles. This diversity makes the universal testing machine equally applicable to virtually any manufacturing industry.
•Different models of universal testing machines have different load capacities, some as low as 2 KN and others as high as 2,000 KN.


Test items	Strength and selective elongation
Unit of strength	Kg, N, Lb, g
Capacity selection	1,2,5,10,20,50,100,200,500kg,1000kg,2000kg,5000kg,10000kg,20000kg
Load cell accuracy	0.5% or less
Test stroke	Max 1200mm does not include fixture
Test speed	0.1~1000mm/min can be adjusted arbitrarily
Stop mode	Upper and lower limit safety setting, emergency stop button,  program force and elongation setting, and test piece breakpoint sensing
Equipped	One set of standard fixtures, one help book and one product warranty card
Power	AC servo motor
Standard	Computer connection equipment (1 signal line, 1 decryption lock, 1 program CD)
Monitor	PC display
Extension unit	mm,cm,in,%
Power resolution	1/100,000
Test effective space	400mm diameter range

Advantages
•Precision reducers, ball screws which significantly reduce the noise and transmission losses while increasing the transmission efficiency.
•1 Year Warranty.
•The seal plate mining anode hardening protects the ball screw and increase service life and precision of the instrument.
•Load cell has memory lock function which memorizes various parameters.
•Plug and play load cell.
• When using the external I/O signal contact various functions can be expanded.
•Jog control and very easy for operation of machine.

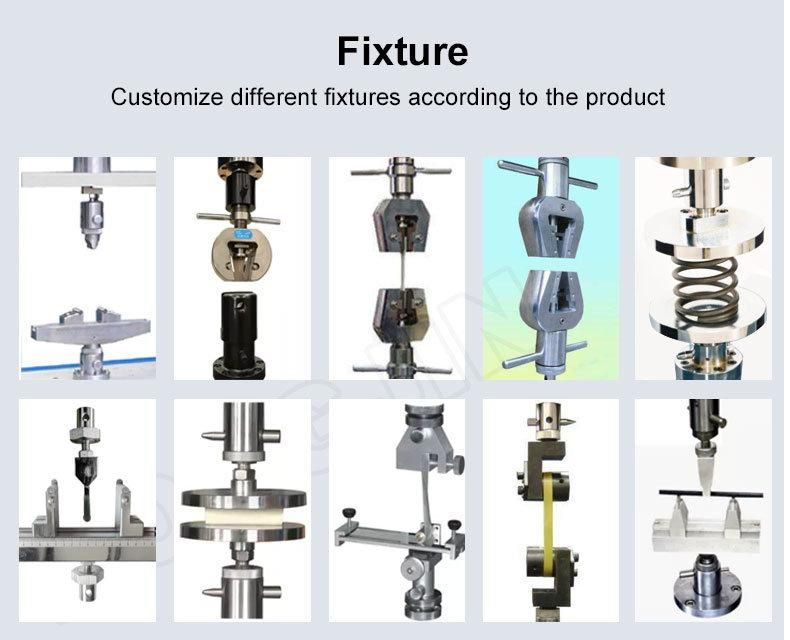

• Many relevant tests can be performed with optional grips and extensometer of fixtures.
