• Model NO.：HD-A521
• Power Source：AC220V
• Speed Mode：DC Converter or AC Frequency Control
• Power：220V, 50 Hz
• Max. Test Load：1kn
• Frequency Range：60-300 Rpm
• Amplitude Range：25.4 mm (1 Inch)
• Simulation Speed：25~40 Km,H
• Power Capacity：1 HP
• Environmental Conditions：Temperature: 5~40° C; Related Humidity < 85%
• Transport Package：Strong Wooden Case
• Specification：En71, UL, Ista, ASTM
• Trademark：HAIDA
• Origin：China
• HS Code：9024109000
• Production Capacity：1000sets,Year

Basic Info.

Model NO. HD-A521 Power Source AC220V Speed Mode DC Converter or AC Frequency Control Power 220V, 50 Hz Max. Test Load 1kn Frequency Range 60-300 Rpm Amplitude Range 25.4 mm (1 Inch) Simulation Speed 25~40 Km/H Power Capacity 1 HP Environmental Conditions Temperature: 5~40° C; Related Humidity < 85% Transport Package Strong Wooden Case Specification En71, UL, Ista, ASTM Trademark HAIDA Origin China HS Code 9024109000 Production Capacity 1000sets/Year

Product Description

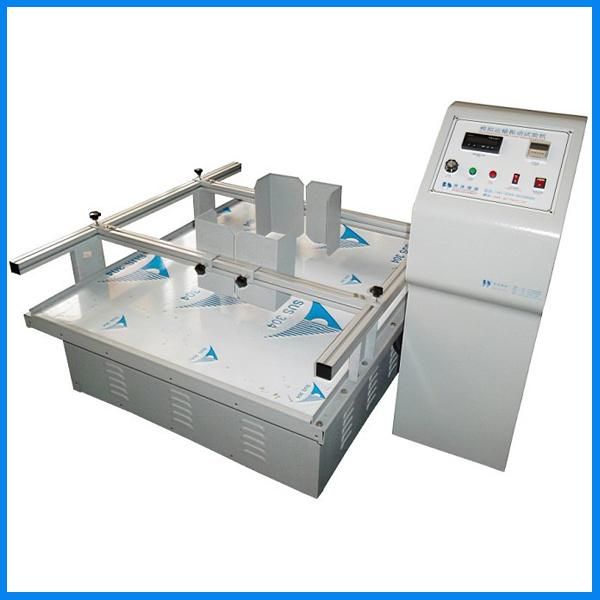

Simulation Transportation Vibration Tester (HD-A521)

Introduction:
Vibration Tester, Simulation Vibration Tester, Transportation Vibration Testing Machine, Electronic Vibration Tester, Toys Vibration Tester
Vibration Tester is used to test the anti-vibration capabilities of large pieces of furniture, household appliances, office furniture and other large objects, as well as the simulated transport vibration test of the packaged products, to assess the degree of vibration-resistance.

Installation:
1. The machine should be installed in a dry, solid, smooth place.
2. Link to the power of AC 220V/50Hz.
3. Placed the machine near the wall and separate it with rubber.
4. The motor ventilation openings should face outwards, and place the control box well.
5. Link well the motor line and the control line.
6. Power access terminal should be equipped with master switch. Host and control box have to be reliable grounded.


Parameter:

Item	Description
Max. test load	60kg (can be customized)
Frequency range	60~300rpm (adjustable)
Amplitude range	25.4mm (1 inch)
Vibration mode	Rotary motion
Work table size	1000*1200mm (can be customized)
Machine dimension (L×W×H)	1250×1200×800mm including control box (estimated)

(The table parameters for the company Standard Model parameters, we support customer customization parameters)
