• Model NO.：PHQ-160
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：500-1000Kg
• Power Source：AC380V
• Length：1780 Mm
• Width：700 Mm
• Height：1300 Mm
• Gross Weight：550 Kg
• Transport Package：Packed in Fumigated Wood Box
• Specification：ISO. CE. SGS
• Trademark：JP
• Origin：Shanghai China
• HS Code：9031110009
• Production Capacity：1000 Sets,Month

Basic Info.

Model NO. PHQ-160 Loading Method Dynamic Load Display Digital Control Computer Control Weight 500-1000Kg Power Source AC380V Length 1780 Mm Width 700 Mm Height 1300 Mm Gross Weight 550 Kg Transport Package Packed in Fumigated Wood Box Specification ISO. CE. SGS Trademark JP Origin Shanghai China HS Code 9031110009 Production Capacity 1000 Sets/Month

Product Description

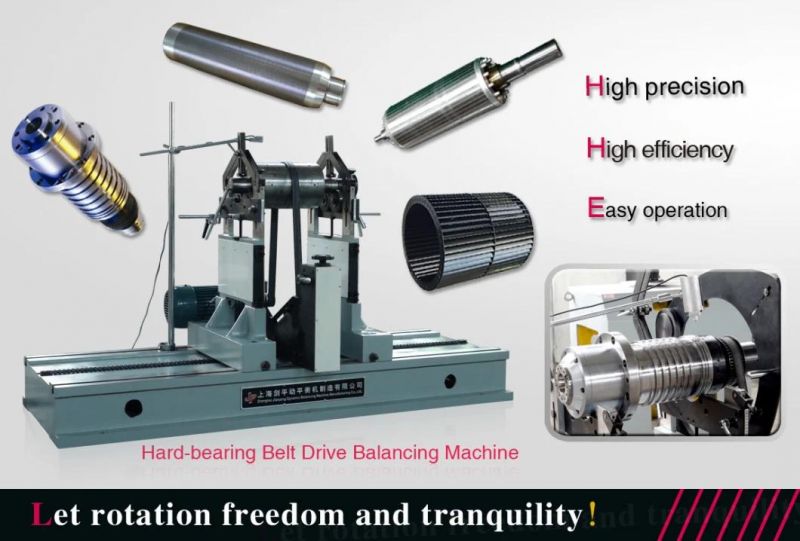

Horizontal Balancing Machine for The Rubber Roller Industry (PHQ-160)

Universally applicable
High balancing accuracy
Easy upgrading through modular structure and a wide range of accessories
Hard-bearing principle ensures fast change-over
JP-580 measuring instrument, with extensive operator prompting
Full range of safety equipment for all protection classes

Production Description

Specially designed brackets transmit mechanical force with low vibration damping
Durable and reliable sensor possesses good linearity
Permanent calibration brings high accuracy with a permission of large initial unbalance amount
Belt-driving offers higher precision and easier operation
Advanced electrical measuring system and friendly man-machine interface
Modular design offers a wide range of application

Range of Application

Horizontal Balancing Machine for The Rubber Roller Industry (PHQ-160) is also widely used in balancing rotatable bodies, such as kinds of medium-sized and small-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool , textile machinery, tool , spindle, etc .. Driven by belt, equipped with Variable speed motor to drive .Which ensures high quality balancing and precision. quick booting ,easy operation. and high efficiency

Special Features

The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanhua Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments

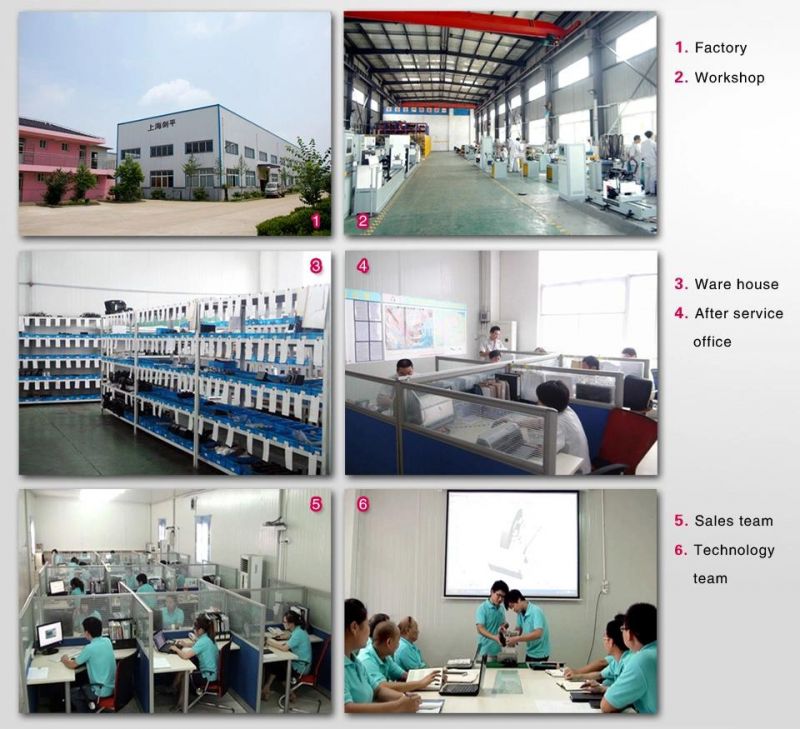

Factory Outlook




Certificates



Production Parameters



Technical data at a glance	PHQ-160	PHQ-300	PHQ-500
Max Mass of Workpiece (kg)	160	300	500
Max Diameter of Workpiece (mm)	1000	1220	1500
Distance between Two Support Bearings (mm)	150~1200	150~1200	150~1200
Journal Diameter Scope of Workpiece (mm)	15-75(can increase to75-180)	15-75(can increase to75-180)	15-75(can increase to75-180)
Diameter Scope of Driving Belt (mm)	30~350	40~400	40~400
Rotation Speed when the Diameter of Driving Belt is 100mm (r/min)	756,1176 +Stepless speed regulation	756,1176 +Stepless speed regulation	756,1176+Stepless speed regulation
Motor Power (kw)	1.5 Frequency conversion	1.5 Frequency conversion	2.2 Frequency conversion
Min Achievable Residual Unbalance Amount(emar)	0.5g. mm/kg	0.5g. mm/kg	0.5g. mm/kg
