• Model NO.：PHW-160
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：1000-2000Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Product Name：Universal Balancing Machine
• Application：Rotor up 160 Kg
• Dimensions：2800 mm*900 mm*1100 mm
• Gross Weight：830 Kg
• Drive Power：3 Kw
• Certificate：Ce ISO SGS BV
• Delivery Time：3-25 Days
• Package：2 PCS of Fumigated Wooden Case
• Warranty：12 Months
• Power Supply：3-Phase Voltage 380V, 60Hz
• Transport Package：Packed in Fumigated Wood Box
• Specification：ISO9001: 2008 CE SGS
• Trademark：JP Balancing machine
• Origin：Shanghai China
• HS Code：903110009
• Production Capacity：1000 Sets,Month

Basic Info.

Model NO. PHW-160 Loading Method Dynamic Load Display Digital Control Computer Control Weight 1000-2000Kg Power Source AC380V Oil Cylinder Position Under Product Name Universal Balancing Machine Application Rotor up 160 Kg Dimensions 2800 mm*900 mm*1100 mm Gross Weight 830 Kg Drive Power 3 Kw Certificate Ce ISO SGS BV Delivery Time 3-25 Days Package 2 PCS of Fumigated Wooden Case Warranty 12 Months Power Supply 3-Phase Voltage 380V, 60Hz Transport Package Packed in Fumigated Wood Box Specification ISO9001: 2008 CE SGS Trademark JP Balancing machine Origin Shanghai China HS Code 903110009 Production Capacity 1000 Sets/Month

Product Description

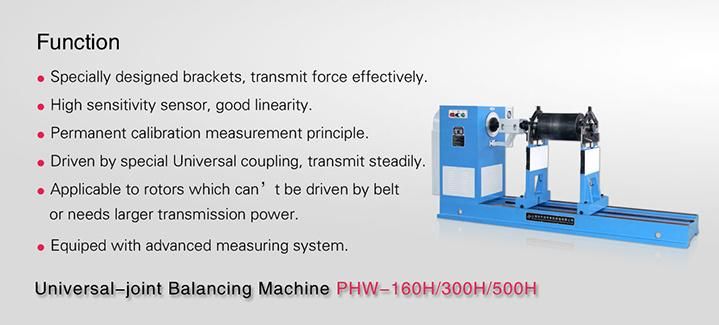

Horizontal Balancing Machine (PHW-160)





Production Description

Special designed brackets can effectively transmit mechanical force
The durable and reliable sensor possesses high sensitivity
The permanent calibration brings high accuracy
Driven by universal coupling, transmit the power steadily
Applicable to rotors which can't be driven by belt or need large power
Advanced electrical measuring system and friendly man-machine interface

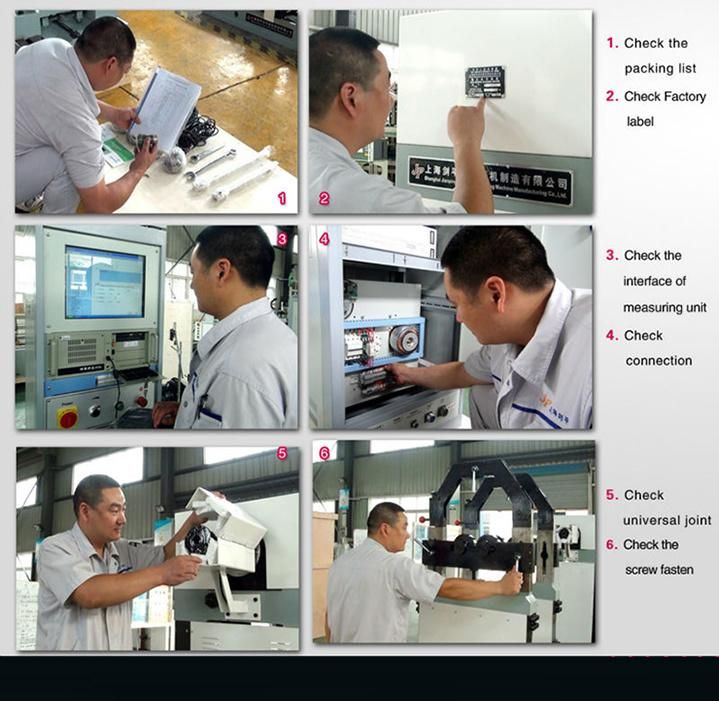

Delivery inspection



Range of Application

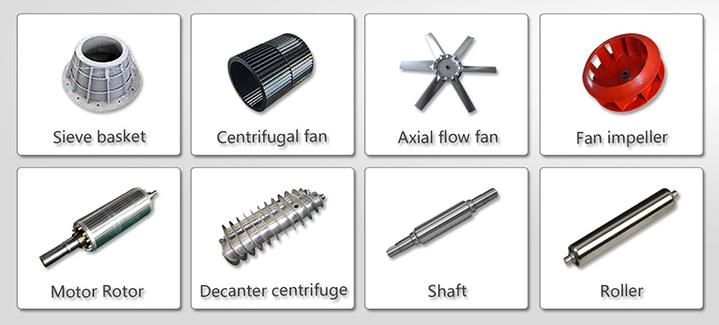

This balancing machine is mainly used in checking the balance of rotatable bodies such as medium-sized and small-sized motors, spindles of machine tools, blower, centrifuges, generator rotor, clinopodiums, pump impeller. Drying cylinder. Ceramic machinery, rollers, rubber sticks, etc...Driven by universal joints, equipped with Variable speed motor to drive. Which ensures high quality balancing and precision. With wide speed range, large driving power, high precision and easy operation etc
Special Features

The measuring unit employs JP-580B/580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanhua Industry Co, which equiped with 15/17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments. JP-380 Micro-computer Electric Measuring system (Digital Display) is also available

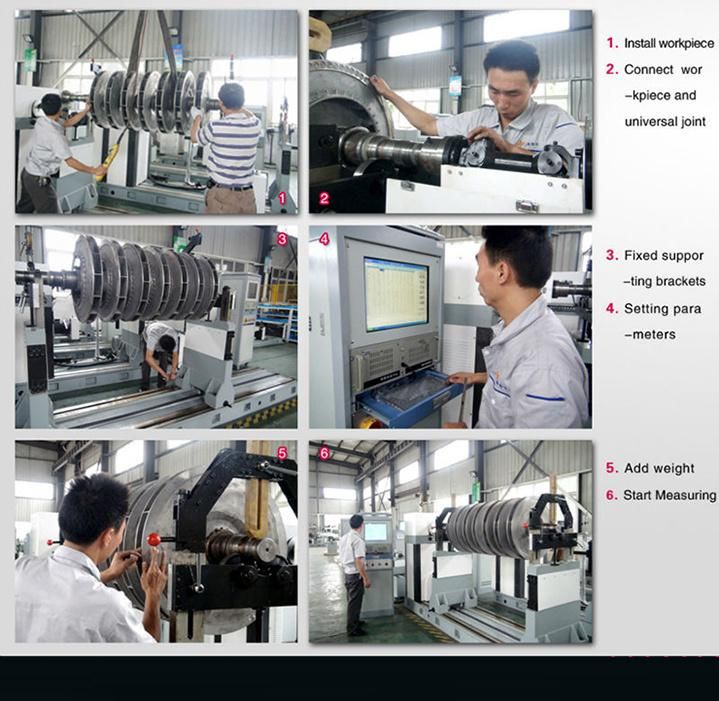

Workshop debugging



Production Parameters

Technical data at a glance	PHW-160	PHW-300	PHW-500
Mass Scope of Workpiece (kg)	160	300	500
Max Diameter of Workpiece (mm)	1000	1200	1500
Distance Between Two Support Bearings (mm)	Min:60	Min:60	Min:70
Journal Diameter Scope of Workpiece (mm)	10~140	20~180	20~180
Max Distance between Driving Flange and Right Bearing Support (mm)	1320	1500	1500
Rotation Speed of the Main Axis (r/min)	600,1095 +Stepless speed regulation	600,1095 +Stepless speed regulation	600,1095 +Stepless speed regulation
Motor Power (kw)	3 Frequency conversion	3 Frequency conversion	4 Frequency conversion
Torque of Universal Joint Shaft (N@m)	60	60	60
Min Achievable Residual Unbalance Amount (emar)	≤ 1g. mm/kg	≤ 1g. mm/kg	≤ 1g. mm/kg
