• Model NO.：PHQ-160
• Maxcapacity：<1000KN
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC380V
• Item：Belt Drive Dynamic Balancing Machine
• Length：1780 mm
• Width：700 mm
• Height：1300 mm
• Gross Weight：550 Kg
• Colour：Jp Standard or Custom
• Usage：Balancing Machine
• Power：Electronic
• Output Power：0.75kw Frequency Conversio
• Certifications：ISO,CE,SGS
• Transport Package：Packed in Fumigated Wood Box
• Specification：ISO9001: 2008 CE SGS
• Trademark：JP
• Origin：Shanghai China
• HS Code：903110009
• Production Capacity：1000 Sets,Month

Basic Info.

Model NO. PHQ-160 Maxcapacity <1000KN Accuracy Grade 1 Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Computer Control Weight 100-500Kg Power Source AC380V Item Belt Drive Dynamic Balancing Machine Length 1780 mm Width 700 mm Height 1300 mm Gross Weight 550 Kg Colour Jp Standard or Custom Usage Balancing Machine Power Electronic Output Power 0.75kw Frequency Conversio Certifications ISO,CE,SGS Transport Package Packed in Fumigated Wood Box Specification ISO9001: 2008 CE SGS Trademark JP Origin Shanghai China HS Code 903110009 Production Capacity 1000 Sets/Month

Product Description



Production Description:

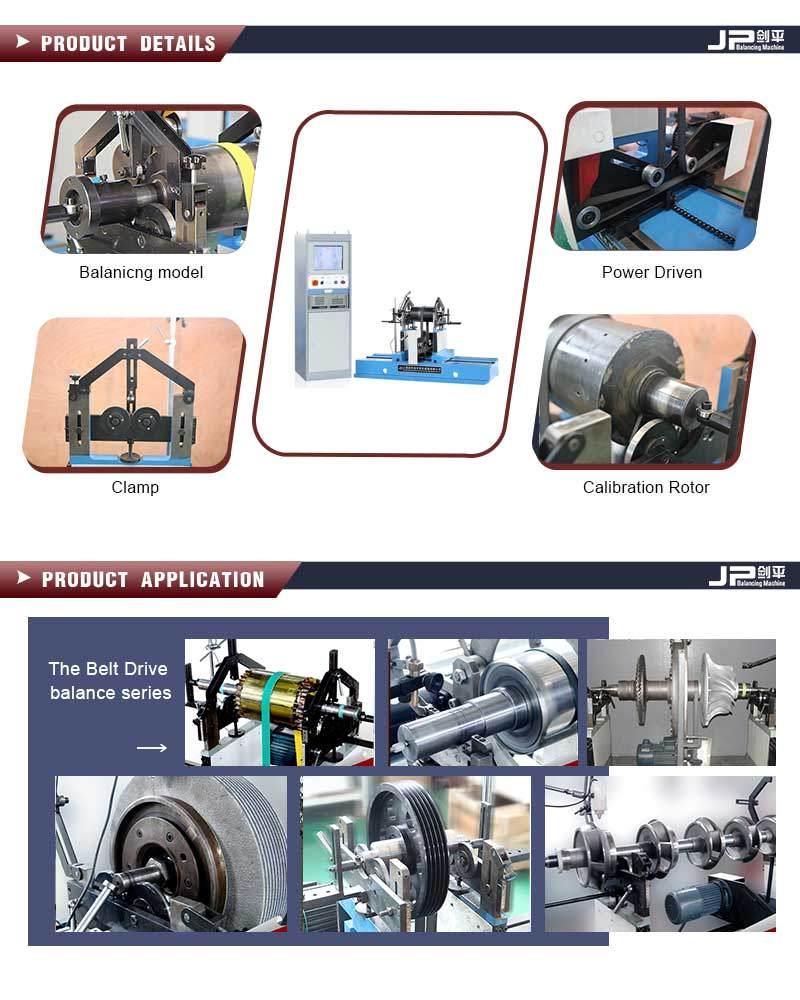

Special designed brackets can effectively transmit mechanical force
The durable and reliable sensor possesses high sensitivity
The permanent calibration brings high accuracy
Driven by universal coupling,transmit the power steadily
Applicable to rotors which can't be driven by belt or need large power
Advanced electrical measuring system and friendly man-machine interface

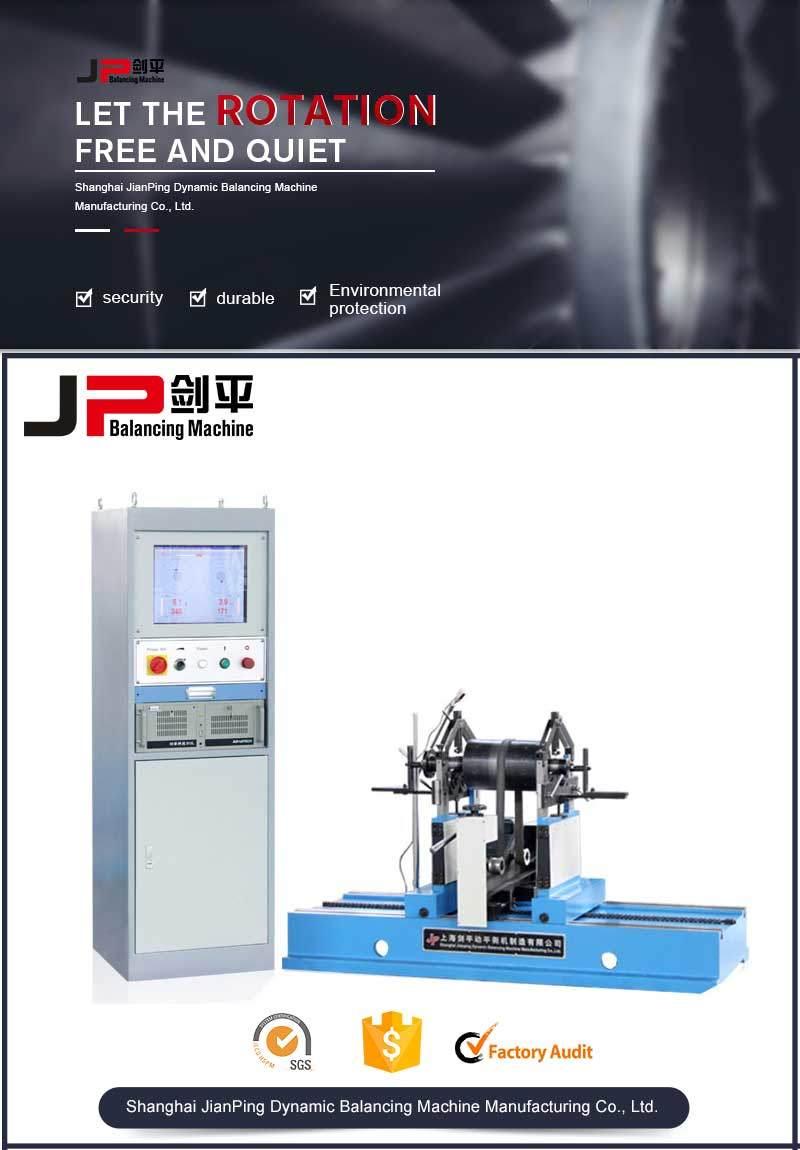

This balancing machine is mainly used in checking the balance of rotatable bodies such as medium-sized and small-sized motors, spindles of machine tools, blower, centrifuges, generator rotor , clinopodiums, pump impeller. drying cylinder. ceramic machinery,rollers,rubber sticks,etc.. Driven by universal joints, equipped with Variable speed motor to drive .Which ensures high quality balancing and precision. With wide speed range,large driving power, high precision and easy operation etc
 Special Features:

The measuring unit employs JP-580B/580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanhua Industry Co, which equiped with 15/17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments. JP-380 Micro-computer Electric Measuring  system (Digital Display) is also available



Technical data at a glance	PHW-160	PHW-300	PHW-500
Mass Scope of Workpiece (kg)	160	300	500
Max Diameter of Workpiece (mm)	1000	1200	1500
Distance Between Two Support Bearings (mm)	Min:60	Min:60	Min:70
Journal Diameter Scope of Workpiece (mm)	10~140	20~180	20~180
Max Distance between Driving Flange and Right Bearing Support (mm)	1320	1500	1500
Rotation Speed of the Main Axis (r/min)	600,1095 +Stepless speed regulation	600,1095 +Stepless speed regulation	600,1095 +Stepless speed regulation
Motor Power (kw)	3 Frequency conversion	3 Frequency conversion	4 Frequency conversion
Torque of Universal Joint Shaft (N.m)	60	60	60
Min Achievable Residual Unbalance Amount (emar)	≤ 1g, mm/kg	≤ 1g, mm/kg	≤ 1g, mm/kg
