• Model NO.：GD-0609
• Loading Method：Dynamic Load
• Display：Digital
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Thin Film Oven：Bitumen Oven for Thin Film Oven Test.
• Tfot：Evaluation of Aging Characteristics of Asphalts
• Temperature of Working Chamber：163+,-0.5c
• Temperature Controlling Accuracy：+,-0.5c
• Rotation Speed of Turntable：5.5 R,Min+,-1 R,Min
• Sample Quantity：4
• Size of Workroom：450mm*450mm*510mm
• Ambient Temperature：5~50c
• Warranty：1 Year
• Transport Package：Plywood
• Trademark：GOLD
• Origin：Made in China
• HS Code：9031809090
• Production Capacity：100sets,Month

Basic Info.

Model NO. GD-0609 Loading Method Dynamic Load Display Digital Weight 0-100Kg Power Source AC220V Oil Cylinder Position Under Thin Film Oven Bitumen Oven for Thin Film Oven Test. Tfot Evaluation of Aging Characteristics of Asphalts Temperature of Working Chamber 163+/-0.5c Temperature Controlling Accuracy +/-0.5c Rotation Speed of Turntable 5.5 R/Min+/-1 R/Min Sample Quantity 4 Size of Workroom 450mm*450mm*510mm Ambient Temperature 5~50c Warranty 1 Year Transport Package Plywood Trademark GOLD Origin Made in China HS Code 9031809090 Production Capacity 100sets/Month

Product Description

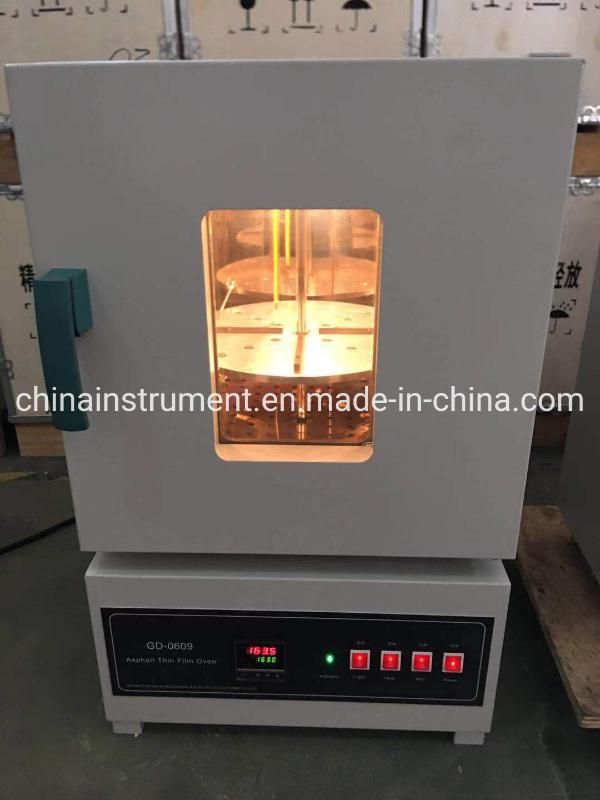

GD-0609 ASTM D6 ASTM D1754 Bitumen Oven for Thin Film Oven Test by TFOT Method

Introduction:

This Thin Film Oven is used to determine the effect of heat and air on a film of semisolid asphaltic materials. The effects of this treatment are determined from measurements of selected asphalt properties before and after the test.

The TFOT is applied to determine the loss in mass, of oil and asphaltic / bituminous compounds when heated with the loss on heating test method or the effect of heat and air on semisolid asphaltic / bituminous materials with the thin film oven test (TFOT) method.


Features:

1. The outer shell is made of sheet steel. It equips a stainless steel working chamber on the top half. There is a observation window in the center. An illuminating lamp is equipped inside the chamber. Easy to observe the reading of thermometer inside the chamber during the test.
2. Heating device is equipped on the bottom of chamber. It adopts natural convection method to heat the air. The chamber can be heated uniformly by air channel on the top, bottom and back.
3. There are four turn plates for placing the specimen container on in the center of chamber. It can be rotated by a motor having a rate at 5.5RPM.
4. Intelligent temperature controller ensures the temperature being at 163ºC±0.5ºC as per standard test method.


Specifications:

1. Power supply: AC220V±10%,50Hz
2. Power: 2.5KW
3. Temperature of workroom: 163ºC±0.5ºC
4. Temperature control accuracy: ±0.5ºC
5. Rotate speed of turn plate: (5.5r±1r)/min
6. Test sample quantity: 4 pieces
7. Size of workroom: 450mm*450mm*510mm
8. Ambient temperature: 5ºC~50ºC
9. Relative humidity: ≤85%

ASTM D6 ASTM D1754 Bitumen Oven for Thin Film Oven Test by TFOT Method:
