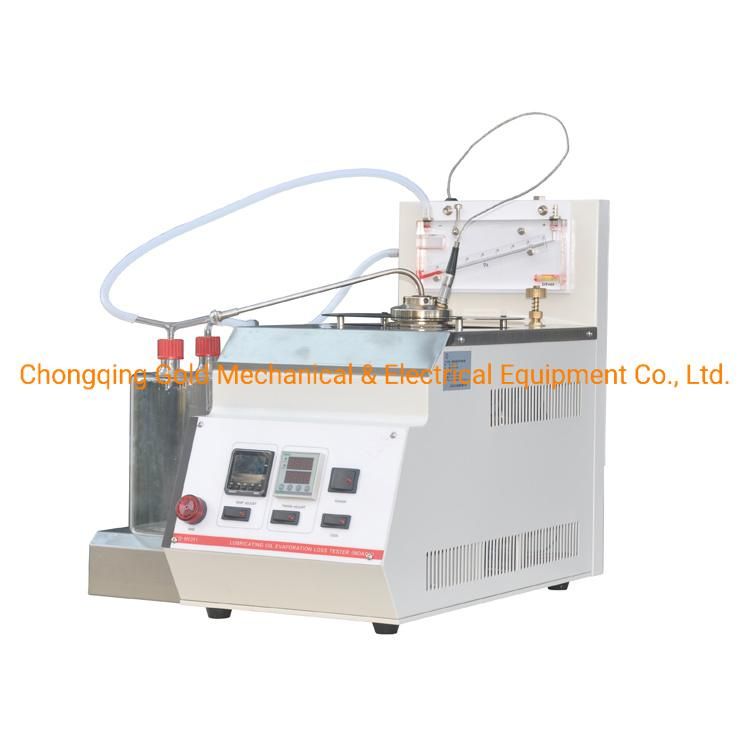

• Model NO.：GD-H1311
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Transport Package：Wooden Case
• Specification：620mm*460mm*355mm
• Trademark：GOLD
• Origin：China
• Production Capacity：200units,Month

Power supplyAC220V±10%Temperature controlroom temperature to 300ºCTemperature resolution:resolution accuracy  ±0.1ºCTemperature control accuracy: ±0.5ºC Heating unit:environment protection light heating unitVacuum control:vacuum pump and pressure meter air filterPressure range:  0~25mm H2OPressure accuracy: resolution accuracy ±0.05 mm H2OStability precision:  ±0.2 mm H2OTotal consumption: less 2200W(heating power 2000W)Relative humidity: ≤85% Environment temperature:  ≤30ºC

Standard

ASTM D5800  DIN51581  NFT60616

CECC40A9S  SH/T0059.

Outline dimension:main uint 550mm×360mm×360mm
toolbox: 330mm×210mm×80mm
(L*W*H,buit-in 2pcs 2500ml voltage stabilization bottle)



I. Main technical features



1. Latest technology:adopt B method to instead of A method,There are no wood alloy in process of test to avoid environment pollution and personnel injure.

2. Control method:adopting embedded operating system,high speed microprocessor control,work steadily and reliably.

3. Printing way:with USB printer port,RS232 port,realize the connection and communication between printers and computers.

4. Touching:adopting LCD display,convenient operation by touch screen.

5. Safety:with the inner diagnostic program and many alarms,realize the smart management

when instrument's fault.

6. Precision control:built-in high-capacity EPROM,real-time recording the value of temperature and pressure at each minutes.

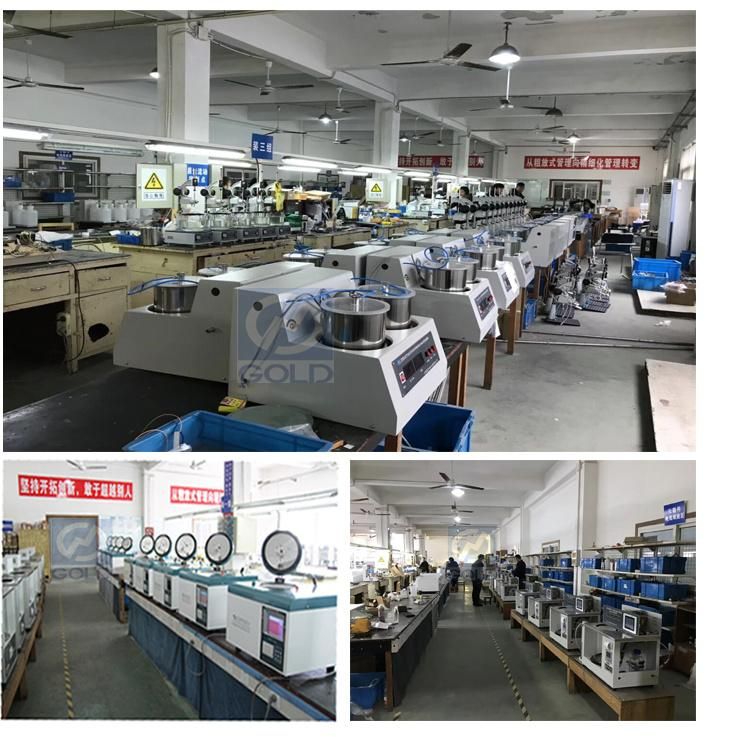

Workshop

Chongqing Gold Mechanical&Electrical Equipment Co.,Ltd is a professional manufacturer of Petroleum Products test kits and

electrical testing equipment in China.Our products are sold to most countries in the world and they are highly popular because our good

quality and after-sale service.






At present, there are more than 150 employees, of whom more than 70% are technical personnel with college

degree or above.With strong technical force and strong development, new products have been launched continuously.


Exhibition



We have developed sales channels in many countries such as UAE, Saudi Arabia, Iran, Malaysia, Thailand, Pakistan,

India, Germany, Belgium, USA, Mexico, Kenya, Nigeria, South Africa and other countries worldwide. And we have

gained strong advantage and high reputation in international market.

After several years' development, our products have become high intelligent and wide coverage.
And our company has become one of the leadingmanufacturer of petroleum testing instrument and electrical testing

instrument.

Packing

Goods are packed in veneer case, which is firm and safe for oversea shipment.



Please feel FREE to contact us if you have any needs. And welcome to visit our OFFICIAL WEBSITE at:

 http://chinainstrument.en.made-in-china.com
