• Model NO.：TC-10S
• HS Code：90248000
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. TC-10S HS Code 90248000 Production Capacity 200 Sets/Month

Product Description

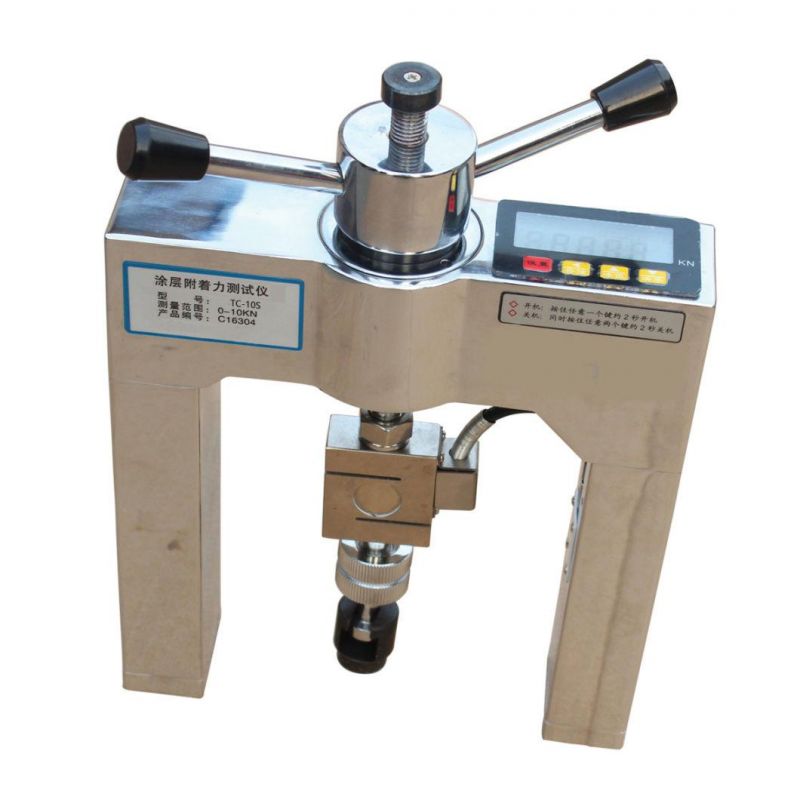

Portable Coating Pull-Off Strength Adhesion Tester

TC-10S coating adhesion tester is mainly used in the detection of anti-corrosion coating adhesion in the construction of high-speed rail projects. The surface coating adhesion of steel pipes and iron plates is a necessary testing instrument for quality inspection and construction units.


TC-10S coating adhesion tester adopts mechatronics design, the whole set of instruments is a whole. The mechanical parts including handle, high-precision S-type sensor, lead screw, reaction force support and other mechanical parts form a "door" structure. At the same time, the measurement display circuit is embedded in the instrument to directly observe the data. The detector has the characteristics of light weight, labor-saving handle operation, and convenient use.

Features
Integrated design, embedded measurement and display circuit;
Peak hold function;
Can store up to 500 pieces of data;
10-segment polyline correction;
Automatic shutdown and LCD lighting;
The unit of measurement can have KN or MPa values.

Technical Parameters

Structure	Integrated
Display mode	Force value KN/strength value Mpa, adjustable
Measuring range	0-10.000KN
Resolution	0.001KN
Peak hold, LCD lighting	Yes
Storage	500
Numerical correction	10-segment polyline
Power supply	High capacity lithium battery
Drawing stroke	65mm
Material of the tester	Lightweight alloy
Host quality	2.8kg

Standard Configuration

No.	Item	Qty
1	The tester	1 pc
2	Charger	1 pc
3	Spindle, 50mm (20mm optional)	10 pcs
4	Carrying case	1 pc
5	AB glue (if ship by air or Express we will take it out)	1 pc
6	Reamer	1 pc
