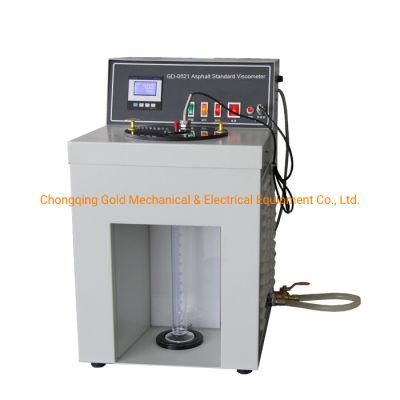

• Model NO.：GD-0621
• Trademark：GOLD
• Origin：China
• Production Capacity：200units,Month

1. Power supply: AC 220 V±10%, 50 Hz2. Circular trough:

(1) Inner diameter: 160 mm

(2) Depth: 116 mm

3. Sample tube:

 four pieces in a set. The diameter of effuse tube is: φ10 mm±0.025 mm,

 φ5 mm±0.025 mm,

 φ4 mm±0.025 mm and φ3 mm±0.025 mm.

4. Ball stopper specification:

A: Diameter of ball: 12.7 mm±0.05 mm; Sign height: 92 mm±0.25 mm.

B: Diameter of ball: 6.35 mm±0.05 mm; Sign height: 90.3 mm±0.25 mm.

5. Temperature controlling range: room temperature~90 ºC.6. Temperature controlling accuracy: ±0.1 ºC7. Time resolution: 0.1 s, maximum time value: 999.9 s

8. Heating type:

 electric heater. Use a circulation pump circulating water bath liquid to

control the temperature

in the circular trough. Heating power is 600 W.

9. Ambient temperature: -10ºC~35 ºC10. Relative humidity: ≤ 85%11. Dimension: length 420 mm, width 340 mm, height 570 mm12. Maximum power consumption: 700 W

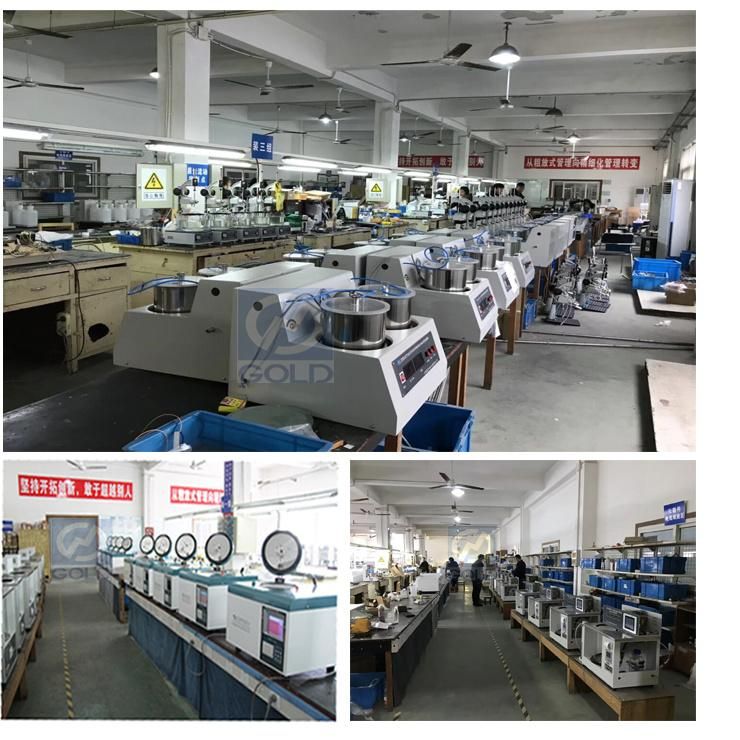

Workshop

Chongqing Gold Mechanical&Electrical Equipment Co.,Ltd is a professional manufacturer of Petroleum Products test kits and

electrical testing equipment in China.Our products are sold to most countries in the world and they are highly popular because our good
quality and after-sale service.

At present, there are more than 150 employees, of whom more than 70% are technical personnel with college degree or above.

With strong technical force and strong development, new products have been launched continuously.

Gold Equipment Service:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days.

We can offer operation video and English operation muanual. We can provide video-con.

Onsite Service:

1.Device installation; 2.Equipment Operation Test Technology training;3.Equipment Calibration;4.Daily maintenance and maintenance of equipment

Free technical training for visiting factories

24-hour Online contact

Free software upgrades

Free information:steel tensile test

1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)

Device Problem Handling:

1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service

Exhibition

We have developed sales channels in many countries such as UAE, Saudi Arabia, Iran, Malaysia, Thailand, Pakistan, India, Germany, Belgium, USA, Mexico, Kenya,

Nigeria, South Africa and other countries worldwide. And we have gained strong advantage and high reputation in international market.

After several years' development, our products have become high intelligent and wide coverage.
And our company has become one of the leadingmanufacturer of petroleum testing instrument and electrical testing instrument.




Please feel FREE to contact us if you have any needs. And welcome to visit our OFFICIAL WEBSITE at:

 http://chinainstrument.en.made-in-china.com
