• Model NO.：GD-510D
• Test Parameters：Pour Point, Cloud Point
• Temperature Control Accuracy：0.5centigrade
• Material of Workbench：Stainless Steel
• Packaging Dimensions：84*69*50cm
• Gross Weight：84kg
• Warranty Period：1 Year
• Delivery Time：10 Working Days
• Transport Package：Wooden Case for Cloud and Pour Point Test Apparatu
• Trademark：GOLD
• Origin：Chongqing, China
• Production Capacity：100sets,Month

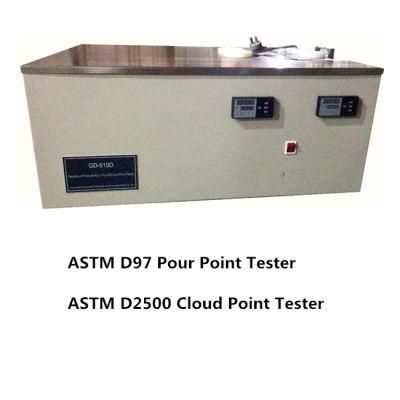

Product nameAutomatic Cloud and Pour Point Test Apparatus ASTM D97 ASTM D2500Power supplyAC 220 V±10%, 50 HzTemperature control of cooling chamber(1) Chamber I: Ambient to -51 ºC, ±1 ºC, temperatures of two cooling baths the same.
(2) Chamber II: Ambient to -70 ºC, ±1 ºC, temperatures of two cooling baths the same.Refrigeration systemNew type refrigeration compressorAmbient temperature≤30 ºCRelative humidity≤85%Maximum power consumption1500 WDimension800*580*400mm

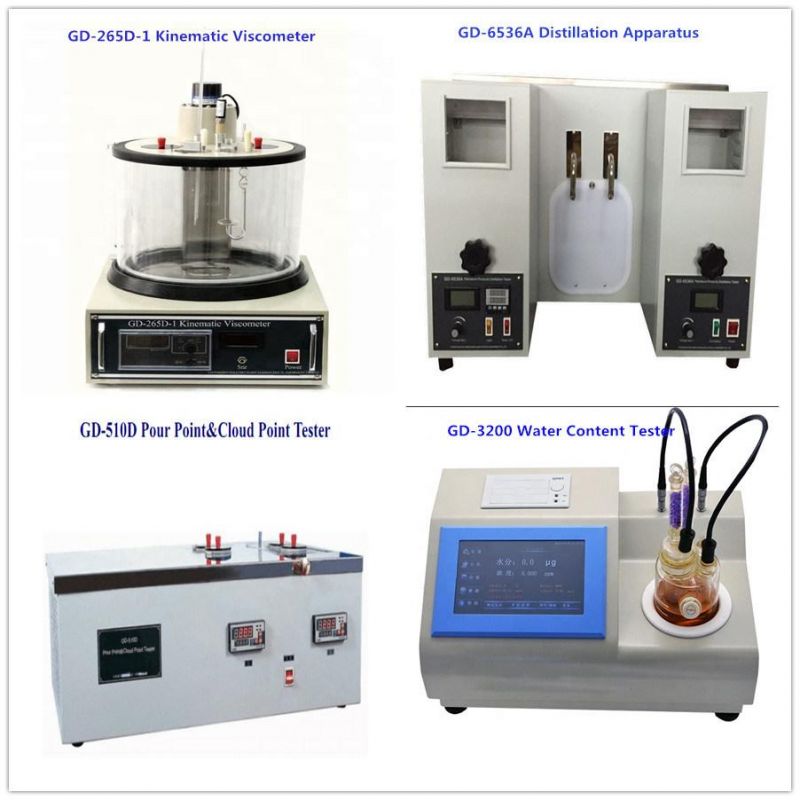

Related Products:

Parameter	GD-510G-1	GD-510D	GD-510F1	GD-2430
Name	Petroleum products solidifying point tester	Petroleum products pour and cloud point tester	Multifunctional low temperature tester	Freezing point tester
Standards	ASTM D6371-05, ASTM D5771-12	ASTM D97, ASTM D2500	ASTM D97, ASTM D2500	ASTM D2386, ASTM D1177
Test parameters	Solidifying point, cold filter plugging point	Pour point, cloud point	Solidifying point, pour point, cloud point, cold filter plugging point	Freezing point
Full scale	Ambient~-70ºC	Ambient~-51ºC Ambient~-70ºC	Ambient~-70ºC	+20ºC~-70ºC
Temperature controlling accuracy	±0.5ºC	±1ºC	±0.5ºC	±0.5ºC
structure	Single trough two baths	Two through four baths	Four trough eight baths	Integrated



Petroleum & Oil Analyzer Petroleum Testing Instruments

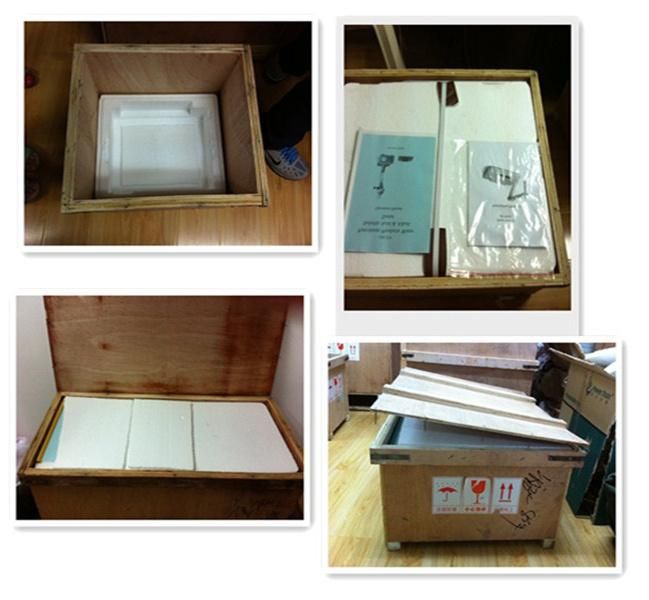

Product Packing:

Company  Information:

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.

We mainly design and manufacture the petroleum testing instrument
After several years' development, our products have become high intelligent and wide coverage. And our company has become one of the leading manufacturer of petroleum testing instrument .
