Laboratory Kinematic Viscosity Test Instrument for Asphalt

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.

Type：Kinematic Viscosity Test Apparatus
Accuracy Grade：0.1 Celsius
Display：Digital
Control：Manual Control
Weight：0-100Kg
Power Source：AC220V

Base Info

Model NO.：GD-265C
Oil Cylinder Position：Top
Product Name：Laboratory Kinematic Viscosity Test Instrument
Auto./Manual：Manual
Temperature Range：Ambient~100celsius
Temp. Control Precision：0.01celsius
Temp. Control Method：Continuous
Single/Double Glass Tank：Double
Sample Quantity：4
Timing Function：No
Auto-Calculate and Print：No
Size：530*400*670mm
Transport Package：Wooden Case for Kinematic Viscosity Test Instrumen
Trademark：GOLD
Origin：Chongqing, China
Production Capacity：100 Sets, Month

Description

Product nameLaboratory Kinematic viscosity Test Instrument for AsphaltPower supplyAC(220±10%)V, 50Hz±5%Heating power1600WStirring motor6W, 1200RPMTemperature control rangeAmbient to 100ºCTemperature control accuracy±0.1ºCConstant temperature bath20L,double shell structureWorking environmentAmbient temperature: room temperature~35ºC
Relative humidity: ≤85%Temperature sensorRTD, Pt100Maximum power consumption1800WCapillary viscometer tubes (Pinkevitch viscometer)7 pieces in total, inner diameter for each: 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mmDimension530*400*670mm

Note: This instrument is equipped with 7 pieces of Pinkevitch viscometer tubes. We can customize instrument equipping with Cannon-Fenske Opaque(or Routine)Viscometer tubes according to customer's requirements.

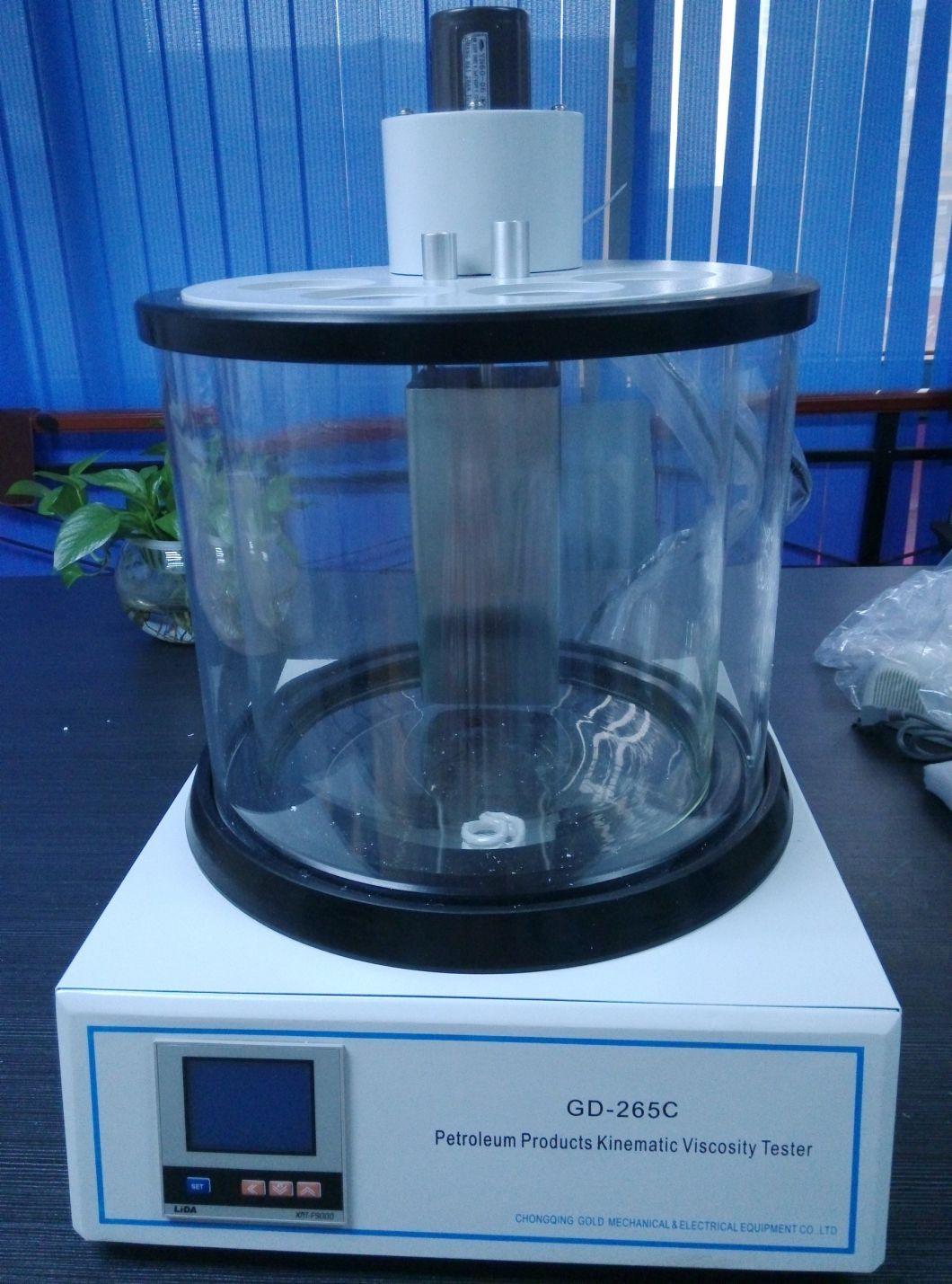

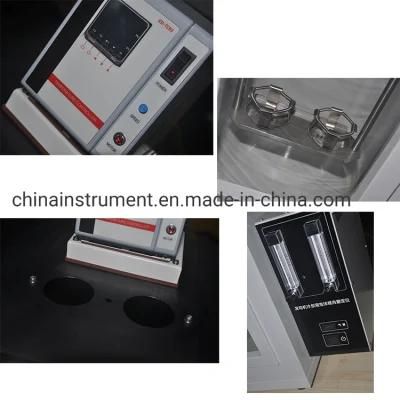

Detail Images:

Laboratory Kinematic Viscosity Test Instrument for Asphalt

Petroleum & Oil Analyzer Petroleum Testing Instruments
Laboratory Kinematic Viscosity Test Instrument for Asphalt
