• Model NO.：GDSX-200
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Reference Standard：ASTM D2699-86, ASTM D2700-86, ASTM D4737-03
• Testee：Motor Gasoline and Diesel
• The Measurement Unit of Octane Is on：40-120
• Permissible Error of Octane：+,-0.5
• Fluctuate Range of Octane：+,-0.2
• The Measurement Unit of Cetane Is Cn：20-100
• Permissible Error of Cetane：+,-1
• Fluctuate Range of Cetane：+,-0.5
• Measurement Duration (Second)：<20
• The Display：LED Screen
• Transport Package：Wooden Case
• Specification：210mm*350mm*400mm
• Trademark：GOLD
• Origin：Made in China
• HS Code：9031809090
• Production Capacity：200units,Month

Basic Info.

Model NO. GDSX-200 Loading Method Dynamic Load Display Digital Control Computer Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Under Reference Standard ASTM D2699-86, ASTM D2700-86, ASTM D4737-03 Testee Motor Gasoline and Diesel The Measurement Unit of Octane Is on 40-120 Permissible Error of Octane +/-0.5 Fluctuate Range of Octane +/-0.2 The Measurement Unit of Cetane Is Cn 20-100 Permissible Error of Cetane +/-1 Fluctuate Range of Cetane +/-0.5 Measurement Duration (Second) <20 The Display LED Screen Transport Package Wooden Case Specification 210mm*350mm*400mm Trademark GOLD Origin Made in China HS Code 9031809090 Production Capacity 200units/Month

Product Description

Portable Octane / Cetane Analyzer for testing the octane quality of gasoline and fuel blending components

Introduction:

GDSX-200 Octane / Cetane Meter is a new generation detector for octane and cetane measurement, with international advanced theory, it can measure the oil's octane and cetane precise value rapidly, store large amount of data; and all the results are printable. The interface is user-friendly. Its sensors adopt full-sealed design with alloying metal. With longer standby-cyclic charging battery, it applies in operation site, outdoor and laboratory .


Features:

1. GDSX-200 Octane / Cetane Meter can measure both of gasoline's octane value and diesel's cetane value.
2. Rapid and precise measurement, user-friendly operation, larger screen with Chinese language, EL background light make it's easier under dark environment, Chinese menu is also available.
3. Tree years quality guarantee for circuit board: we promise for free replacement within three years for any non-artificial quality problems. The sensors adopt full-sealed design with alloying metal. External cover has high strength, shock resistance and water/dust/moisture proof performance. As well as sponge inside.
4. Upper and lower limits pre-setting are available, the monitor will display when it's over the limit, which is convenient for the users.
5. Auto-off function can save energy and realize low power consumption. There are 4 reliable batteries for recycling charging.


Measurement Theory:

The theory of octane and cetane detector is based on the measurement of insulate-magnetic permeability and feature of electron-magnetic induction. By detecting the dielectric medium of oil and comparing with the data model, the detector can measure out the value of octane and cetane. The precise sensors can measure out parameters fluctuation of the tiny mediums, then get the result of octane and cetane.


Technical Parameters:

1. Measurement item: motor gasoline and diesel
2. Measurement of octane reach standards: ASTM D2699-86, ASTM D2700-86.
3. Measurement of diesel's cetane reach standards: ASTM D4737-03
4. Operation condition: temperature of -10ºC~+40ºC, relative humidity of 30%~81%R.H., barometric pressure of 64~106kPa.


NO.	Parameters Description	Value
1	The measurement unit of octane is ON (adjustable as users needed)	40-120
2	Permissible error of octane, per unit (max)	±0.5
3	Fluctuate range of octane, per unit (max)	±0.2
4	The measurement unit of cetane is CN (adjustable as users needed)	20-100
5	Permissible error of cetane, per unit CN (max)	±1
6	Fluctuate range of cetane, per unit CN (max)	±0.5
7	Measurement duration (second)	<20
8	Critical value for battery when voltage is too low, V	2.5
9	Monitor, mm(L×W×H)	224x106x40
10	Sensor, mm	60х100
11	Weight, Kg (max)	5
12	Operation duration (unit: hour)	15
13	Display	LED screen, printable result
14	Power consumption	30ma

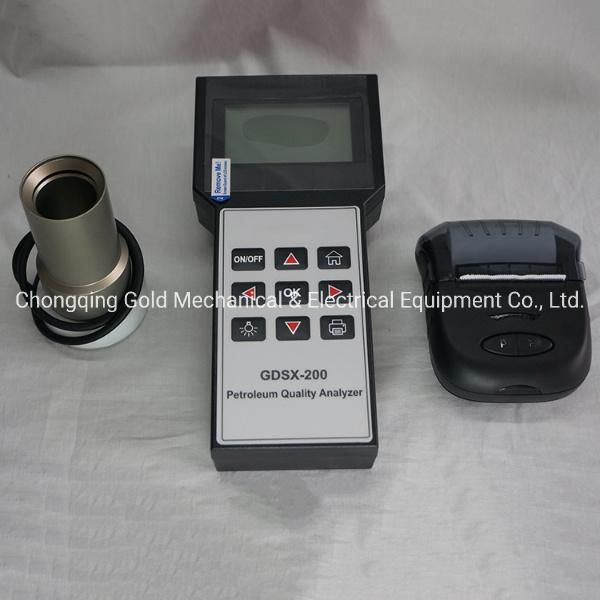

Portable Octane Number and Cetane Number Analyzer:
