• Model NO.：MYK-2150
• Production Capacity：5000pieces,Month

Basic Info.

Model NO. MYK-2150 Production Capacity 5000pieces/Month

Product Description

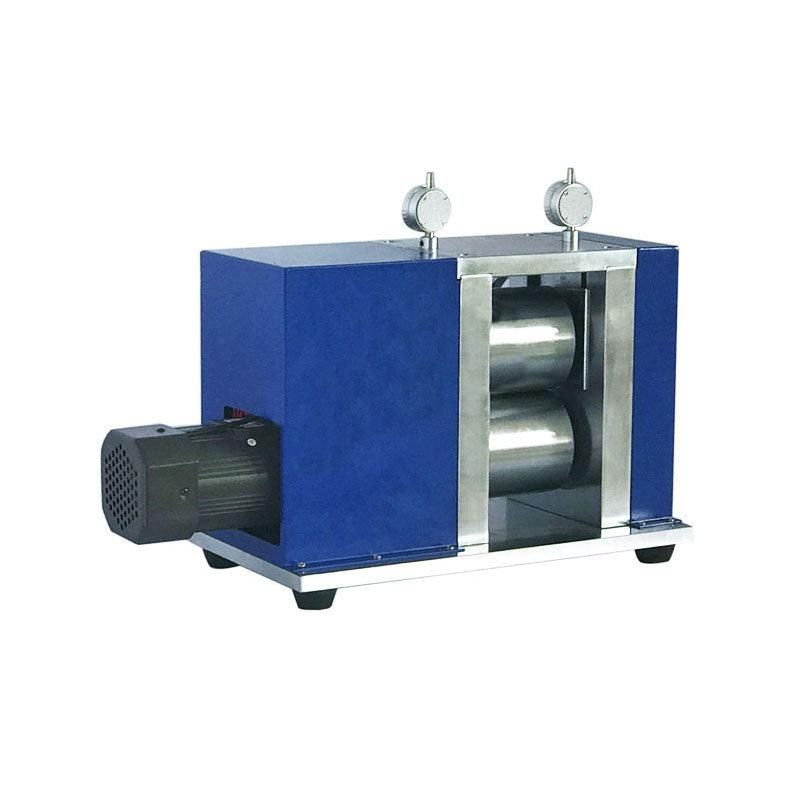

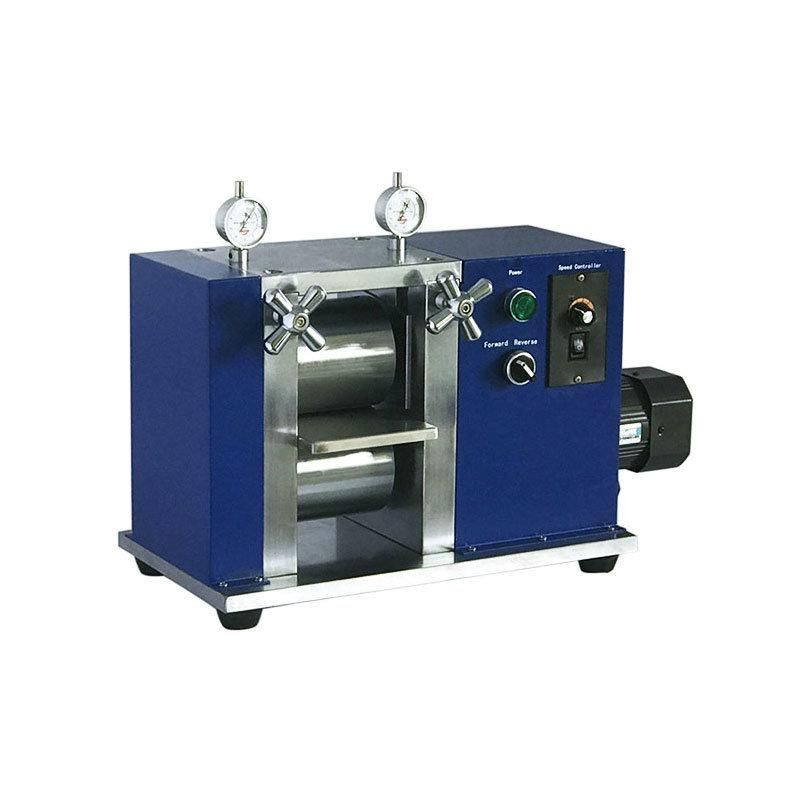

MYK-2150 is a 150mm width ( 6") precision electric rolling press with a compact body.

It is an ideal rolling press for adjusting thickness and increasing active material density of the

 electrodes in Li-Ion batteries research after coating and drying.
Features:

• Rollers can be rotated back and forth.
• Plexiglas safety barricade.
• Thickness can be adjusted freely, easy to operate.

Specification of the electric rolling press:

Structure	Heavy duty steel frame, gears and handle Roller size: 150mm width x 94mm dia ( dual rollers), made from hardened  tool steel (RC > 60) with Cr electroplated coating Dual micrometer for accurate thickness adjustment in the range 0 - 1.5 mm Built in tool box for easy operation & safety barricades  (infront and behind rollers) minimize injury during operations
Rolling Width	0~150mm
Rolling Speed	35 mm/ second (Constant) Forward, Stop and backward Switchable
Motor	AC120W
Working Voltage	AC 208-240V single phase, 50Hz 220V AC Power plug is not included.
Overall Dimensions	520mm(L) x 220mm(W) x 320mm(H)
Net Weight	100kg
Shipping Weight & Dimensions	250 lbs, 40"x30"x26"
Compliance	CE Certified
Warranty	One year limited with lifetime support Rusting and damage due to improper storage condition or maintenance is  not covered by warranty

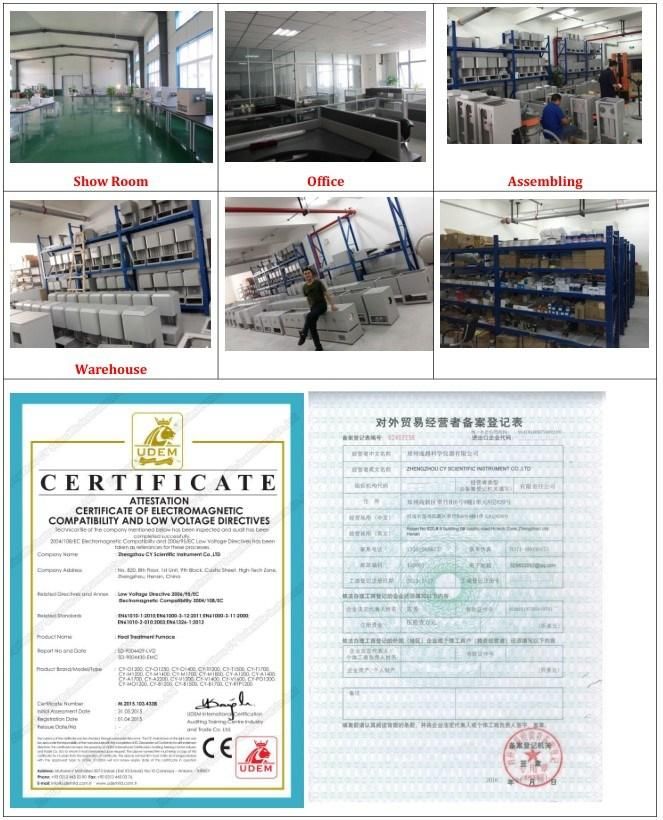

Factory
