• Model NO.：GW-006
• Loading Method：Static Load
• Display：Digital
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Electric Control
• Packaging：Wooden Case
• Export Markets：Global
• Model No：Gw-006
• Specimen Size：25.4*25.4mm
• Drum Diameter：150mm
• Speed：45+,-5 Rpm
• Load：22n
• Transport Package：Standard Export Safety Packing
• Specification：53*43*43cm
• Trademark：Great Win
• Origin：China
• HS Code：9024800000
• Production Capacity：500 Pieces,Year

Basic Info.

Model NO. GW-006 Loading Method Static Load Display Digital Control Manual Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Electric Control Packaging Wooden Case Export Markets Global Model No Gw-006 Specimen Size 25.4*25.4mm Drum Diameter 150mm Speed 45+/-5 Rpm Load 22n Transport Package Standard Export Safety Packing Specification 53*43*43cm Trademark Great Win Origin China HS Code 9024800000 Production Capacity 500 Pieces/Year

Product Description

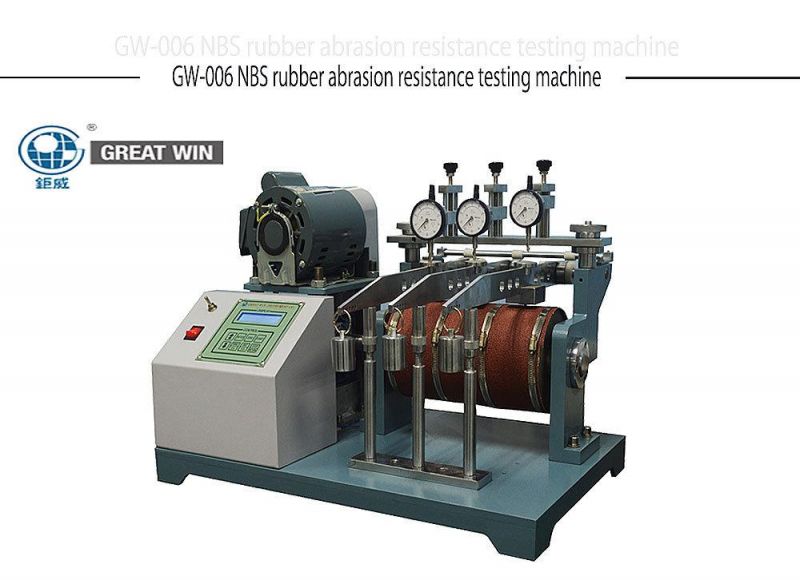

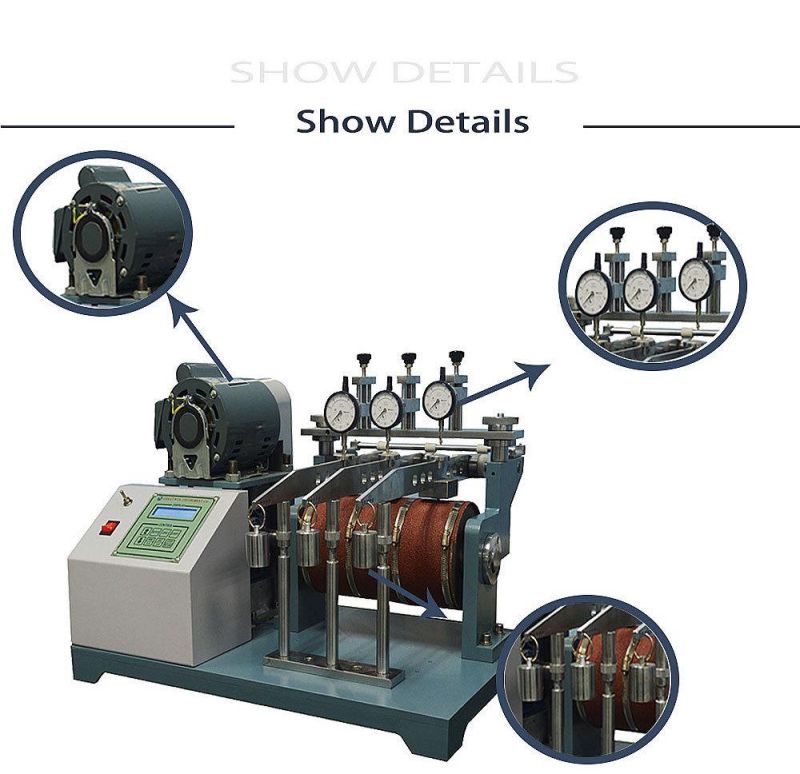

 NBS rubber abrasion resistance testing machine/Equipment(GW-006 )

 •Brief introduction:
This tester is used to determine the resistance to abrasion of rubber products and sole materials. Mount specimens on this machine and rub specimens by the rotating abrasive paper, and then their abrasion condition will be checked out.

 •Technical Specifications:

Model	GW-006 NBS rubber abrasion resistance testing machine
Specimen size:	25.4mm×25.4mm.
Drum diameter:	150mm.
Speed:	45±5RPM.
Load:	22N
Abrasive paper:	40 #.
Dimension:	68*51*47cm
Weight:	83kg
Power:	AC220V, 3A

 •Standard for :
ASTM-D1630

 •Attached accessories:
1pc vacuum cleaner
1pc standard die mould
3pcs standard rubber
2pcs standard abrasive paper
1pc brush




What about the product quality?
For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.

What about usage of the machine?
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.

What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.

What about standards support?
We are strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB ect, and had been recognized by SATRA, CSA international standard agency.
