• Model NO.：STLH-1
• Loading Method：No
• Display：Digital
• Control：Digital
• Weight：25kg
• Power Source：AC220V
• Oil Cylinder Position：No
• Product Name：Stlh-1 Air Entrainment Meter
• Application：Used to Determine Air Content in Concrete Mixture
• Capacity：7 Liter
• Aggregate Size：40mm Maximum
• Readings：up to 10% Entrained Air
• Pressure Gauge：in Shock-Proof Mounting
• Pressure Chamber：Is Hermetically Sealed by Means Fo Four Quick-Rele
• Dimension：370*370*550mm
• Transport Package：Wooden Case
• Specification：66*36*30
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STLH-1 Loading Method No Display Digital Control Digital Weight 25kg Power Source AC220V Oil Cylinder Position No Product Name Stlh-1 Air Entrainment Meter Application Used to Determine Air Content in Concrete Mixture Capacity 7 Liter Aggregate Size 40mm Maximum Readings up to 10% Entrained Air Pressure Gauge in Shock-Proof Mounting Pressure Chamber Is Hermetically Sealed by Means Fo Four Quick-Rele Dimension 370*370*550mm Transport Package Wooden Case Specification 66*36*30 Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

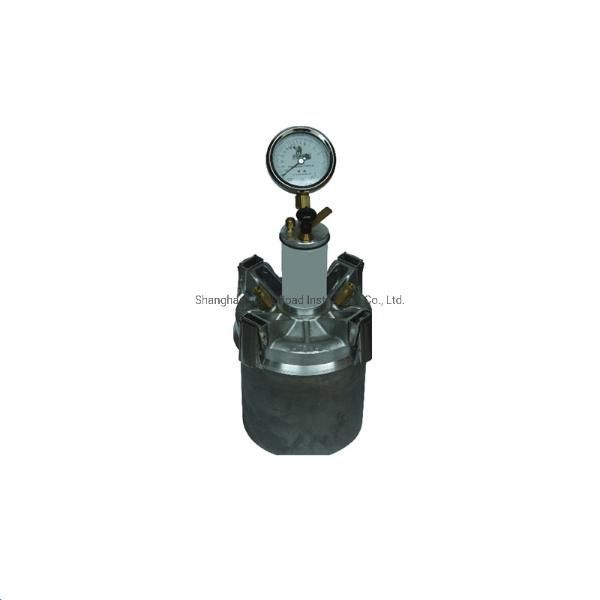

STLH-1 7L Forney air entrainment meter /air content meter/air entrainment meter



STANDARD: EN 1350-7,BS 1881-106,ASTM C231

Application: used to determine air content in concrete mixtureThe proper control of entrained air in concrete is recognized as one of the most important functions in modern concrete manufacture.

The air meter unit consists of 2 main parts: the base(measuring chamber) and the cover assembly. The cast aluminum base has machine-flanged rim. The interior surfaces of the base and surfaces of rims, flanges and other component parts are machined to facilitate frequent water clean-up. The unit is designed for easy disassembly in order to replace worn or damaged parts in the field.



Capacity	7 liter
Aggregate size	40mm maximum
Readings	Up to 10% entrained air
accuracy	+/-0.1/0.2% accuracy(6%-10% of air content)
Pressure gauge range	0.1MPa
Packing	Aluminum alloy box
Feature	Pressure gauge in shock-proof mounting                                   Pressure chamber is hermetically sealed by means fo four quick-release clamps
dimension	dia.370x370x500mm   10kg Packing Weight: 25kg
