Computerized Electro-Hydraulic Servo Universal Testing Machine (WAW-100B)

SHAOXING KARE INSTRUMENT EQUIPMENT CO., LTD.
  • Type：Universal Testing Machine
  • Maxcapacity：100kn
  • Accuracy Grade：1
  • Display：Computer
  • Control：Computer Control
  • Weight：1000-2000Kg

Base Info

  • Model NO.：WAW-100B
  • Power Source：AC380V
  • Oil Cylinder Position：Under
  • Column Number：2
  • Lead Screw Number：2
  • Transport Package：Wooden Case
  • Origin：Zhejiang
  • HS Code：9024101000
  • Production Capacity：20 Sets,Month

Description

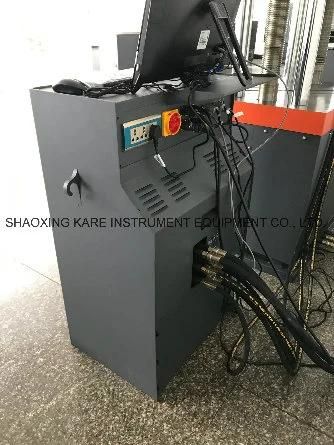

WAW-100BMax. testing force100KNMeasuring range2~100KNMin. resolution0.01KNMax. tensile test space600mmFlat sample holding thickness0-15mmDiameter of round specimen6-20mmPiston stroke200mmUpper and lower platen size (mm)Φ235Bending test pressed rolling distance30~460mmTensile and compression space between two columns≥440mmMax. platen rise speed≥70mm/minMax. moving beam speed≥300mm/minMotor power≈2KWMain body dimension (L×W×H) (mm)740×460×1965Control & measurement cabinet dimension(L×W×H) (mm)1080×650×1200Weight≈1700KgNoise≤75dB
