• Model NO.：BTKS5-SERIES
• Temperature Range：-70ºC~+150ºC
• Temperature Fluctuation：±0.5ºC
• Humidity Fluctuation：±2%Rh
• Temperature Deviation：≤2.0ºC
• Temperature Uniformity：≤±2.0ºC
• Transport Package：Each Set Protected with Resin Fiber and PP Film, T
• Specification：Test Space500x600x500(customizable)
• Trademark：DGBELL
• Origin：Guangdong China
• HS Code：8419899090
• Production Capacity：100set ,Month

W x H x D (mm)External DimensionW750xH1780xD1500mmCooling ModeAir-cooledAir-cooledAir-cooledWater-cooledWater-cooledPower Source8KW10KW13KW30KW32KWTemperature Range-70ºC~+150ºC(Adjustable)Humidity Range20%RH-98%RH (details see temperature humidity control diagram).Temperature Fluctuation±0.5ºCHumidity Fluctuation±2%RHTemperature Deviation≤2.0ºCHumidity DeviationA)>75%RH:≤+2,-3%RH,B)<75%RH:≤±5%RH.Temperature Uniformity≤±2.0ºCHumidity Uniformity+2,-3%RHHeating RateFrom -40ºC to 85ºC,full range non-linear average about5ºC/mins,no loadCooling rateFrom 80ºCto -40ºC ,full range non-linear average about5ºC/mins,no loadTemperature Overshoot≤±2ºCInternal Material1.2mm thick SUS#304 temperature resistance stainless steel.External MaterialGalvanized plate with Double-sided electrostatic powder coating.Control ModeTouch screen programmable PLC, with USB interface, with RJ485 interface can be connected to computer controlling, special network control software, convenient remote monitoring, data acquisitioning.CompressorTecumseh (France)-fully air-cooled double-fall cooling compressor. Or Bock (Germany) semi-enclosed air-cooled refrigeration.Safety ProtectionExplosion-proof pressure relief device, explosion-proof chain, mobile phone alarm device, networking, smoke exhaust device, fire extinguishing device, etc.

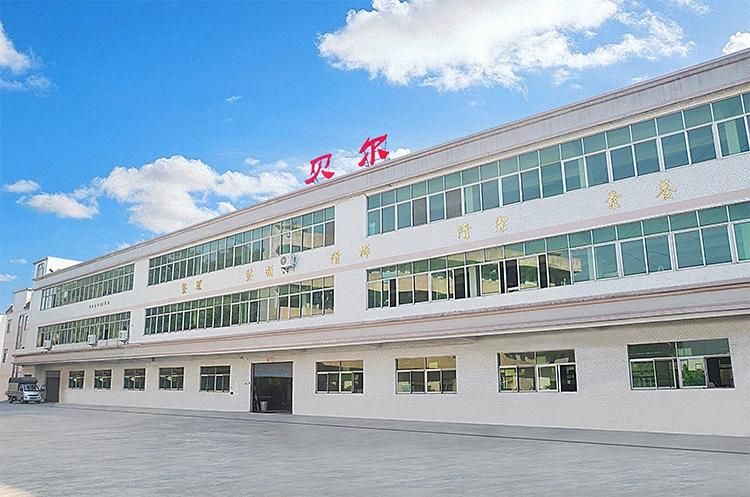

Established in 2005, Guangdong Bell Experiment Equipment Co., Ltd is specialized in manufacturing a variety of quality inspection instruments, testing equipments and other high-tech products which mainly include: Constant Temperature & Humidity Test Chamber,High & Low Temperature Test Chamber, High & low Temperature Testers with Rapid Temperature Change, Walk-In humidity & temperature test chamber, Cool/Thermal shock test chamber, Salt spray chamber, High temperature aging tester, sand and dust testing machine,tension tester, high and low temperature testing machine , servo computer battery crush tester, mechanical vibration testerBattery washing tester ,battery burning tester and other quality testing instruments. Thanks to several decades of R&D efforts,the company has established itself as a leading provider of testing instruments of the industry, playing a crucial role in the research and development of high-quality and high-value products within the industry.

15+ years experience in test chambers manufacturing, High performance for your projects.

With unmatched quality advantage, a dynamic management team, professional customer services, superb manufacturing techniques and innovative research and development ideas, Guangdong Bell Experiment Equipment Co., Ltd, supported by an international, standard and professional quality policy, is gradually becoming an international brand. Its products are manufactured in consistent with a number of world standards.

Complete QC inspection process,Guarantee high quality of each machine.

1.IQC Incoming Quslity Control2.IPQC InPut Process Quality Control
3.FQC Final Quality Control
4.OQC Outgong Quality Control

Our service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual.
Onsite Service:
1.Device installation; 2.Equipment Operation Test Technology training;
3.Equipment Calibration;
4.Daily maintenance and maintenance of equipment Free technical training for visiting factories 24-hour Online contact Free software upgrades
Free information:
1.Product Instruction;
2.Product operation instruction/video;
3.Experiment Test (test application, test report)
Device Problem Handling:
1.Social media 24 hours online communication;
2.Email contact;
3.Video Conferencing;
