• Model NO.：BE-8103
• Power Source：AC220V
• Transport Package：Each Set Protected with Resin Fiber and PP Film, T
• Specification：Test Space600x500x780(customizable)
• Trademark：DGBELL
• Origin：Guangdong China
• HS Code：8514109000
• Production Capacity：100set ,Month

Temperature RangeControlling Accuracy±0.5ºCTemperature Deviation±2.0ºC, No loadHeating RateRT~150°C (Linear 5°C/min)Control DisplayPLC touch type (7 inch) + remote controlWorking Cabinet DimensionW600XD500XH600 mmExternal DimensionW940XD780XH1620 mmInner Chamber MaterialSUS304 Stainless steel with mirror-finishExternal Chamber MaterialSECC steel plate, fine powder paint coating (thickness 1.5mm)BottomWith universal wheelObservation Window390 X 360mm (20mm thick explosion-proof glass, explosion-proof mesh)Insulation MaterialImported high-density glass wool, good heat insulation, to ensure maximum temperature insulation, tight sealing materials for high temperature resistant silicone, withstanding high temperatures over 300 degrees for a long timeTerminal HoleDiameter 50mm Terminal hole on the left and right sidesPower Supply220V / 50HZ / 4.0KWUSB InterfaceWith USB interface, the test data can be exportedAuxiliary FunctionExplosion-proof pressure relief device, smoke exhaust device, explosion-proof lighting device, electronic door lock system, safety stop switch


The heating test of battery thermal abuse test chamber shall be carried out as follows

1.Relevant standard test requirements

Single battery safety test

The heating test is carried out as follows:

• The single battery is charged according to the method of 6.1.3
• Put the single battery into the temperature chamber.
• For lithium-ion batteries, the temperature chamber is increased from room temperature to 130 ° C ± 2 ° C at a rate of 5 ° C / min, and the heating is stopped after maintaining the temperature for 30 minutes.
• For nickel metal cyanide batteries, the temperature chamber is raised from room temperature to 85 ° C ± 2 ° C at a rate of 5 ° C / min, and the heating is stopped after maintaining this temperature for 2h.
• Observe for 1h.



2.Battery module safety test

• The battery module battery shall be charged according to the method in 6.1.4.
• For lithium-ion batteries, the temperature chamber is raised from room temperature to 130 ° C ± 2 ° C at a rate of 5 ° C / min, and the heating is stopped after maintaining this temperature for 30 minutes.
• For nickel metal cyanide batteries, the temperature chamber is raised to 85 ° C ± 2 ° C at room temperature at a rate of 5 ° C / min, and the heating is stopped after maintaining this temperature for 2h.
• Observe for 1h.

Established in 2005, Guangdong Bell Experiment Equipment Co., Ltd is specialized in manufacturing a variety of quality inspection instruments, testing equipments and other high-tech products which mainly include: Constant Temperature & Humidity Test Chamber,High & Low Temperature Test Chamber, High & low Temperature Testers with Rapid Temperature Change, Walk-In humidity & temperature test chamber, Cool/Thermal shock test chamber, Salt spray chamber, High temperature aging tester, sand and dust testing machine,tension tester, high and low temperature testing machine , servo computer battery crush tester, mechanical vibration testerBattery washing tester ,battery burning tester and other quality testing instruments. Thanks to several decades of R&D efforts,the company has established itself as a leading provider of testing instruments of the industry, playing a crucial role in the research and development of high-quality and high-value products within the industry.

15+ years experience in test chambers manufacturing, High performance for your projects.

With unmatched quality advantage, a dynamic management team, professional customer services, superb manufacturing techniques and innovative research and development ideas, Guangdong Bell Experiment Equipment Co., Ltd, supported by an international, standard and professional quality policy, is gradually becoming an international brand. Its products are manufactured in consistent with a number of world standards.

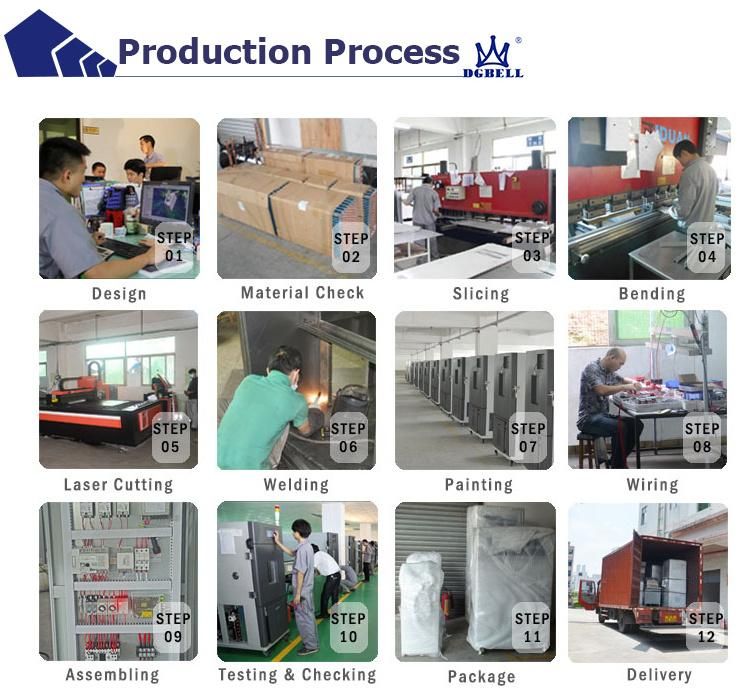

Complete QC inspection process,Guarantee high quality of each machine.

1.IQC Incoming Quslity Control2.IPQC InPut Process Quality Control
3.FQC Final Quality Control
4.OQC Outgong Quality Control

Our service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual.
Onsite Service:
1.Device installation; 2.Equipment Operation Test Technology training;
3.Equipment Calibration;
4.Daily maintenance and maintenance of equipment Free technical training for visiting factories 24-hour Online contact Free software upgrades
Free information:
1.Product Instruction;
2.Product operation instruction/video;
3.Experiment Test (test application, test report)
Device Problem Handling:
1.Social media 24 hours online communication;
2.Email contact;
3.Video Conferencing;
