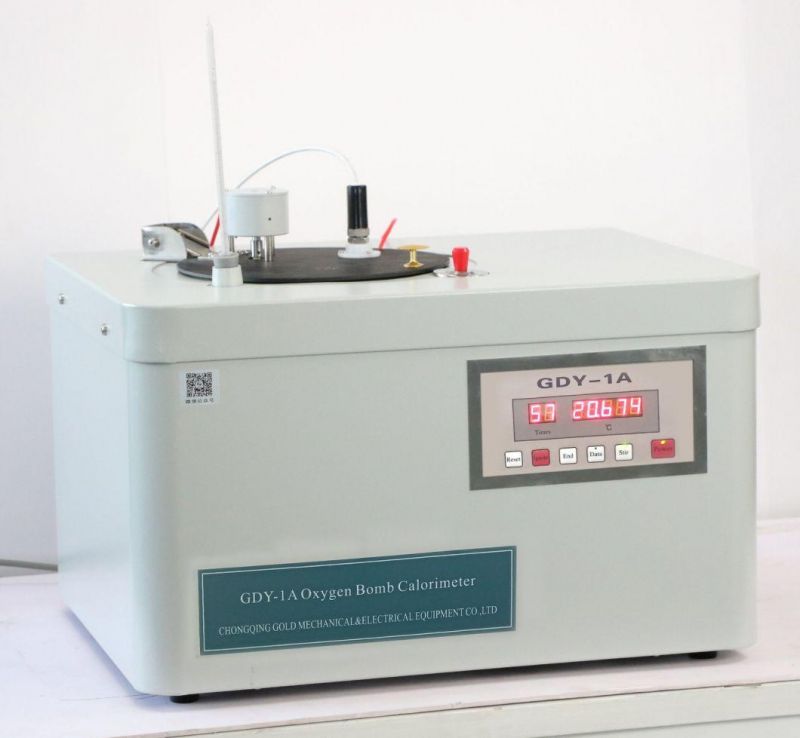

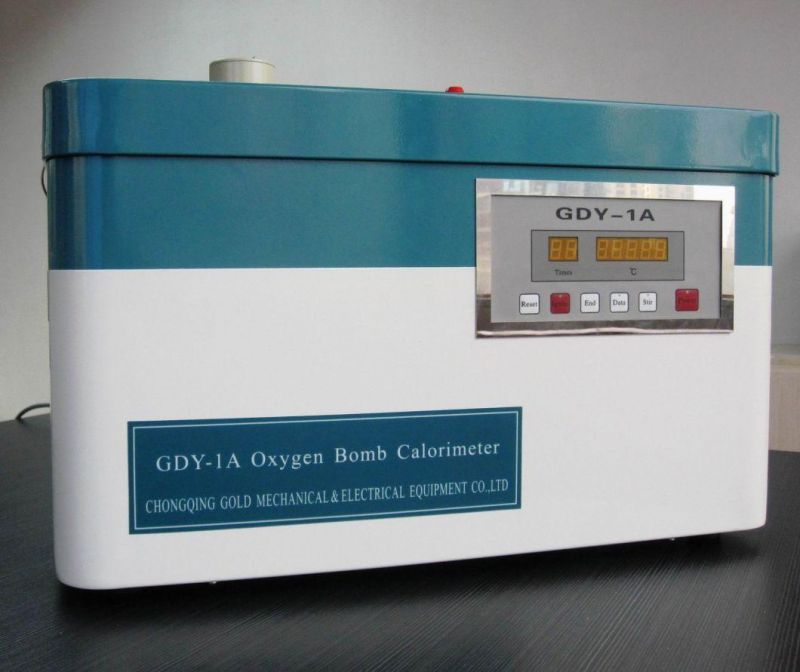

• Model NO.：GDY-1A
• Computer Interface：No
• Printing：No
• Dimension：600*460*430mm
• Delivery Time：10 Working Days(If Urgent, We Can Push)
• Transport Package：Wooden Case for Gdy-1A
• Trademark：GOLD
• Origin：Chongqing, China
• Production Capacity：100 Sets, Month

Product name

Heat capacity

(14000 ~ 15000)J/K

Temperature resolution

0.001 K

Thermal error

≤60J/g

Temperature measurement range

10 ºC~35 ºC

Repeatability error

≤0.2% (Grade C)

Pressure endured by Oxygen bomb

20 MPa

Ambient temperature

15 ºC~28 ºC (room temperature),
The temperature fluctuation during each test should be not more than 1 ºC

Storage Temperature data

31

Ambient humidity

less than 85%

Power supply

AC(220±5%)V,50Hz

Total power consumption

less than 150W

Dimensions

600 mm × 460 mm × 430 mm (length × width × height, PC is not included)

Note: If the test sample is pulverized coal samples, in order to obtain better test results,
we recommend separately of the company's private press cake machine.

Relative Products:

Parameter

GDY-1A

GDY-1A+

GDY-1C

Feature

Manual

Digital with color LCD display

Fully automated controlled by PC

Heat capacity

(14000~15000)J/K

(14000~15000)J/K

(14000~15000)J/K

Temperature  resolution

0.001K

0.001K

0.001K

Thermal error

≤60J/g

≤60J/g

≤60J/g

Repeatability error

≤0.2%(Grade C)

≤0.2%(Grade C)

≤0.2%(Grade C)

Pressure endured by oxygen bomb

20MPa

20MPa

20MPa

Computer interface

no

no

yes

Printing

no

With built-in printer

With external printer

Dimension

600*460*430mm

600*460*430mm

600*460*430mm

(PC is not included)

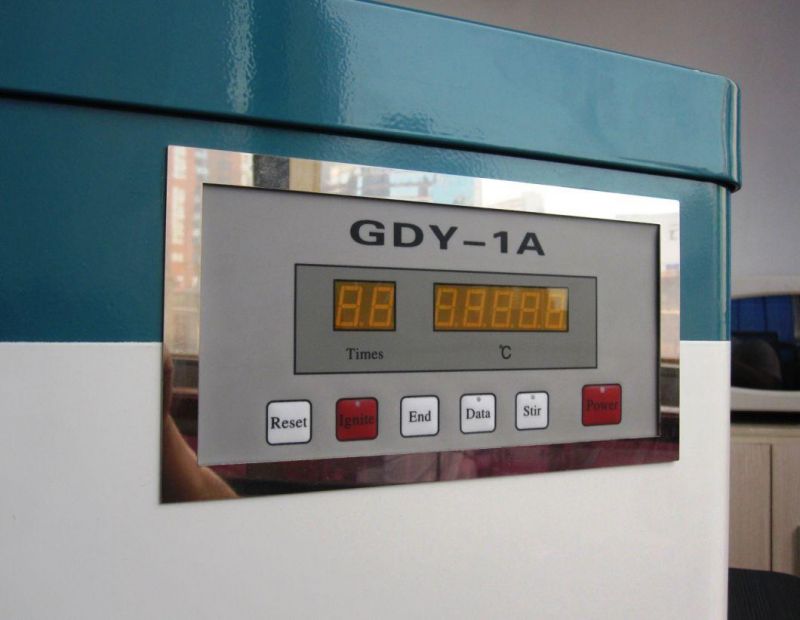

Detail Images:





Exhibition:
We have developed sales channels in many countries such as UAE, Saudi Arabia, Malaysia, Thailand, Pakistan, India, Germany, Belgium, USA, Mexico, Kenya,Nigeria, South Africa and other countries worldwide. And we have gained strong advantage and high reputation in international market.
After several years' development, our products have become high intelligent and wide coverage.
And our company has become one of the leading manufacturer of petroleum testing instrument
