• Model NO.：GW-051C
• Loading Method：Static Load
• Display：Digital
• Control：Manual Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Electric Control
• Packaging：Wooden Case
• Export Markets：Global
• Model No：Gw-016b
• Testing Temperature：-40 to 100 Deg
• Humidity Range：30% to 90% Rh
• Temperature Accuracy：+,-0.2 Deg
• Humidity Accuracy：+,-2.5% Rh
• Heating up Speed：-20 to +100 Deg Within 45 Minutes
• Cooling Down Speed：+20 Deg to -20 Deg Within 55 Minutes
• Power：AC 380V
• Transport Package：Standard Export Safety Packing
• Specification：108× 147× 111cm
• Trademark：Great Win
• Origin：China
• HS Code：9024800000
• Production Capacity：500 Sets,Year

Basic Info.

Model NO. GW-051C Loading Method Static Load Display Digital Control Manual Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position Electric Control Packaging Wooden Case Export Markets Global Model No Gw-016b Testing Temperature -40 to 100 Deg Humidity Range 30% to 90% Rh Temperature Accuracy +/-0.2 Deg Humidity Accuracy +/-2.5% Rh Heating up Speed -20 to +100 Deg Within 45 Minutes Cooling Down Speed +20 Deg to -20 Deg Within 55 Minutes Power AC 380V Transport Package Standard Export Safety Packing Specification 108× 147× 111cm Trademark Great Win Origin China HS Code 9024800000 Production Capacity 500 Sets/Year

Product Description

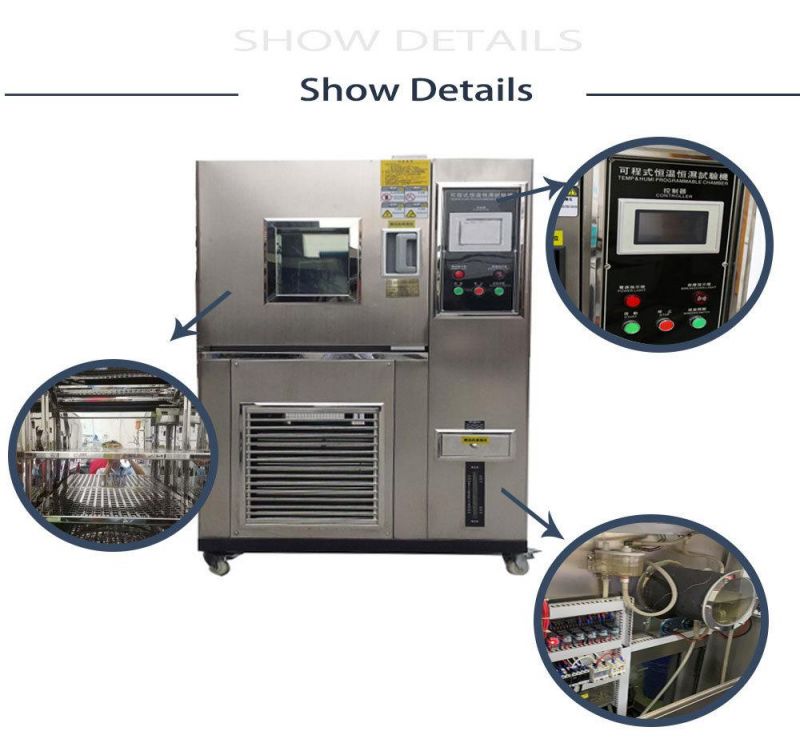

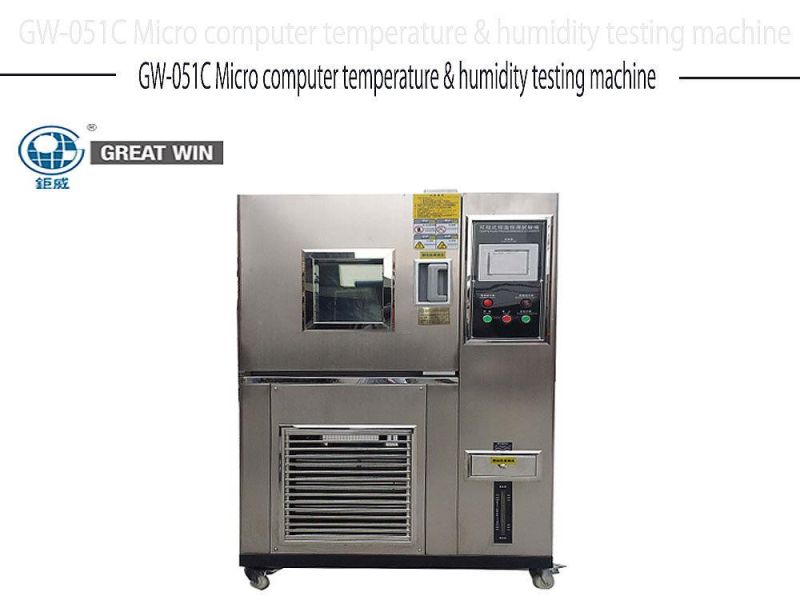

GW-051C Micro computer temperature & humidity testing machine


•Brief introduction:
It's also called environment tester for testing functions of heat endurance, cold-endurance, drought-endurance, wet-endurance suitable for quality control of factories of electronics, foodstuffs, automobiles, metal, etc.

•Technical Specifications:

Model	GW-051 C Micro computer temperature & humidity testing machine
System:	balanced temp. & humidity control system
Temperture. range:	-40ºC --- +100ºC
Humidity range:	20---98%R.H
Temp. accuracy:	±0.2ºC
Humidity accuracy:	±2.5%R.H
Heating up:	-40ºC+100ºC within 45minutes
Heating down:	+20ºC-20ºC within 55minutes
Insider size:	50×40×50cm
Dimension:	115×87×165cm
Power:	4KW
weight:	206KG

•Standard:
JIS K630 K7212,ASTM D2436,E145,JTTC SPEC 151,CNS3556




What about the product quality?
For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.

What about usage of the machine?
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.

What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.

What about standards support?
We are strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB ect, and had been recognized by SATRA, CSA international standard agency.
