Salt Spray Corrosion Environment Testing Chamber for PV Module

Dongguan Hong Tu Instrument Co., Ltd.
  • Max Diameter of Workpiece：Without
  • Mass Scope of Workpiece：Without
  • Type：Salt Spray Corrosion Testing Chamber
  • Maxcapacity：Without
  • Accuracy Grade：0.5
  • Load Way：Mechanical Load

Base Info

  • Model NO.：HTPV-11A1
  • Loading Method：Static Load
  • Display：Digital
  • Control：Pid Control
  • Weight：500-1000Kg
  • Power Source：AC380V
  • Oil Cylinder Position：Without
  • Products Name：Salt Spray Corrosion Testing Chamber
  • Materials：Stainless Steel SUS 304
  • Certificate：ISO and SGS
  • Standard：UL1703
  • Application：PV Module
  • Function：It′s Use PV Module′s Corrosion Testing
  • Delivery：30 Work Days
  • Packages：Export Wooden Case
  • Temperature Range：55
  • Relative Humidity：30%~95%
  • Transport Package：Export Wooden Case
  • Specification：Accoring ot UL1703 standard
  • Trademark：HOTOTECH
  • Origin：Dongguan China
  • HS Code：9013809000
  • Production Capacity：50 Sets Per Month

Description

Testing sample quantity2 PCSTemperataure rangeRT-55ºCPressure barrel temperatureRT-63ºCRelative humidity30%~95%Relative humidity deviation+2%, -3%Temperature resoluation0.1ºCTemperature deviation±1ºCTemperature uniformity≤2ºCTemperature fluctuation ≤±1ºCSalt deviation≤±1%Spray quantity1-2ml/80cm3PH value6.5-7.2

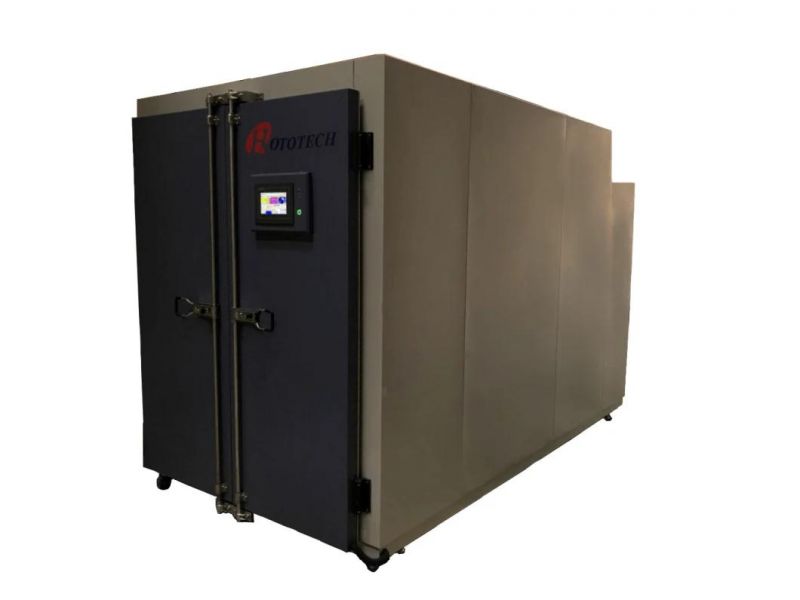

Testing machine images show
Salt Spray Corrosion Environment Testing Chamber for PV Module


Customer Visit
Salt Spray Corrosion Environment Testing Chamber for PV Module

Packages show
Salt Spray Corrosion Environment Testing Chamber for PV Module
