• Model NO.：GDSL-5000D
• Weight：100-500Kg
• Power Source：AC220V
• product name：5000A Primary Current Injection Test Set
• Output Voltage：6V
• Input voltage：AC380V, Single phase, 50Hz.
• Timer range：0.001-99999ms
• Capacity：30kVA
• Warranty：1 year
• Transport Package：Standard Export Wooden Box
• Specification：ISO, SGS
• Trademark：HV Hipot
• Origin：Wuhan, China
• Production Capacity：5000set,Year

Basic Info.

Model NO. GDSL-5000D Weight 100-500Kg Power Source AC220V product name 5000A Primary Current Injection Test Set Output Voltage 6V Input voltage AC380V, Single phase, 50Hz. Timer range 0.001-99999ms Capacity 30kVA Warranty 1 year Transport Package Standard Export Wooden Box Specification ISO, SGS Trademark HV Hipot Origin Wuhan, China Production Capacity 5000set/Year

Product Description

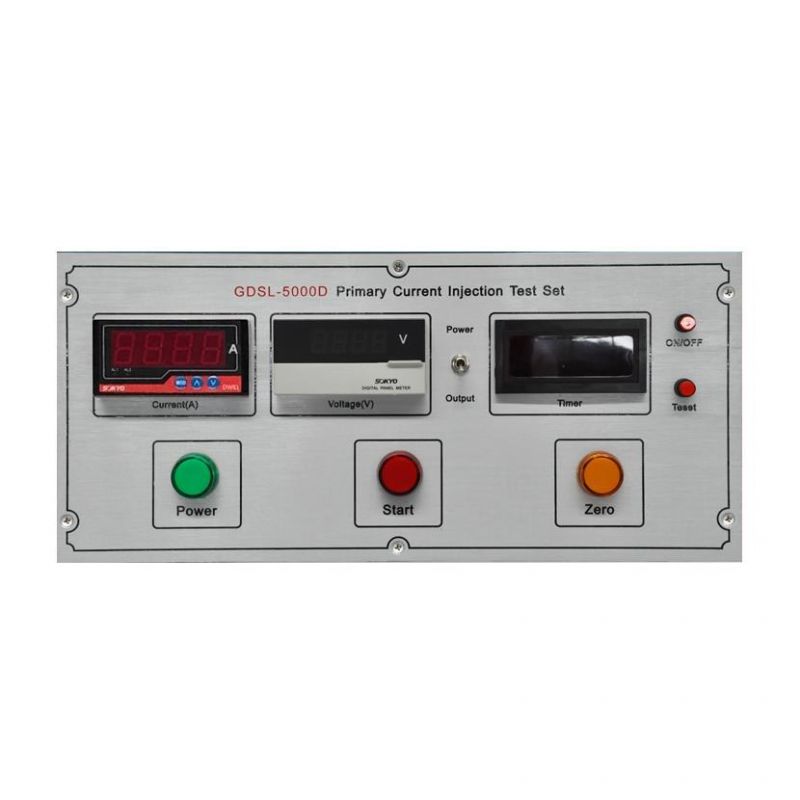

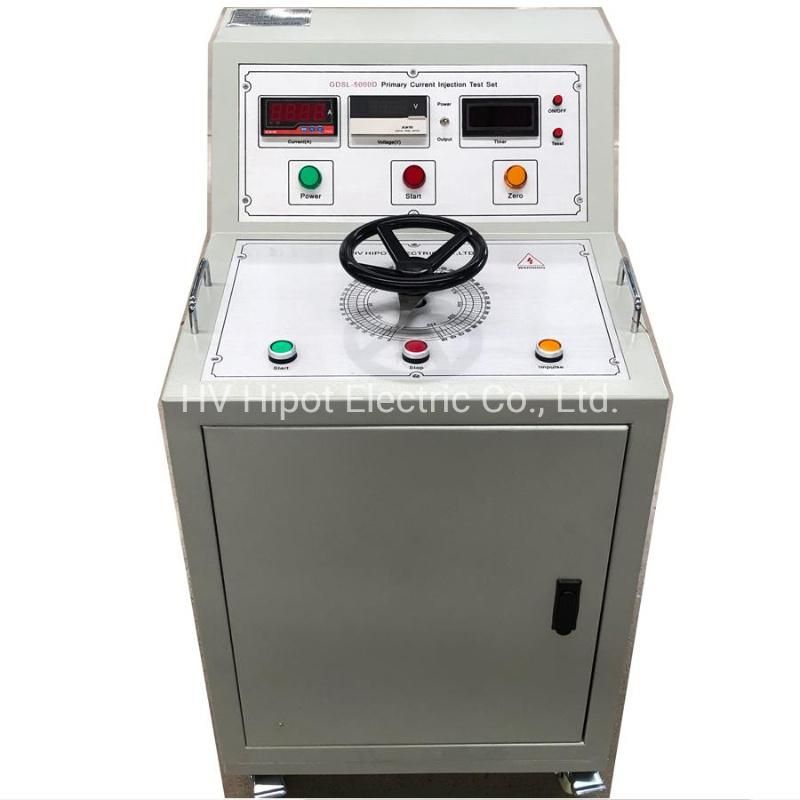

GDSL-5000D Primary Current Injection Test Set



I. General Information

GDSL-5000D Primary Current Injection Test Set, is the ideal equipment for testing high-current device in the power and electric industry, used in power plants, distribution stations, electrical manufacturing and research institutes, with the features of small size, light weight, easy to use and maintenance.


II. Features

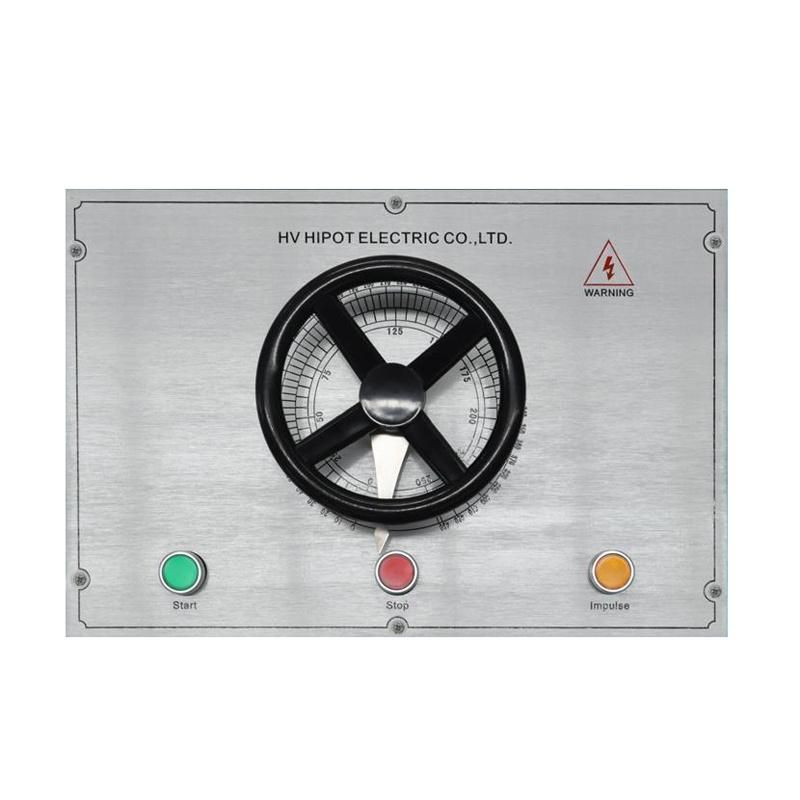

1. Manual control.
2. Equipment with wheels, easy to move.
3. Customized current output, current output is adjustable.
4. With timer to timing the action time of circuit breaker. (customized)
5. Suitable for all kinds of circuit breakers, current relays.

 III. Specifications

1. Output current: 0-5000A AC.
2. Output Voltage: 6V.
3. Capacity: 30kVA.
4. Input voltage: AC380V, Single phase, 50Hz.
5. Input current: 78.9A
6. Operating time: 1min ON, 5mins OFF
7. Timer range: 0.001-99999ms
8. Ambient temperature: -20 ºC to 50 ºC.
9. Current accuracy: ≤ 1.5% (F.S.)

IV. Packing List

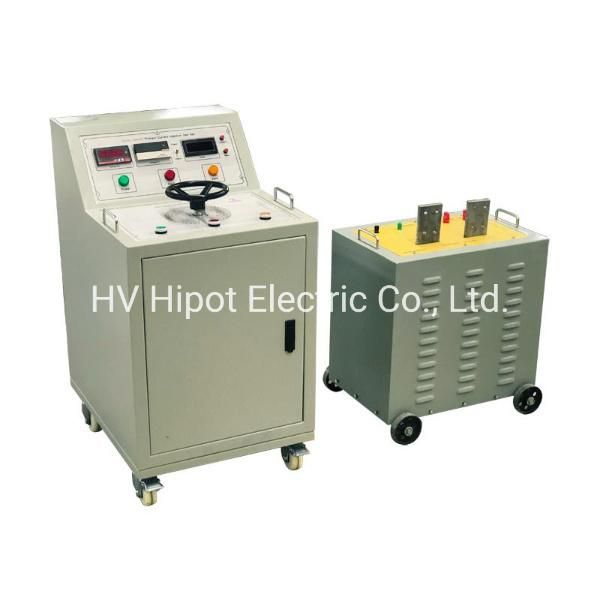

Control unit                           1 piece
Current source (DDK)                  1 piece
Larger current cable                    2 pcs
Output cable from control unit(2-core)    1 piece
Metering cable(2-core)                 1 piece
Ground cable                         1 piece
Contact signal cable                   1 piece
Power cable                          1 piece
User's guide                          1 piece
Factory test report                     1 piece
