Helmet Temperature Humidity Testing Chamber

Dongguan Hong Tu Instrument Co., Ltd.
  • Type：Temperature Humidity Testing Machine
  • Accuracy Grade：0.5
  • Display：Digital
  • Control：PLC Control
  • Weight：100-500Kg
  • Power Source：AC220V

Base Info

  • Model NO.：HT-5013-C
  • Product Name：Helmet Temperature Humidity Testing Chamber
  • Testing Standard：ECE R22.05
  • Temperature Range：-20 ~100
  • Humidity Range：20~98%Rh
  • Temperature Error：+,-2.5%
  • Temperature Uniformity：+,-0.5
  • Humidity Uniformity：+,-3%
  • Interior Dimension：600*800*800mm
  • Exterior Material：1100*1850*1250mm
  • Electricity：220V 50Hz
  • Transport Package：Wooden Case
  • Trademark：HOTOTECH
  • Origin：Dongguan
  • HS Code：9013809000
  • Production Capacity：100 Sets Per Month

Description

SystemBalanced temperatuare and humidity control systemTemperature range-20ºC to +100ºCHumidity range20 to 98% RHTemperature error±0.3ºCHumidity error ±2.5%Temperature uniformity±0.5ºC/±0.7ºCHumididty uniformity±3%Time for heating up-20ºC to +100ºC within 30 minutesTime for cooling down+20 to -20ºC within 45 minutesInterior dimension600×800×800mmExterior dimension1100×1850×1250mmInterior and exterior materialStainless steel plateInsulation materialrigid polyurethane foamRefrigeration system Air cooled, hermetic compressor , single stage refrigeration systemElectricity220V 50HZ

Testing Machines pictures display

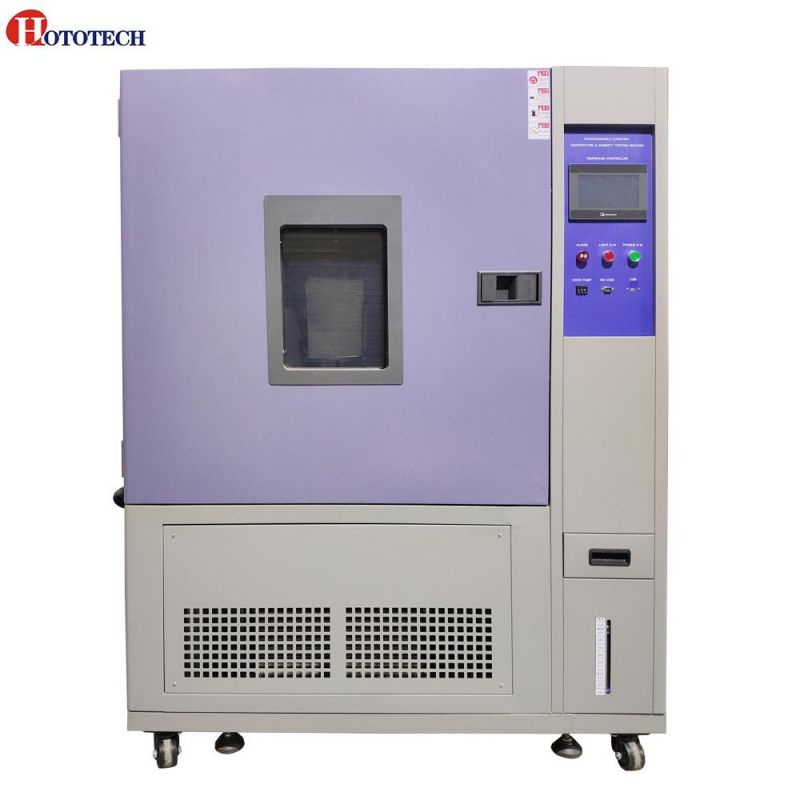

Helmet Temperature Humidity Testing Chamber

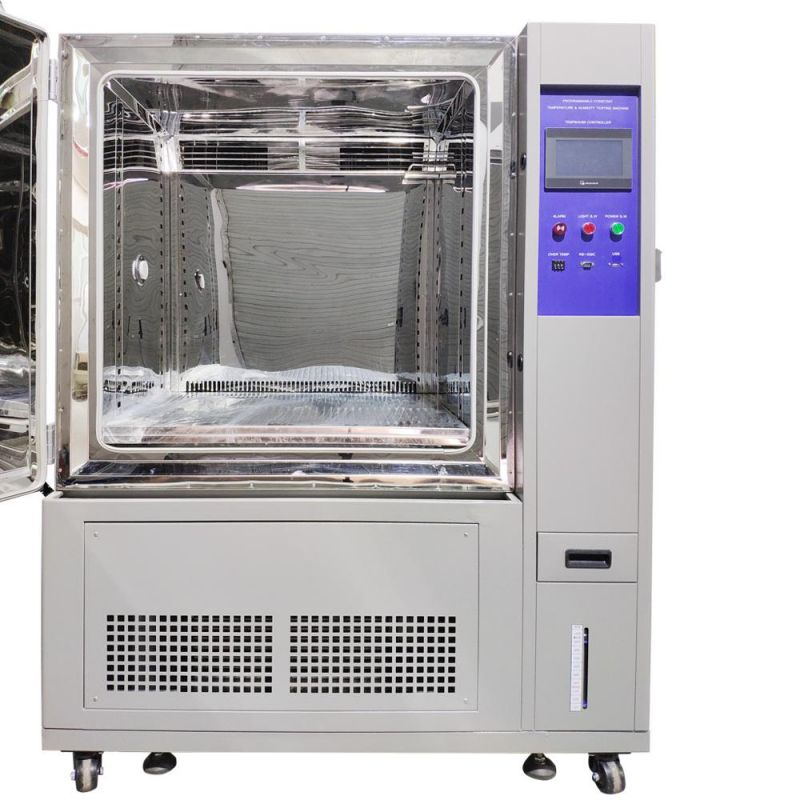

Helmet Temperature Humidity Testing Chamber
