GDJW-40B Wireless Insulator Tester for laboratory detection of the suspended insulator

HV Hipot Electric Co., Ltd.
  • Type：insulator tester
  • Accuracy Grade：1
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load
  • Display：Digital
  • Control：Computer Control

Base Info

  • Model NO.：GDJW-40B
  • Weight：1kg
  • Power Source：AC220V
  • Working voltage：35 - 1000kV
  • Voltage measurement range：0 - 40kV
  • Measurement error：≤±1%
  • Resolution：0.01kV
  • Sampling rate：10 times,second
  • Working temperature：-35ºC---+60ºC

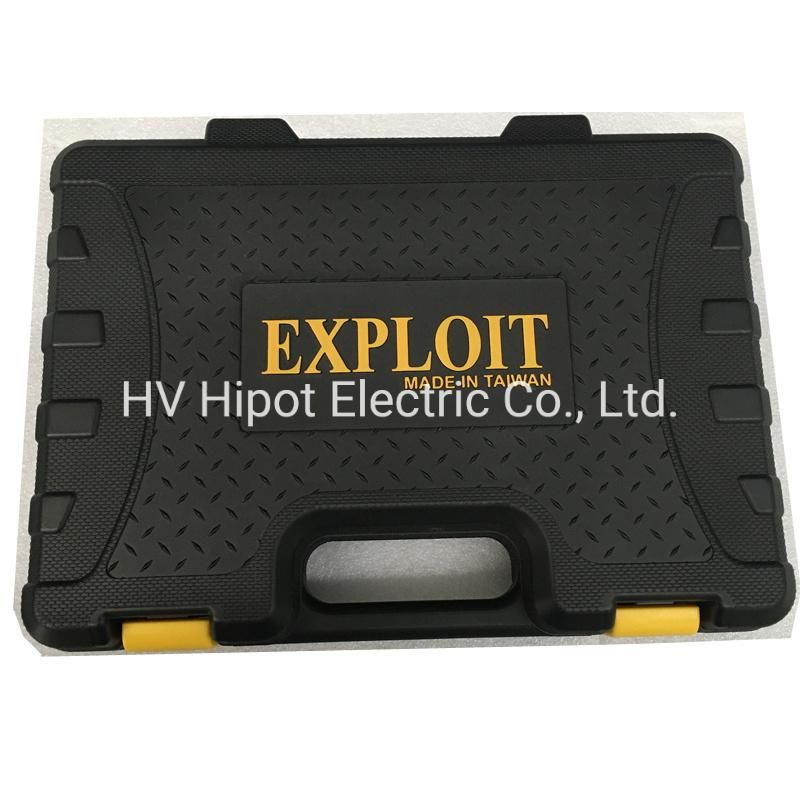

  • Transport Package：Standard Export Wooden Box
  • Specification：400*315*135mm
  • Trademark：HV Hipot
  • Origin：Wuhan, China
  • HS Code：9030899090

Description

Working voltage

0-40kV (special voltage can be customized)

Voltage measurement range

0 - 40kV (can be customized)

Measurement error

≤±1%

Resolution

0.01kV

Sampling rate

10 times/second

Working current

≤ 120mA (for hand-held terminal), ≤ 40mA (for detector)

Power supply

2pcs 1.5V AA size dry battery (for hand-held terminal)

2pcs 1.5V AAA size dry battery (for detector)

Working time

More than 12 hours (continuously)

Detector and handheld terminal line-of-sight transmission distance

≤100m(full power)

Display

LCD display, legible in the sunlight.

Working temperature

-35ºC---+60ºC

Storage temperature

-40ºC---+65ºC

Relative humidity

≤ 90%RH (no condensing)

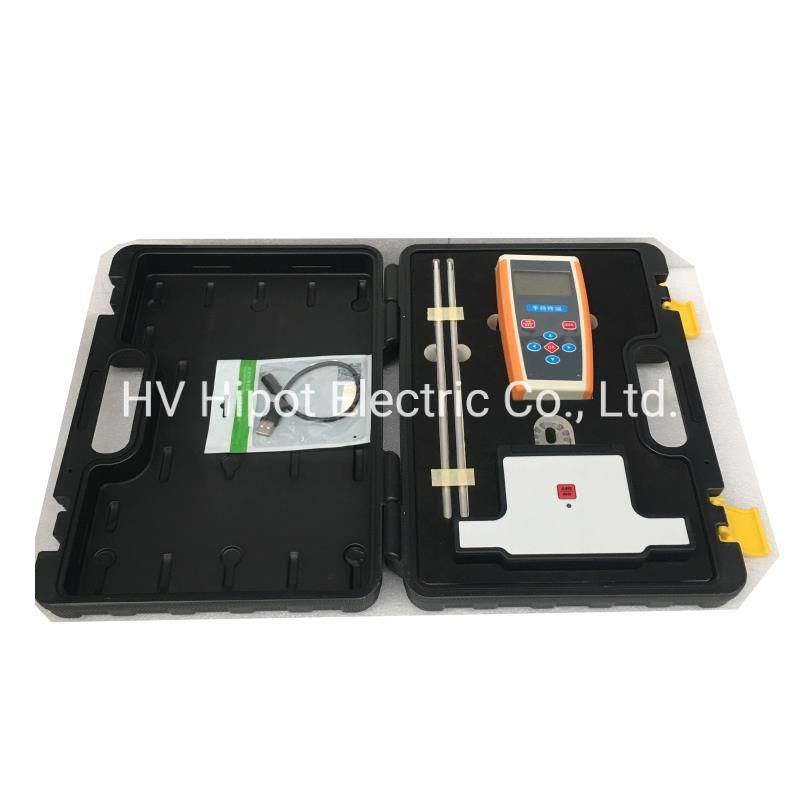

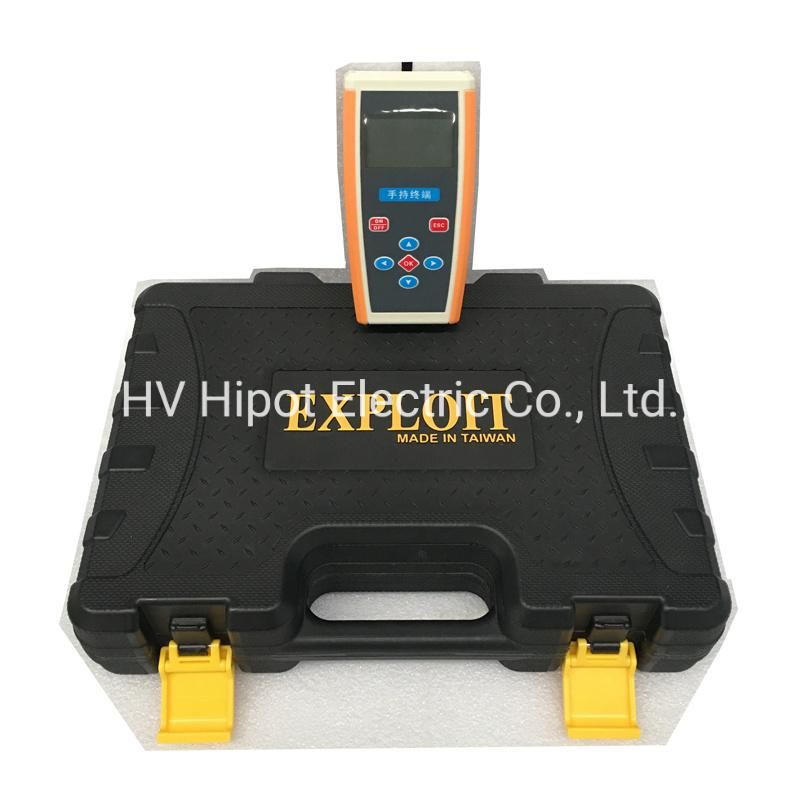

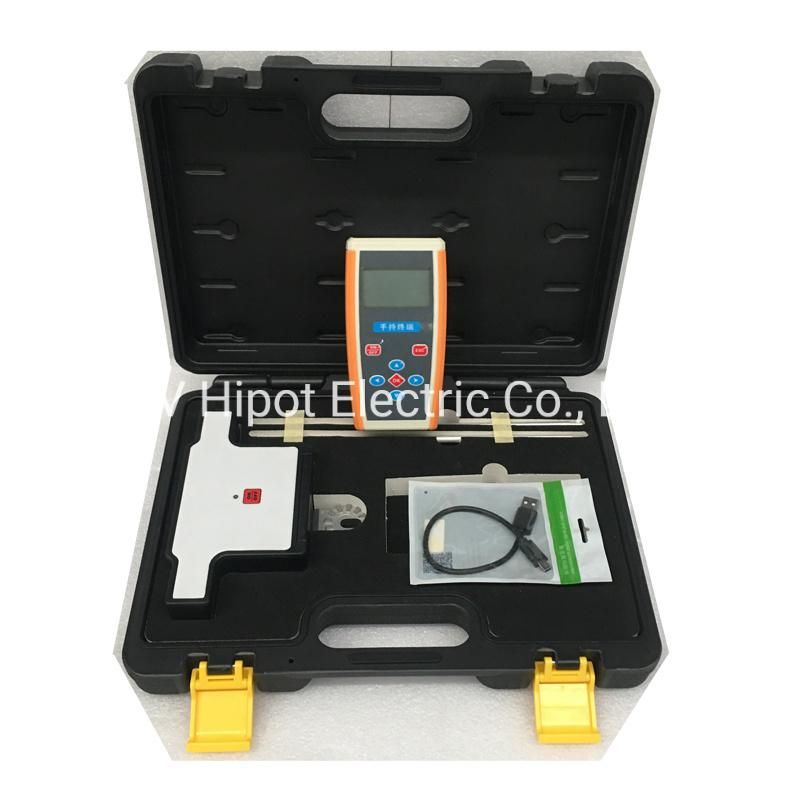

IV. Product Details
GDJW-40B Wireless Insulator Tester for laboratory detection of the suspended insulator
GDJW-40B Wireless Insulator Tester for laboratory detection of the suspended insulatorGDJW-40B Wireless Insulator Tester for laboratory detection of the suspended insulatorGDJW-40B Wireless Insulator Tester for laboratory detection of the suspended insulator


GDJW-40B Wireless Insulator Tester for laboratory detection of the suspended insulator

GDJW-40B Wireless Insulator Tester for laboratory detection of the suspended insulator
GDJW-40B Wireless Insulator Tester for laboratory detection of the suspended insulator
GDJW-40B Wireless Insulator Tester for laboratory detection of the suspended insulator
GDJW-40B Wireless Insulator Tester for laboratory detection of the suspended insulator
