Constant Temperatuare and Humidity Environment Testing Chamber for Helmet Preconditioning Testing

Dongguan Hong Tu Instrument Co., Ltd.
  • Max Diameter of Workpiece：Without
  • Mass Scope of Workpiece：Without
  • Type：Temperature Humidity Testing Machine
  • Maxcapacity：Without
  • Accuracy Grade：0.5
  • Load Way：Without

Base Info

  • Model NO.：HT-5013-C2M
  • Loading Method：Without
  • Display：Touch Screen Show
  • Control：PLC Control
  • Weight：100-500Kg
  • Power Source：AC220V
  • Oil Cylinder Position：Without
  • Product Name：Temperatuare and Humidity Environment Chamber
  • Function：It′s Use Helmet′s Temperature and Humidity Testing
  • Material：Stainless Steel
  • Delivery：30 Wrok Days
  • Temperature Range：-20~100 Degree
  • Humidity Range：20 to 98% Rh
  • Chamber Material：Stainless
  • Display Ways：Touch Screen
  • Power：380V 60Hz
  • Chamber Size：Customized
  • Transport Package：Wooden Case
  • Specification：Constant temperatuare and humidity environment tes
  • Trademark：HOTOTECH
  • Origin：Dongguan
  • HS Code：9013809000
  • Production Capacity：50 Sets Per Month

Description

Product NameConstant temperature and humidity environment testing chamber for helmet preconditioning testingTesting standard It's conform all testing standardTemperature range-20ºC to +100ºCHumidity range20 to 98%RHTemperature accuracy±0.3%Humidity accuracy±2.5%Temperature uniformity±0.5ºC/±0.7ºCHumidity uniformity±3%Time for heating up-20ºC up to +100ºC within 35 minutesTime for cooling down+20 down to -20ºC within 45 minutes Interior dimension50×75×60cmExterior dimension102×162×118cmInterior and exterior dimension 102×162×118cmInsulation materialRigid polyurethane foam Refrigeration systemAir cooled, hermetic compressor, single stage refrigeration systemAccessoriesViewing window shelves, can be adjusted up and down 2 pcs, one cable port (diameter 50mm), chamber lampElectricty380V 60HZ

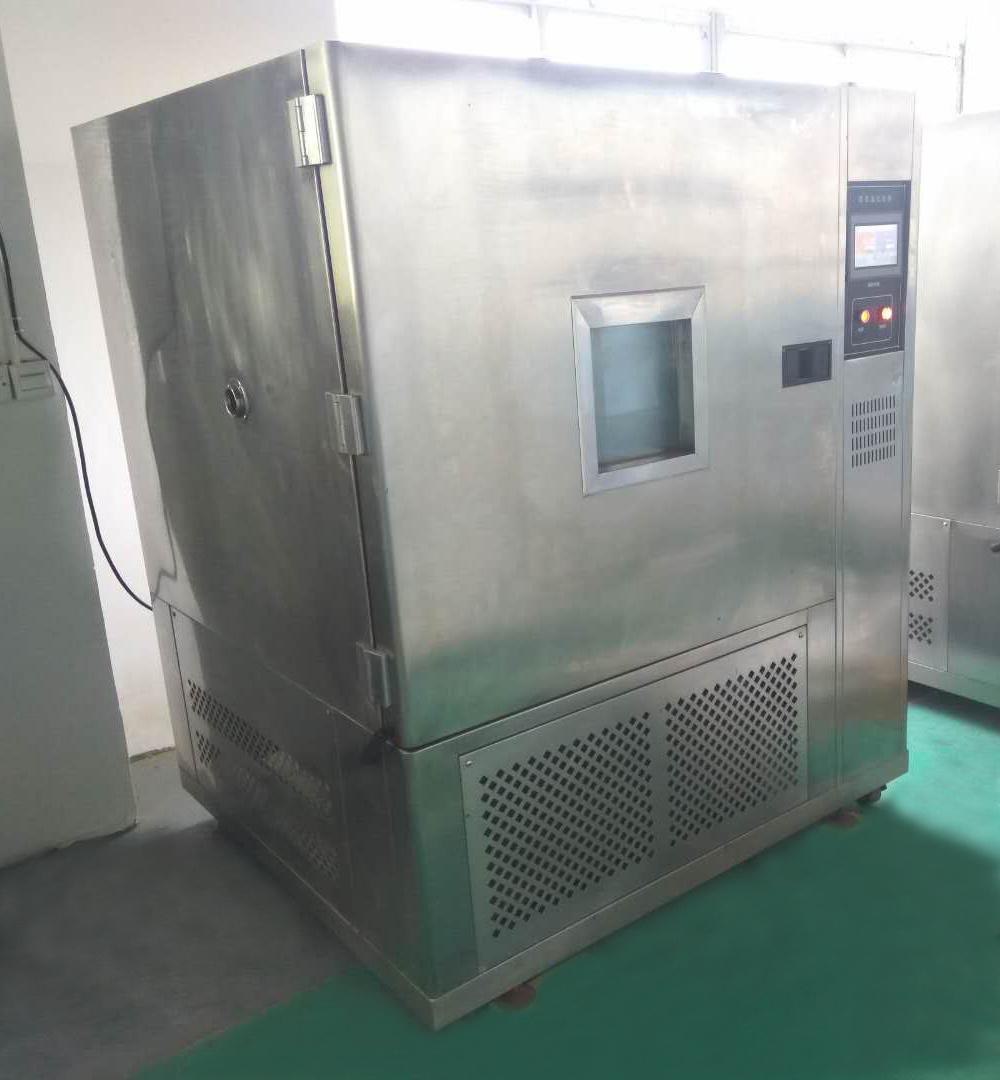

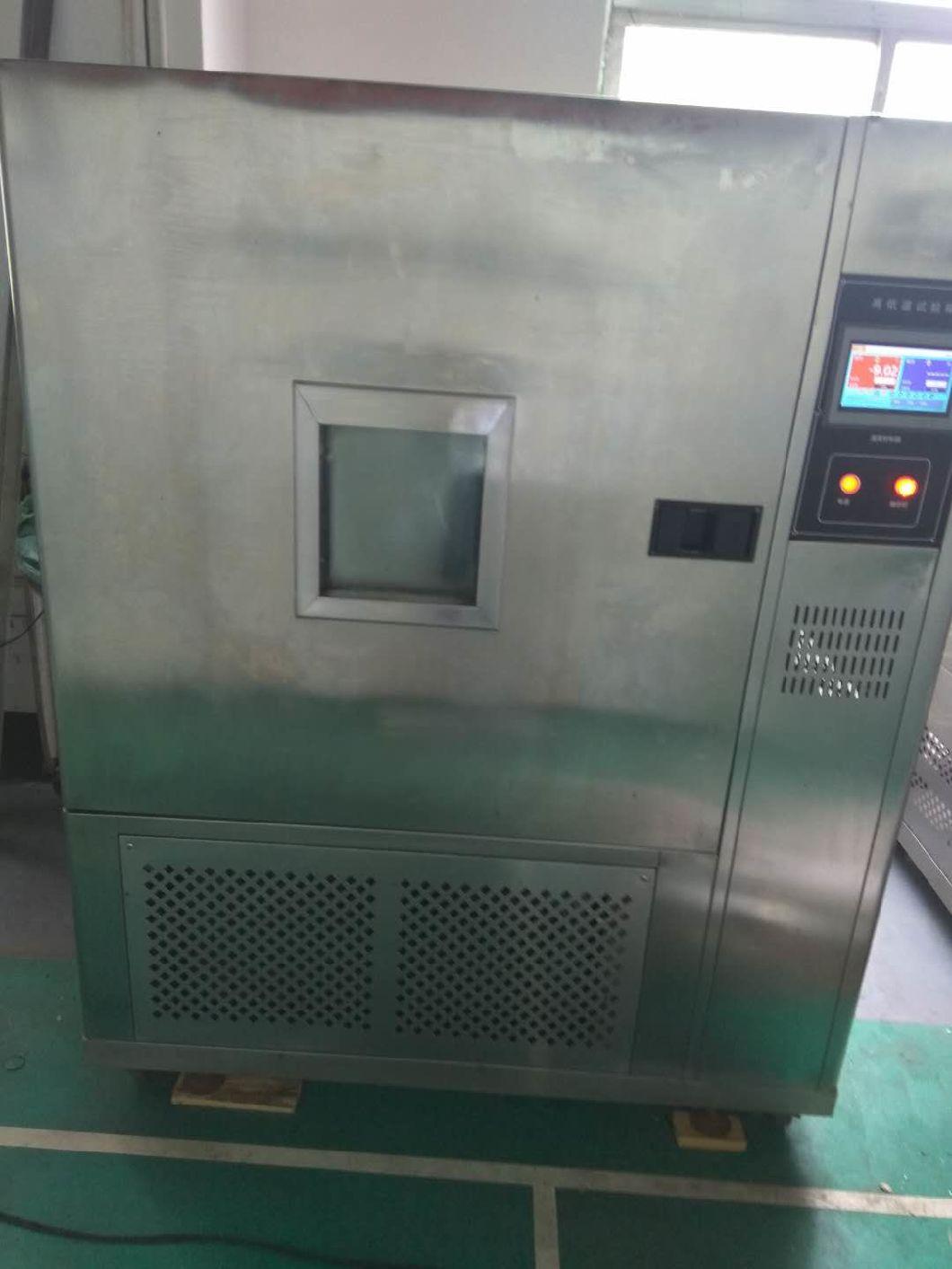

Testing machine's images show

Constant Temperatuare and Humidity Environment Testing Chamber for Helmet Preconditioning Testing

Constant Temperatuare and Humidity Environment Testing Chamber for Helmet Preconditioning Testing

Package Lists
Constant Temperatuare and Humidity Environment Testing Chamber for Helmet Preconditioning Testing
