• Flame Height：Can Be Adjusted
• The Diameter of The Flame Temperature Me：1.5mm
• Burner Height：30mm
• Continuing Time：(000.0 ~ 999.99) Seconds
• Smouldering Time：(000.0 ~ 999.99) Seconds
• Combustion Medium：Propane
• Transport Package：Carton
• Specification：715X570X1000mm
• Trademark：Darong
• Origin：China
• HS Code：9024800000
• Production Capacity：2000PCS

Basic Info.

Flame Height Can Be Adjusted The Diameter of The Flame Temperature Me 1.5mm Burner Height 30mm Continuing Time (000.0 ~ 999.99) Seconds Smouldering Time (000.0 ~ 999.99) Seconds Combustion Medium Propane Transport Package Carton Specification 715X570X1000mm Trademark Darong Origin China HS Code 9024800000 Production Capacity 2000PCS

Product Description

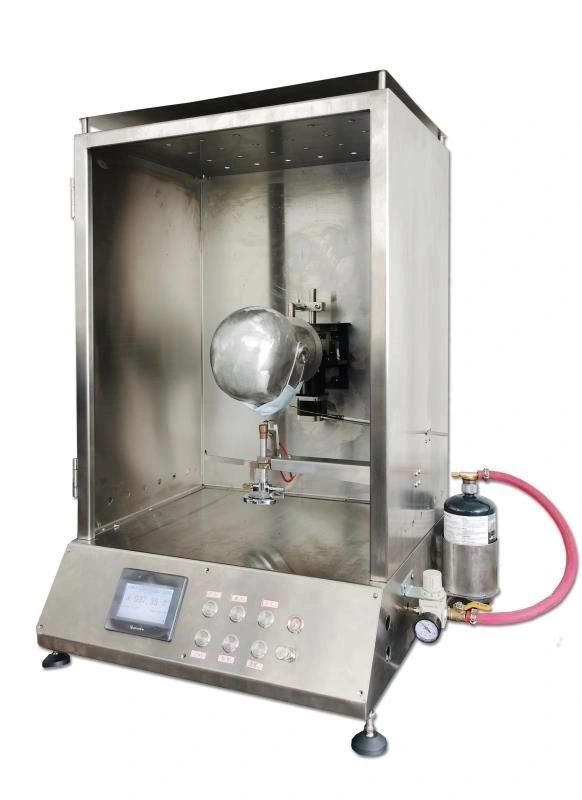

YG(B)815F Face mask flammability tester












[Scope of application] :
Used to test the combustion performance of medical masks after contact with flame at a certain linear speed (circular method)
[Relevant standards] :
GB 19083-2010 Technical Requirements for Medical Protective Masks 5.9 Flame retardant performance
GB 2626-2019 Self-priming filter anti-particulate respirator 6.15 ignitability
YY 0469-2011 Medical Surgical Masks 5.8 Flame retardant performance
[Instrument characteristics] :
1. Color touch screen control, all stainless-steel manufacturing, the experimental cabin door is made of high temperature resistant, explosion-proof glass, protect
Certificate test security;
2. The gas supply system microcomputer program control, with two kinds of gas source connection mode, can be connected with household gas;
3. Using imported air source valve, heat sensor, spark generator, stable and accurate test;
4. Ignition device for automatic ignition, flame size and height can be adjusted according to need.

Parameter
1. The linear velocity of the nose tip of the head mold is (60±5) mm/s; [(10 ~ 120) mm/s can be set]
2. Timing mode: manual mode and automatic mode, automatic timing position can be adjusted
3. Flame height can be adjusted (factory adjustment in 40±4mm)
4. The diameter of the flame temperature measuring probe is 1.5mm
5. The flame from the top of the burner height is (20±2) mm temperature is (800±50) ºC
6. The distance between the top of the burner and the lowest point of the mask is (20±2) mm
7. Burner height: 30mm (20 ~ 50mm adjustable)
8. Metal head mold than a certain system, flame resistance
9. Continuing time and smouldering time timer: (000.0 ~ 999.99) seconds, accuracy: ±0.1 seconds
10. Combustion medium: propane
11. Working power supply: AC220V±10% 50Hz 80W
12. Overall size :(715×570×1000)mm
13. Weight: about 50kg

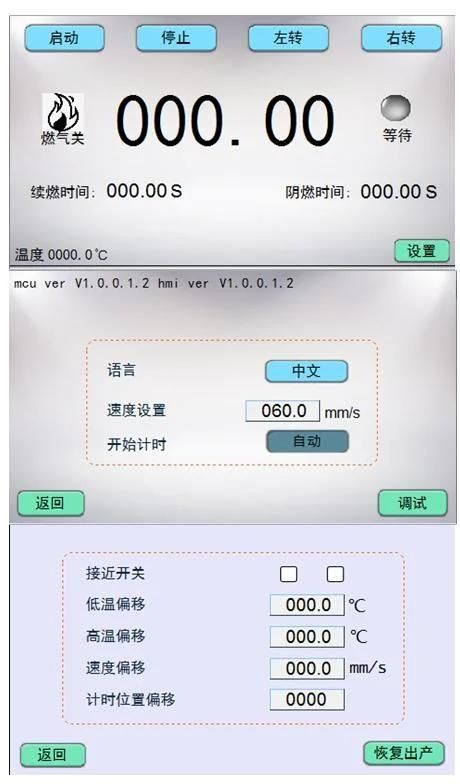

[Interface Example] :
