• Model NO.：STYE-1000
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Manual Control
• Weight：850
• Power Source：AC380V
• Oil Cylinder Position：Under
• Max. Testing Power：1000kn
• Measuring Range：0-1000kn
• Testing Power Precision：Grade1
• Size of The Bearing Plate：300X250mm
• Max. Distance Between The up and Down Be：310mm
• Max. Piston Stroke：90mm
• Outside Size：900X400X1090mm
• Max. Piston Lift Speed：50mm,Min
• Piston Free Back Speed：20mm,Min
• Net Weight：850kgs
• Transport Package：Wooden Case
• Specification：950x400x1160mm
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STYE-1000 Accuracy Grade 1 Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Manual Control Weight 850 Power Source AC380V Oil Cylinder Position Under Max. Testing Power 1000kn Measuring Range 0-1000kn Testing Power Precision Grade1 Size of The Bearing Plate 300X250mm Max. Distance Between The up and Down Be 310mm Max. Piston Stroke 90mm Outside Size 900X400X1090mm Max. Piston Lift Speed 50mm/Min Piston Free Back Speed 20mm/Min Net Weight 850kgs Transport Package Wooden Case Specification 950x400x1160mm Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

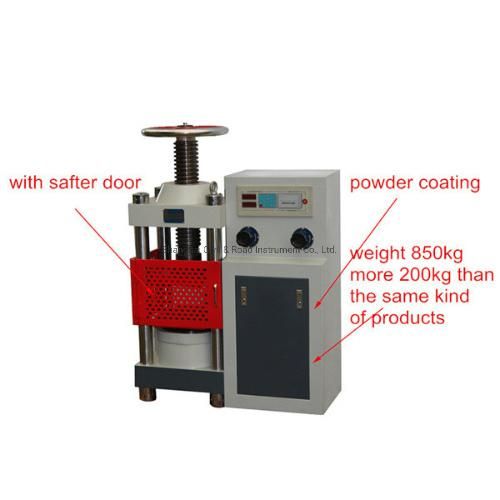

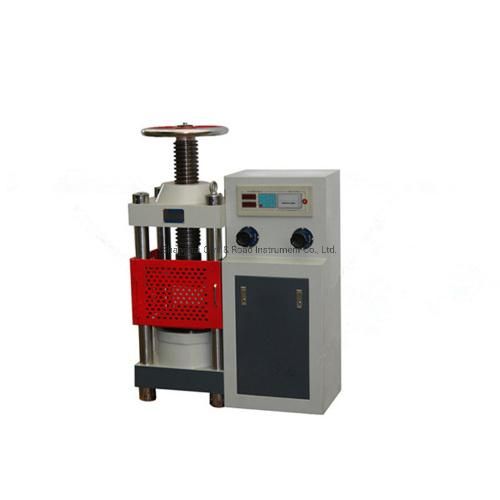

STYE-1000 Digital Display Hydraulic Compression Testing Machine CTM (Equip Safety Guard)

STANDARD: EN 12390-4 ASTM C39, AASHTO T22
Use:
STYE-2000 Digital Display Hydraulic Compression Testing Machine is designed to conduct compression and crushing strength tests on Containers, Concrete cubes,cylinders, hollow blocks and various other materials in accordance with International standard. The machine is electro-hydraulically operated. The Control Panel comprises of Hydraulic Power Pack, Digital Readout System, Operating Switches, Load Control Valves, Output Print-out of Test Data.

Feature:
Efficient hydraulic power packs
Economic machines ideal for site use Designed to meet the need for a simple, economic and reliable means of testing concrete.
The dimensions of the frame allow the testing of cylinders up to 320 mm long x 160 mm diameter, and cubes 200mm,150mm or 100 mm square, 50 mm/2 in. square mortar cubes, 40 x 40 x 160 mm mortar and any arbitrary size.
Digital readout is a microprocessor controlled instrument which is fitted as standard to all digital machines in the range.
Calibrated accuracy and repeatability is better than 1% over the upper 90% of the working range.

Specification:

Model	STYE-1000
Max. testing power	1000kN
Measuring range	0-1000kN
Relative indication error	±1%
Testing power Precision	grade1
Size of the bearing plate	300×250mm
Max. distance between the up and down bearing plates	310mm
Max. piston stroke	90mm
Rated pressure of the hydraulic pump	40MPa
Power	AC220V±10% or AC380±10%
Outside size	900×400×1090mm
Max. piston lift speed	50mm/min
Piston free back speed	20mm/min
Net weight	650KGS
Noise	≤80Db
