• Model NO.：GD-510G
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Transport Package：Wooden Case
• Specification：620mm*460mm*355mm
• Trademark：GOLD
• Origin：China
• Production Capacity：200units,Month

1. Power supply: AC 220 V±10%, 50 Hz;

2. Temperature control of chamber:

(1) Two cooling baths in one chamber.

(2) Range: Ambient to -70 ºC. Accuracy: ±0.5 ºC. The temperatures are the same.

3. Refrigeration system:  refrigeration compressor4. Ambient temperature: ≤30 ºC5. Relative humidity: ≤85%6. Maximum power consumption: 1000 W7. Dimension:620mm×460mm×355mm

I. Main technical features

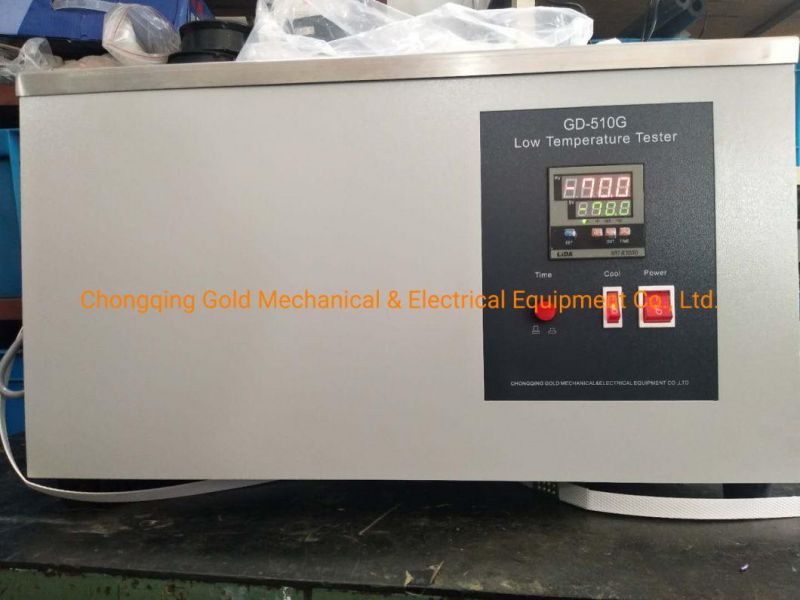

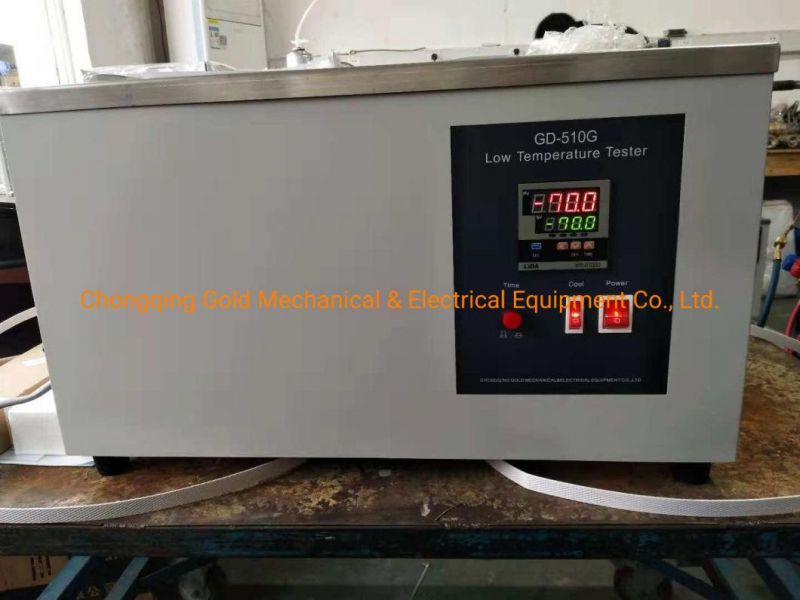

 Solidifying point tester for petroleum products

1. The material of workbench is stainless steel. It has two cooling baths in one chamber. The two cooling baths are the same in temperature.



2. It adopts a new type compressor and advanced digital temperature controller. The cooling rate is fast and efficiency is high.

 The temperature in cooling bath is uniform and it can reach -70ºC. The control precision is ±0.5ºC.



3. The instrument adopts bench structure. The design is simple and easy to use. The filter for cold filter plugging point test is provided.

Operator can do both solidifying point test and cold filter plugging point test as long as buying this equipment.



Low temperature tester series



ParameterGD-510-1GD-510GGD-510DGD-510F1StandardsASTM D852ASTM D852ASTM D97,ASTM D2500ASTM D97,ASTM D2500Test Parameterssolidifying pointsolidifying pointpour point and cloud point pour point, cloud point, solidifying point and cold filter plugging point Full scaleRoom temp.~-30ºCAmbient to -70ºC (1) Chamber I: Ambient to -51 ºC, ±1 ºC, temperatures of two cooling baths the same.
(2) Chamber II: Ambient to -70 ºC, ±1 ºC, temperatures of two cooling baths the same. (1) Chamber I: 0 ºC, ±0.5 ºC, temperatures in two cold baths are the same.
  (2) Chamber II: 0 ºC, -17 ºC, ±0.5 ºC, temperatures in two cooling baths are the same.
  (3) Chamber III: -17 ºC, -34 ºC, ±0.5 ºC,temperatures in two cooling baths are the same.
  (4) Chamber IV: Ambient to -70 ºC, ±0.5 ºC, temperatures in two cooling baths are the sameTemperature controlling accuracy ±0.5ºC±0.5ºC ±1ºC ±0.5ºCStructure Two baths in one chamberTwo test baths in one chamberEight test baths in 4 chamberEight test baths in 4 chamber

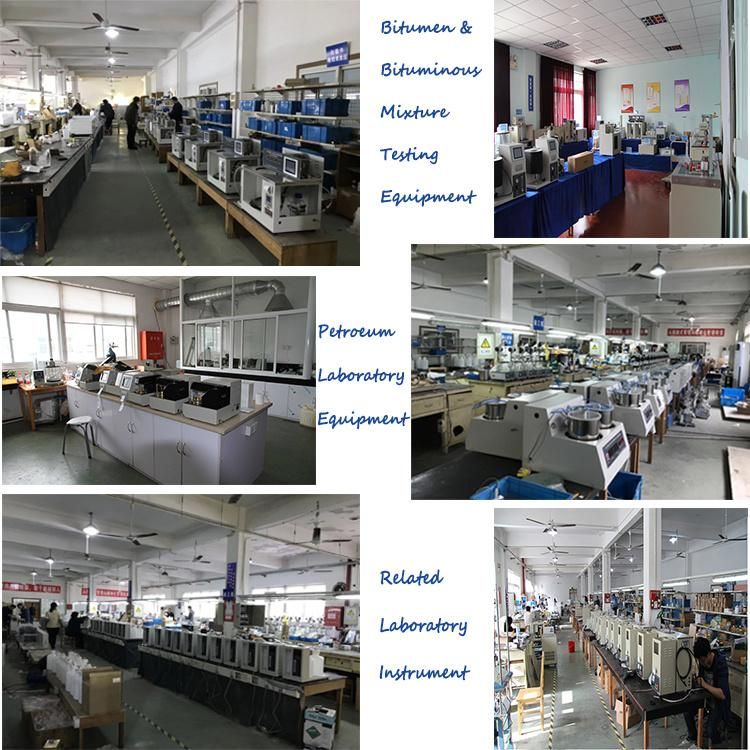

Workshop

Chongqing Gold Mechanical&Electrical Equipment Co.,Ltd is a professional manufacturer of Petroleum Products test kits and

electrical testing equipment in China.Our products are sold to most countries in the world and they are highly popular because our good
quality and after-sale service.



At present, there are more than 150 employees, of whom more than 70% are technical personnel with college

degree or above.With strong technical force and strong development, new products have been launched continuously.


Exhibition



We have developed sales channels in many countries such as UAE, Saudi Arabia, Iran, Malaysia, Thailand, Pakistan,

India, Germany, Belgium, USA, Mexico, Kenya, Nigeria, South Africa and other countries worldwide. And we have

gained strong advantage and high reputation in international market.

After several years' development, our products have become high intelligent and wide coverage.
And our company has become one of the leading manufacturer of petroleum testing instrument and electrical testing

instrument.

Packing

Goods are packed in veneer case, which is firm and safe for oversea shipment.
