• Model NO.：GD-4929A
• Production Capacity：100 Sets, Month

Basic Info.

Model NO. GD-4929A Production Capacity 100 Sets/ Month

Product Description

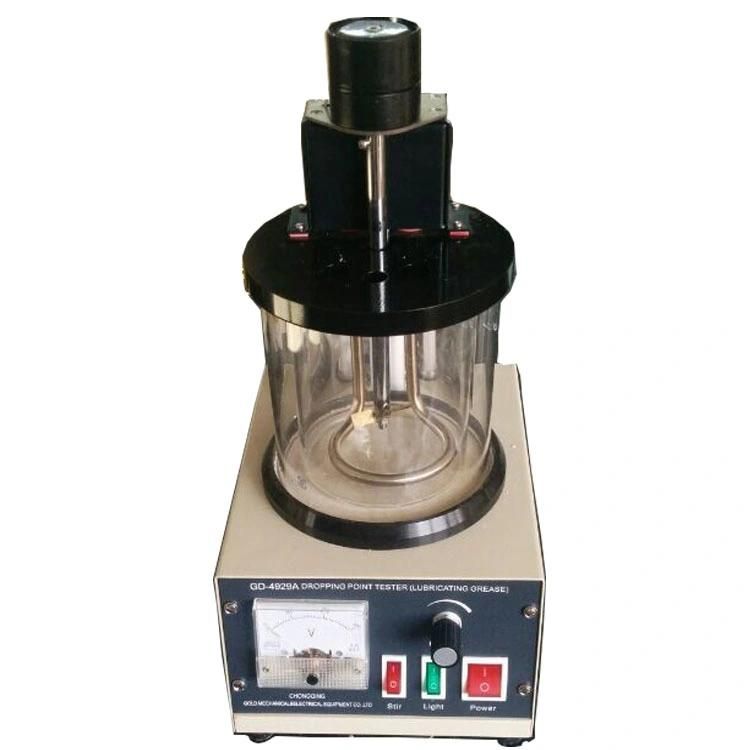

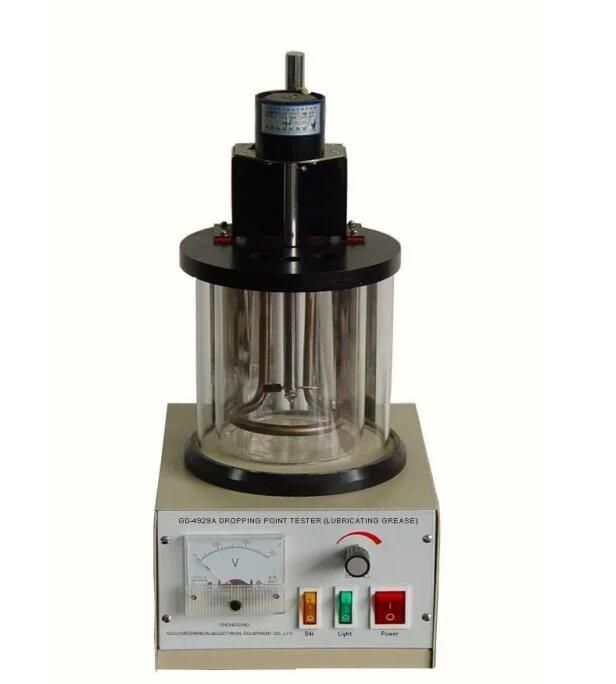

Automatic Lubricating Grease Dropping Point Test Machine ASTM D566

ASTM D566, Standard test method for dropping point of lubricating grease, ASTM international


I.Summary
  Our instrument lubricating grease dropping point tester is designed and made as per ASTM D566 for lubricating grease.
Easy to operate.


II. Main technical features
1. The oil bath is composed of heat resistant beaker, heater and electric motor. The heating power can be adjusted continuously. The temperature in oil bath is uniform.

2. Desktop structure. Easy to operate.


III.Main structure
The grease dropping point tester is mainly composed of oil bath, temperature preservation aquarium, heater, stirrer, light, and controlling case. It can control the heating speed conveniently, observe the grease drops clearly, and it can do dropping test in double test tubes simultaneously.


IV. Main technical specifications

1	Power supply	AC 220 V±10%, 50 Hz
2	Oil bath	600 ml beaker.
3	Grease cup	Made of chrome plated brass. Its inner diameter is about 9.92 mm and the diameter of orifice for dropping oil is 2.8 mm. The height of the cup is about 12 mm.
4	Test tube	A tube made of heat-resistant glass with rim. Its inner diameter is 11.1 mm to 12.7 mm. There are three indentations at about 19 mm from the bottom, equally spaced on the circumstance. These indentations are used for supporting the grease cup.
5	Thermometer	-5ºC~300 ºC,scale value is 1 ºC. Its total length is 390 mm and the depth immersed is about 76 mm
6	Heater	Tubular. Power 800 W.
7	Stirring motor	Rotating speed 60 RPM
8	Ambient temperature	-10ºC~+40 ºC
9	Relative humidity	≤85%
10	Maximum power consumption	900 W
11	Dimension	350mm×180mm×410mm

V. Petroleum & Oil Analyzer Petroleum Testing Instruments
Open Cup Flash Point Tester
Flash & Fire Point Tester for Petroleum Products
Closed Cup Flash Point Tester
Engler Viscometer
Water Content Tester
Rotational Viscometer
Kinematics Viscometer
Distillation Tester
Density Tester
Rust and Corrosion Tester
Sulphur Content Tester
Acid and Alkali Tester
Dropping Point Tester
Demulsibility Characteristics Tester
Ash Content Tester
Aniline Point Tester
Low Temperature Tester(Including solidifying point, cold filter plugging point, pour point, cloud point, and freezing point)
Residue Carbon Tester
Existent Gum Tester
Vapor Pressure Tester
Bomb Calorimeter
OCTANE & CETANE ANALYZER
Lubricating Oils Foaming Characteristics Tester
Petroleum Products Color Tester
Petroleum Wax Oil Content Tester
Automatic Interfacial Tension Tester
Liquid Petroleum Products Hydrocarbon Tester
Lubricating Oil Air Release Value Tester
Petroleum Products and additives Mechanical impurities tester
